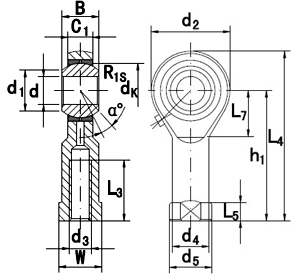

PHS Rod End Catalogue list
| Other Bearing No. | Dimensions | Load ratings | ||||||||||||||||||||||
| SPEC.1 | SPEC.2 | SPEC.3 | SPEC.4 | SPEC.5 | SPEC.6 | SPEC.7 | d | d1 | d2 | d3 | B | C1 | L3 | W | h1 | L4 | L5 | d4 | d5 | dk | a | Cr | Cor | Mass |
| PHS4 | SIKAC4M | GIKF4PB | KI4-NIRO | TSF4 | BNF4 | 4 | 6.5 | 14 | M4x0.7 | 7 | 5.25 | 8 | 8 | 24 | 31 | 4 | 8 | 9.5 | 9.525 | 13 | 3 | 5 | 0.00 | |
| PHS5 | SIKAC5M | GIKF5PB | KI5-NIRO | SIBP5S | TSF5 | BNF5 | 5 | 7.7 | 16 | M5x0.8 | 8 | 6 | 10 | 9 | 27 | 35 | 4 | 8.5 | 11 | 11.11 | 13 | 3.25 | 5.7 | 0.016 |
| PHS6 | SIKAC6M | GIKF6PB | KI6-NIRO | SIBP6S | TSF6 | BNF6 | 6 | 8.96 | 18 | M6x1.0 | 9 | 6.75 | 12 | 11 | 30 | 39 | 5 | 10 | 13 | 12.7 | 13 | 4.3 | 7.2 | 0.022 |
| PHS8 | SIKAC8M | GIKF8PB | KI8-NIRO | SIBP8S | TSF8 | BNF8 | 8 | 10.4 | 22 | M8x1.25 | 12 | 9 | 16 | 14 | 36 | 47 | 5 | 12.5 | 16 | 15.875 | 14 | 7.2 | 11.6 | 0.047 |
| PHS10 | SIKAC10M | GIKF10PB | KI10-NIRO | SIBP10S | TSF10 | BNF10 | 10 | 12.9 | 26 | M10x1.5 | 14 | 10.5 | 20 | 17 | 43 | 56 | 6.5 | 15 | 19 | 19.05 | 13 | 10 | 14.5 | 0.077 |
| PHS10-1 | SIKAC10-1M | GIKF10-1PB | KI10-1-NIRO | SIBP10S/B1 | TSF10-1 | BNF10-1 | 10 | 12.9 | 26 | M10x1.25 | 14 | 10.5 | 20 | 17 | 43 | 56 | 6.5 | 15 | 19 | 19.05 | 13 | 10 | 14.5 | 0.077 |
| PHS12 | SIKAC12M | GIKF12PB | KI12-NIRO | SIBP12S | TSF12 | BNF12 | 12 | 15.4 | 30 | M12x1.75 | 16 | 12 | 22 | 19 | 50 | 65 | 6.5 | 17.5 | 22 | 22.225 | 13 | 13.4 | 17 | 0.1 |
| PHS12-1 | SIKAC12-1M | GIKF12-1PB | KI12-1-NIRO | SIBP12S/B1 | TSF12-1 | BNF12-1 | 12 | 15.4 | 30 | M12x1.25 | 16 | 12 | 22 | 19 | 50 | 65 | 6.5 | 17.5 | 22 | 22.225 | 13 | 13.4 | 17 | 0.1 |
| PHS14 | SIKAC14M | GIKF14PB | KI14-NIRO | SIBP14S | TSF14 | BNF14 | 14 | 16.9 | 34 | M14x2.0 | 19 | 13.5 | 25 | 22 | 57 | 74 | 8 | 20 | 25 | 25.4 | 16 | 17 | 24 | 0.16 |
| PHS14-1 | SIKAC14-1M | GIKF14-1PB | KI14-1-NIRO | SIBP14S/B1 | TSF14-1 | BNF14-1 | 14 | 16.9 | 34 | M14x1.5 | 19 | 13.5 | 25 | 22 | 57 | 74 | 8 | 20 | 25 | 25.4 | 16 | 17 | 24 | 0.16 |
| PHS16 | SIKAC16M | GIKF16PB | KI16-NIRO | SIBP16S | TSF16 | BNF16 | 16 | 19.4 | 40 | M16x2.0 | 21 | 15 | 28 | 22 | 64 | 84 | 8 | 22 | 27 | 28.575 | 15 | 21.6 | 28.5 | 0.22 |
| PHS16-1 | SIKAC16-1M | GIKF16-1PB | KI16-1-NIRO | SIBP16S/B1 | TSF16-1 | BNF16-1 | 16 | 19.4 | 40 | M16x1.5 | 21 | 15 | 28 | 22 | 64 | 84 | 8 | 22 | 27 | 28.575 | 15 | 21.6 | 28.5 | 0.22 |
| PHS18 | SIKAC18M | GIKF18PB | KI18-NIRO | SIBP18S | TSF18 | BNF18 | 18 | 21.9 | 44 | M18x1.5 | 23 | 16.5 | 32 | 27 | 71 | 93 | 10 | 25 | 31 | 31.75 | 15 | 26 | 42.5 | 0.32 |
| PHS20 | SIKAC20M | GIKF20PB | KI20-NIRO | SIBP20S | TSF20 | BNF20 | 20 | 24.4 | 50 | M20x1.5 | 25 | 18 | 33 | 30 | 77 | 102 | 10 | 27.5 | 34 | 34.925 | 14 | 31.5 | 42.5 | 0.42 |
| PHS22 | SIKAC22M | GIKF22PB | KI22-NIRO | SIBP22S | TSF22 | BNF22 | 22 | 25.8 | 54 | M22x1.5 | 28 | 20 | 37 | 32 | 84 | 111 | 12 | 30 | 38 | 38.1 | 15 | 38 | 57 | 0.54 |
| PHS25 | SIKAC25M | GIKF25PB | KI25-NIRO | SIBP25S | TSF25 | BNF25 | 25 | 29.6 | 60 | M24x2.0 | 31 | 22 | 42 | 36 | 94 | 124 | 12 | 33.5 | 42 | 42.86 | 15 | 47.5 | 68 | 0.73 |
| PHS28 | SIKAC28M | GIKF28PB | KI28-NIRO | SIBP28S | TSF28 | BNF28 | 28 | 32.3 | 66 | M27x2.0 | 35 | 24 | 48 | 41 | 103 | 136 | 14 | 37 | 46 | 47.63 | 15 | 58 | 75 | 0.98 |
| PHS30 | SIKAC30M | GIKF30PB | KI30-NIRO | SIBP30S | TSF30 | BNF30 | 30 | 34.8 | 70 | M30x2.0 | 37 | 25 | 51 | 41 | 110 | 145 | 15 | 40 | 50 | 50.8 | 17 | 64 | 88 | 1.1 |
| PHS30-1 | SIKAC30-1M | GIKF30-1PB | KI30-1-NIRO | SIBP30-1S | TSF30-1 | BNF30-1 | 30 | 34.8 | 70 | M27x2.0 | 37 | 25 | 51 | 41 | 110 | 145 | 15 | 40 | 50 | 50.8 | 17 | 64 | 88 | 1.1 |
Findbearing.com supplies high quality PHS Rod ends.
Note:
– Steel/Bronze sliding contact, relubrication maintenance required.
– PHSL means rod body with left-hand female thread.
– Surface of the rod body is white zinc plated.
– Different pitch or thread accuracy can be supplied.
