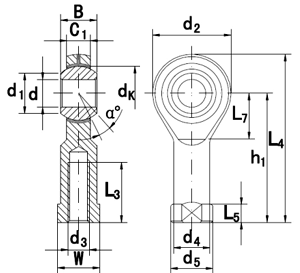

SI-ZK Rod End Catalogue list
| Dimensions | Load ratings | ||||||||||||||||
| SPEC.1 | d | d2 | d3 | d4 | d5 | B | C1 | L3 | W | h1 | L4 | L5 | dk | a | Cr | Cor | Mass |
| SI4ZK | 4 | 14 | M4x0.7 | 8 | 9.5 | 7 | 5.25 | 8 | 8 | 24 | 31 | 4 | 9.525 | 13 | 3 | 5 | 0.00 |
| SI5ZK | 5 | 16 | M5x0.8 | 8.5 | 11 | 8 | 6 | 10 | 9 | 27 | 35 | 4 | 11.11 | 13 | 3.25 | 5.7 | 0.016 |
| SI6ZK | 6 | 18 | M6x1.0 | 10 | 13 | 9 | 6.75 | 12 | 11 | 30 | 39 | 5 | 12.7 | 13 | 4.3 | 7.2 | 0.022 |
| SI8ZK | 8 | 22 | M8x1.25 | 12.5 | 16 | 12 | 9 | 16 | 14 | 36 | 47 | 5 | 15.875 | 14 | 7.2 | 11.6 | 0.047 |
| SI10ZK | 10 | 26 | M10x1.5 | 15 | 19 | 14 | 10.5 | 20 | 17 | 43 | 56 | 6.5 | 19.05 | 13 | 10 | 14.5 | 0.077 |
| SI10-1ZK | 10 | 26 | M10x1.25 | 15 | 19 | 14 | 10.5 | 20 | 17 | 43 | 56 | 6.5 | 19.05 | 13 | 10 | 14.5 | 0.077 |
| SI12ZK | 12 | 30 | M12x1.75 | 17.5 | 22 | 16 | 12 | 22 | 19 | 50 | 65 | 6.5 | 22.225 | 13 | 13.4 | 17 | 0.1 |
| SI12-1ZK | 12 | 30 | M12x1.25 | 17.5 | 22 | 16 | 12 | 22 | 19 | 50 | 65 | 6.5 | 22.225 | 13 | 13.4 | 17 | 0.1 |
| SI14ZK | 14 | 34 | M14x2.0 | 20 | 25 | 19 | 13.5 | 25 | 22 | 57 | 74 | 8 | 25.4 | 16 | 17 | 24 | 0.16 |
| SI14-1ZK | 14 | 34 | M14x1.5 | 20 | 25 | 19 | 13.5 | 25 | 22 | 57 | 74 | 8 | 25.4 | 16 | 17 | 24 | 0.16 |
| SI16ZK | 16 | 40 | M16x2.0 | 22 | 27 | 21 | 15 | 28 | 22 | 64 | 84 | 8 | 28.575 | 15 | 21.6 | 28.5 | 0.22 |
| SI16-1ZK | 16 | 40 | M16x1.5 | 22 | 27 | 21 | 15 | 28 | 22 | 64 | 84 | 8 | 28.575 | 15 | 21.6 | 28.5 | 0.22 |
| SI18ZK | 18 | 44 | M18x1.5 | 25 | 31 | 23 | 16.5 | 32 | 27 | 71 | 93 | 10 | 31.75 | 15 | 26 | 42.5 | 0.32 |
| SI20ZK | 20 | 50 | M20x1.5 | 27.5 | 34 | 25 | 18 | 33 | 30 | 77 | 102 | 10 | 34.925 | 14 | 31.5 | 42.5 | 0.42 |
| SI22ZK | 22 | 54 | M22x1.5 | 30 | 38 | 28 | 20 | 37 | 32 | 84 | 111 | 12 | 38.1 | 15 | 38 | 57 | 0.54 |
| SI25ZK | 25 | 60 | M24x2.0 | 33.5 | 42 | 31 | 22 | 42 | 36 | 94 | 124 | 12 | 42.86 | 15 | 47.5 | 68 | 0.73 |
| SI28ZK | 28 | 66 | M27x2.0 | 37 | 46 | 35 | 24 | 48 | 41 | 103 | 136 | 14 | 47.63 | 15 | 58 | 75 | 0.98 |
| SI30ZK | 30 | 70 | M30x2.0 | 40 | 50 | 37 | 25 | 51 | 41 | 110 | 145 | 15 | 50.8 | 17 | 64 | 88 | 1.1 |
| SI30-1ZK | 30 | 70 | M27x2.0 | 40 | 50 | 37 | 25 | 51 | 41 | 110 | 145 | 15 | 50.8 | 17 | 64 | 88 | 1.1 |
Findbearing.com supplies high quality SI-ZK Rod ends.
Note:
– Steel/PTFE composite material, maintenance free.
– SI-ZK Rod ends is the same structure with PHS series rod ends, but outer ring used plastic injection formation craft.
– Material is Nylon, fiberglass and teflon components.
