SSA-T/K Rod End Catalogue list

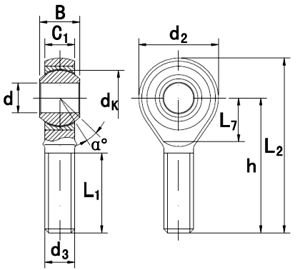

| Dimensions | Load ratings | ||||||||||||||
| SPEC.1 | d | d2 | d3 | B | C1 | L1 | L7 | h | L2 | dk | R1s | a | C | C0 | Weight |
| SSA5T/K | 5 | 18 | M5x0.8 | 8 | 6 | 19 | 33 | 42 | 11.11 | 0.3 | 13 | 5.7 | 6 | 0.013 | |
| SSA6T/K | 6 | 20 | M6x1.0 | 9 | 6.75 | 21 | 36 | 46 | 12.7 | 0.3 | 13 | 7.2 | 7.65 | 0.02 | |
| SSA8T/K | 8 | 24 | M8x1.25 | 12 | 9 | 25 | 42 | 54 | 15.875 | 0.3 | 14 | 11.6 | 12.9 | 0.038 | |
| SSA10T/K | 10 | 28 | M10x1.5 | 14 | 10.5 | 28 | 28 | 62 | 19.05 | 0.3 | 13 | 14.5 | 18 | 0.055 | |
| SSA12T/K | 12 | 32 | M12x1.75 | 16 | 12 | 32 | 54 | 70 | 22.225 | 0.3 | 13 | 17 | 24 | 0.08 | |
| SSA12-1T/K | 12 | 32 | M12x1.25 | 16 | 12 | 32 | 54 | 70 | 22.225 | 0.3 | 13 | 17 | 24 | 0.08 | |
| SSA14T/K | 14 | 36 | M14x2.0 | 19 | 13.5 | 36 | 18 | 60 | 78 | 25.4 | 0.3 | 16 | 24 | 31 | 0.14 |
| SSA16T/K | 16 | 42 | M16x2.0 | 21 | 15 | 37 | 21 | 66 | 87 | 28.575 | 0.3 | 15 | 28.5 | 39 | 0.21 |
| SSA16-1T/K | 16 | 42 | M16x1.5 | 21 | 15 | 37 | 21 | 66 | 87 | 28.575 | 0.3 | 15 | 28.5 | 39 | 0.21 |
| SSA18T/K | 18 | 44 | M18x1.5 | 23 | 16.5 | 41 | 22 | 72 | 94 | 31.75 | 0.3 | 15 | 42.5 | 47.5 | 0.28 |
| SSA20T/K | 20 | 50 | M20x1.5 | 25 | 18 | 45 | 25 | 78 | 103 | 34.925 | 0.3 | 14 | 42.5 | 57 | 0.38 |
| SSA22T/K | 22 | 54 | M22x1.5 | 28 | 20 | 48 | 27 | 84 | 111 | 38.1 | 0.3 | 15 | 57 | 68 | 0.48 |
| SSA25T/K | 25 | 60 | M24x2.0 | 31 | 22 | 55 | 30 | 94 | 124 | 42.86 | 0.3 | 15 | 68 | 85 | 0.64 |
| SSA28T/K | 28 | 66 | M27x2.0 | 35 | 24 | 62 | 33 | 103 | 136 | 47.63 | 0.3 | 15 | 86 | 107 | 0.8 |
| SSA30T/K | 30 | 70 | M30x2.0 | 37 | 25 | 66 | 35 | 110 | 145 | 50.8 | 0.3 | 17 | 88 | 114 | 1.1 |
Findbearing.com supplies high quality SSA-T/K Rod ends.
Note:
– Stainless Steel/PTFE composite material, maintenance free.
– The SSA-T/K series are composed of radial shperical plain bearing (G – PW) and rod body.
– It is the same series with SI-T/K, but with male thread and in stainless steel.
