SSI-T/K Rod End Catalogue list

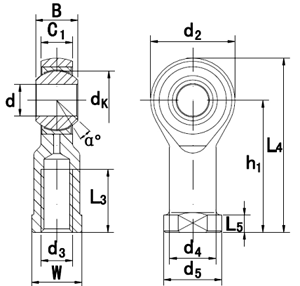

| Dimension | Load ratings | ||||||||||||||||
| SPEC.1 | d | d2 | d3 | d4 | d5 | B | C1 | L3 | L4 | L5 | W | h1 | dk | a | C | C0 | Weight |
| SSI5T/K | 5 | 18 | M5x0.8 | 8.5 | 11 | 8 | 6 | 10 | 36 | 4 | 9 | 27 | 11.11 | 13 | 5.7 | 6 | 0.016 |
| SSI6T/K | 6 | 20 | M6x1.0 | 10 | 13 | 9 | 6.75 | 12 | 40 | 5 | 11 | 30 | 12.7 | 13 | 7.2 | 7.65 | 0.022 |
| SSI8T/K | 8 | 24 | M8x1.25 | 12.5 | 16 | 12 | 9 | 16 | 48 | 5 | 14 | 36 | 15.875 | 14 | 11.6 | 12.9 | 0.047 |
| SSI10T/K | 10 | 28 | M10x1.5 | 15 | 19 | 14 | 10.5 | 20 | 57 | 6.5 | 17 | 43 | 19.05 | 13 | 14.5 | 18 | 0.077 |
| SSI10-1T/K | 10 | 28 | M10x1.25 | 15 | 19 | 14 | 10.5 | 20 | 57 | 6.5 | 17 | 43 | 19.05 | 13 | 14.5 | 18 | 0.077 |
| SSI12T/K | 12 | 32 | M12x1.75 | 17.5 | 22 | 16 | 12 | 22 | 66 | 6.5 | 19 | 50 | 22.225 | 13 | 17 | 24 | 0.1 |
| SSI12-1T/K | 12 | 32 | M12x1.25 | 17.5 | 22 | 16 | 12 | 22 | 66 | 6.5 | 19 | 50 | 22.225 | 13 | 17 | 24 | 0.1 |
| SSI14T/K | 14 | 36 | M14x2.0 | 20 | 25 | 19 | 13.5 | 25 | 75 | 8 | 22 | 57 | 25.4 | 16 | 24 | 31 | 0.16 |
| SSI14-1T/K | 14 | 36 | M14x1.5 | 20 | 25 | 19 | 13.5 | 25 | 75 | 8 | 22 | 57 | 25.4 | 16 | 24 | 31 | 0.16 |
| SSI16T/K | 16 | 42 | M16x2.0 | 22 | 27 | 21 | 15 | 28 | 85 | 8 | 22 | 64 | 28.575 | 15 | 28.5 | 39 | 0.22 |
| SSI16-1T/K | 16 | 42 | M16x1.5 | 22 | 27 | 21 | 15 | 28 | 85 | 8 | 22 | 64 | 28.575 | 15 | 28.5 | 39 | 0.22 |
| SSI18T/K | 18 | 44 | M18x1.5 | 25 | 31 | 23 | 16.5 | 32 | 93 | 10 | 27 | 71 | 31.75 | 15 | 42.5 | 47.5 | 0.32 |
| SSI20T/K | 20 | 50 | M20x1.5 | 27.5 | 34 | 25 | 18 | 33 | 102 | 10 | 30 | 77 | 34.925 | 14 | 42.5 | 57 | 0.42 |
| SSI22T/K | 22 | 54 | M22x1.5 | 30 | 38 | 28 | 20 | 37 | 111 | 12 | 32 | 84 | 38.1 | 15 | 57 | 68 | 0.54 |
| SSI25T/K | 25 | 60 | M24x2.0 | 33.5 | 42 | 31 | 22 | 42 | 124 | 12 | 36 | 94 | 42.86 | 15 | 68 | 85 | 0.72 |
| SSI28T/K | 28 | 66 | M27x2.0 | 37 | 46 | 35 | 24 | 51 | 136 | 14 | 41 | 103 | 47.63 | 15 | 86 | 107 | 0.82 |
| SSI30T/K | 30 | 70 | M30x2.0 | 40 | 50 | 37 | 25 | 51 | 145 | 15 | 41 | 110 | 50.8 | 17 | 88 | 114 | 1.1 |
| SSI30-1T/K | 30 | 70 | M27x2.0 | 40 | 50 | 37 | 25 | 51 | 145 | 15 | 41 | 110 | 50.8 | 17 | 88 | 114 | 1.1 |
Findbearing.com supplies high quality SSI-T/K Rod ends.
Note:
– stainless Steel/PTFE composite material, maintenance free.
– The SSI-T/K series are composed of G – PW and rod body.
– SSIL means rod body with left-hand female thread.
