SI-PK Rod End Catalogue list

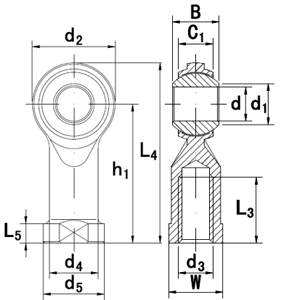

| Other Bearing NO. | Dimensions | Load ratings | ||||||||||||||||
| SPEC.1 | SPEC.2 | SPEC.3 | d | d2 | d3 | d4 | d5 | B | C1 | L3 | W | h1 | L4 | L5 | a | C | C0 | Weight |
| SI5PK | KI5-BD | NHS5T | 5 | 19 | M5x0.8 | 9 | 11 | 8 | 6 | 10 | 9 | 27 | 36.5 | 4 | 12 | 5.7 | 6 | 0.018 |
| SI6PK | KI6-BD | NHS6T | 6 | 21 | M6x1.0 | 10 | 13 | 9 | 6.7 | 12 | 11 | 30 | 40.5 | 5 | 11 | 7.2 | 7.65 | 0.026 |
| SI8PK | KI8-BD | NHS8T | 8 | 25 | M8x1.25 | 12.5 | 16 | 12 | 9 | 16 | 14 | 36 | 48.5 | 5 | 12 | 11.6 | 12.9 | 0.047 |
| SI10PK | KI10-BD | NHS10T | 10 | 29 | M10x1.5 | 15 | 19 | 14 | 11 | 20 | 17 | 43 | 57.5 | 6.5 | 12 | 14.5 | 18 | 0.077 |
| SI10-1PK | KI10-1-BD | NHS10-1T | 10 | 29 | M10x1.25 | 15 | 19 | 14 | 11 | 20 | 17 | 43 | 57.5 | 6.5 | 12 | 14.5 | 18 | 0.077 |
| SI12PK | KI12-BD | NHS12T | 12 | 33 | M12x1.75 | 17.5 | 22 | 16 | 12 | 22 | 19 | 50 | 66.5 | 6.5 | 13 | 17 | 24 | 0.1 |
| SI12-1PK | KI12-1-BD | NHS12-1T | 12 | 33 | M12x1.25 | 17.5 | 22 | 16 | 12 | 22 | 19 | 50 | 66.5 | 6.5 | 13 | 17 | 24 | 0.1 |
| SI14PK | KI14-BD | NHS14T | 14 | 37 | M14x2.0 | 20 | 25 | 19 | 14 | 25 | 22 | 57 | 75.5 | 8 | 14 | 24 | 31 | 0.16 |
| SI16PK | KI16-BD | NHS16T | 16 | 43 | M16x2.0 | 22 | 27 | 21 | 15 | 28 | 22 | 64 | 85.5 | 8 | 14 | 28.5 | 39 | 0.22 |
| SI16-1PK | KI16-1-BD | NHS16-1T | 16 | 43 | M16x1.5 | 22 | 27 | 21 | 15 | 28 | 22 | 64 | 85.5 | 8 | 14 | 28.5 | 39 | 0.22 |
| SI18PK | KI18-BD | NHS18T | 18 | 47 | M18x1.5 | 25 | 31 | 23 | 17 | 32 | 27 | 71 | 94.5 | 10 | 14 | 42.5 | 47.5 | 0.32 |
| SI20PK | KI20-BD | NHS20T | 20 | 51 | M20x1.5 | 27.5 | 34 | 25 | 18 | 33 | 30 | 77 | 102.5 | 10 | 14 | 42.5 | 57 | 0.42 |
| SI22PK | KI22-BD | NHS22T | 22 | 55 | M22x1.5 | 30 | 38 | 28 | 20 | 37 | 32 | 84 | 111.5 | 12 | 15 | 57 | 68 | 0.54 |
| SI25PK | KI25-BD | NHS25T | 25 | 61 | M24x2.0 | 33.5 | 42 | 31 | 22 | 42 | 36 | 94 | 124.5 | 12 | 15 | 68 | 85 | 0.72 |
Findbearing.com supplies high quality SI-PK Rod ends.
Note:
– Steel/PTFE composite material, maintenance free.
– Outer race pressed formation.
– SIL means rod body with left-hand female thread.
– Surface of the rod body is white zinc plated.
