GF-LO Rod End Catalogue list

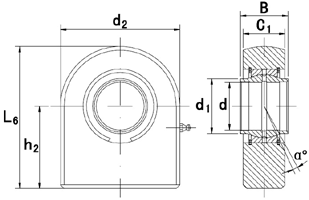

| Dimensions | Load ratings | ||||||||||
| SPEC.1 | d | d1 | d2 | B | C1 | L6 | h2 | a≈ | Cr | Cor | Mass |
| GF16LO | 16 | 20 | 48 | 16 | 17.5 | 59 | 35 | 4 | 17 | 40 | 0.3 |
| GF20LO | 20 | 25 | 50 | 20 | 19 | 63 | 38 | 4 | 30 | 74 | 0.36 |
| GF25LO | 25 | 30.5 | 55 | 25 | 23 | 72.5 | 45 | 4 | 48 | 95 | 0.54 |
| GF32LO | 32 | 38 | 70 | 32 | 27 | 100 | 65 | 4 | 62.5 | 168 | 1.12 |
| GF40LO | 40 | 46 | 100 | 40 | 35 | 119 | 69 | 4 | 100 | 268 | 2.5 |
| GF50LO | 50 | 57 | 123 | 50 | 40 | 149.5 | 88 | 4 | 156 | 362 | 4.6 |
| GF63LO | 63 | 71.5 | 145 | 63 | 50 | 179.5 | 107 | 4 | 248 | 570 | 9.30 |
| GF70LO | 70 | 79 | 164 | 70 | 55 | 197 | 115 | 4 | 315 | 800 | 11.25 |
| GF80LO | 80 | 91 | 180 | 80 | 60 | 231 | 141 | 4 | 400 | 874 | 15.75 |
| GF90LO | 90 | 99 | 226 | 90 | 65 | 263 | 150 | 4 | 490 | 1045 | 24 |
| GF100LO | 100 | 113 | 250 | 100 | 70 | 295 | 170 | 4 | 610 | 1330 | 33.95 |
| GF110LO | 110 | 124 | 295 | 110 | 80 | 332.5 | 185 | 4 | 655 | 1490 | 49 |
GF-LO is composed of a spherical plain bearing GE-LO and rod end housing.
– It has lubricating hole and grease nipple design, maintenance required.
– Housing has weldable base.
– Sealed structure available.
