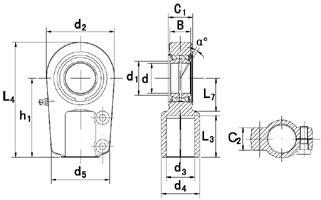

GK-SK Rod End Catalogue list
| Other Bearing No. | Dimensions | Load ratings | ||||||||||||||||
| SPEC.1 | SPEC.2 | d | d1 | d2 | d3 | d4 | d5 | B | C1 | C2 | L3 | L4 | L7 | h1 | a | Cr | Cor | Mass |
| GK25SK | GKL25SK | 25 | 29.3 | 56 | M18x2.0 | 28 | 48 | 23 | 20 | 21 | 30 | 95 | 25 | 65 | 8 | 48 | 76 | 0.7 |
| GK30SK | GKL30SK | 30 | 34.2 | 64 | M24x2.0 | 34 | 56 | 28 | 22 | 26 | 35 | 109 | 30 | 75 | 7 | 62 | 112 | 1 |
| GK35SK | GKL35SK | 35 | 39.7 | 78 | M30x2.0 | 44 | 70 | 30 | 25 | 28 | 45 | 132 | 40 | 90 | 7 | 80 | 180 | 1.3 |
| GK40SK | GKL40SK | 40 | 45 | 94 | M39x3.0 | 55 | 78 | 35 | 28 | 33 | 55 | 155 | 45 | 105 | 7 | 100 | 295 | 2.4 |
| GK50SK | GKL50SK | 50 | 56 | 116 | M50x3.0 | 70 | 88 | 40 | 35 | 36 | 75 | 198 | 55 | 135 | 7 | 156 | 445 | 4.1 |
| GK60SK | GKL60SK | 60 | 66.8 | 130 | M64x3.0 | 87 | 118 | 50 | 44 | 46 | 95 | 240 | 65 | 170 | 7 | 245 | 530 | 6.5 |
| GK70SK | GKL70SK | 70 | 77.8 | 154 | M80x3.0 | 105 | 138 | 55 | 49 | 51 | 110 | 278 | 75 | 195 | 6 | 315 | 720 | 9.5 |
| GK80SK | GKL80SK | 80 | 89.4 | 176 | M90x3.0 | 125 | 168 | 60 | 55 | 55 | 120 | 305 | 80 | 210 | 6 | 400 | 890 | 16 |
| GK90SK | GKL90SK | 90 | 98.0 | 206 | M100x3.0 | 150 | 180 | 65 | 60 | 60 | 140 | 363 | 90 | 250 | 5 | 490 | 1300 | 28 |
| GK100SK | GKL100SK | 100 | 109.5 | 230 | M110x4.0 | 170 | 188 | 70 | 70 | 65 | 150 | 400 | 105 | 275 | 7 | 610 | 1490 | 34 |
| GK110SK | GKL110SK | 110 | 121.2 | 264 | M120x4.0 | 180 | 210 | 80 | 70 | 74 | 160 | 442 | 115 | 300 | 6 | 650 | 2050 | 44 |
| GK120SK | GKL120SK | 120 | 135.5 | 340 | M150x4.0 | 210 | 240 | 90 | 85 | 84 | 190 | 540 | 140 | 360 | 6 | 950 | 2970 | 75 |
| GK140SK | GKL140SK | 140 | 155.8 | 380 | M160x4.0 | 230 | 256 | 110 | 90 | 105 | 210 | 620 | 185 | 420 | 7 | 1080 | 3350 | 160 |
| GK160SK | GKL160SK | 160 | 170.2 | 480 | M180x4.0 | 260 | 290 | 110 | 105 | 105 | 240 | 710 | 200 | 460 | 8 | 1370 | 4300 | 185 |
GK-SK is composed of a spherical plain bearing GE-ES(2RS) and rod end housing with locking nuts. It has lubricating hole and grease nipple design, maintenance required. Female thread.
