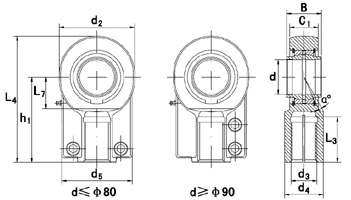

SIQG-ES (GIHN-K-LO) Rod End Catalogue list
| Other Bearing No. | Dimensions | Load ratings | ||||||||||||||||
| SPEC.1 | SPEC.2 | SPEC.3 | SPEC.4 | d | d2 | d3 | d4 | L3 | B | C1 | L7 | h1 | L4 | d5 | C2 | Cr | Cor | Mass |
| SIQG12ES | GIHN-K12LO | SIGEW12ES | GIHN-KL12LO | 12 | 32 | M12x1.25 | 16.5 | 17 | 12 | 11 | 14 | 38 | 54 | 32 | 11 | 10.8 | 24.5 | 0.1 |
| SIQG16ES | GIHN-K16LO | SIGEW16ES | GIHN-KL16LO | 16 | 40 | M14x1.5 | 21 | 19 | 16 | 14 | 18 | 44 | 64 | 40 | 14 | 17.6 | 36.5 | 0.2 |
| SIQG20ES | GIHN-K20LO | SIGEW20ES | GIHN-KL20LO | 20 | 47 | M16x1.5 | 25 | 23 | 20 | 17 | 22 | 52 | 77 | 47 | 17 | 30 | 48 | 0.4 |
| SIQG25ES | GIHN-K25LO | SIGEW25ES | GIHN-KL25LO | 25 | 58 | M20x1.5 | 30 | 29 | 25 | 22 | 27 | 65 | 96 | 54 | 19 | 48 | 78 | 0.66 |
| SIQG32ES | GIHN-K32LO | SIGEW32ES | GIHN-KL32LO | 32 | 71 | M27x2.0 | 38 | 37 | 32 | 28 | 32 | 80 | 118.5 | 66 | 22 | 67 | 114 | 1.2 |
| SIQG40ES | GIHN-K40LO | SIGEW40ES | GIHN-KL40LO | 40 | 90 | M33x2.0 | 47 | 46 | 40 | 33 | 41 | 97 | 146 | 80 | 26 | 100 | 204 | 2.1 |
| SIQG50ES | GIHN-K50LO | SIGEW50ES | GIHN-KL50LO | 50 | 109 | M42x2.0 | 58 | 57 | 50 | 41 | 50 | 120 | 179.5 | 96 | 32 | 156 | 310 | 4.4 |
| SIQG63ES | GIHN-K63LO | SIGEW63ES | GIHN-KL63LO | 63 | 136 | M48x2.0 | 70 | 64 | 63 | 53 | 62 | 140 | 213 | 114 | 38 | 255 | 430 | 7.6 |
| SIQG70ES | GIHN-K70LO | SIGEW70ES | GIHN-KL70LO | 70 | 155 | M56x2.0 | 80 | 76 | 70 | 57 | 70 | 160 | 245 | 135 | 42 | 315 | 540 | 9.5 |
| SIQG80ES | GIHN-K80LO | SIGEW80ES | GIHN-KL80LO | 80 | 170 | M64x3.0 | 90 | 86 | 80 | 67 | 78 | 180 | 270.5 | 148 | 48 | 400 | 695 | 14.5 |
| SIQG90ES | GIHN-K90LO | SIGEW90ES | GIHN-KL90LO | 90 | 185 | M72x3.0 | 100 | 91 | 90 | 72 | 85 | 195 | 296 | 160 | 52 | 490 | 750 | 17 |
| SIQG100ES | GIHN-K100LO | SIGEW100ES | GIHN-KL100LO | 100 | 210 | M80x3.0 | 110 | 96 | 100 | 84 | 98 | 210 | 322 | 178 | 62 | 610 | 1060 | 28 |
| SIQG110ES | GIHN-K110LO | SIGEW110ES | GIHN-KL110LO | 110 | 235 | M90x3.0 | 125 | 106 | 110 | 88 | 105 | 235 | 364 | 190 | 62 | 655 | 1200 | 32 |
| SIQG125ES | GIHN-K125LO | SIGEW125ES | GIHN-KL125LO | 125 | 265 | M100x3.0 | 135 | 113 | 125 | 102 | 120 | 260 | 405 | 200 | 72 | 950 | 1430 | 43 |
| SIQG160ES | GIHN-K160LO | SIGEW160ES | GIHN-KL160LO | 160 | 326 | M125x4.0 | 165 | 126 | 160 | 130 | 150 | 310 | 488 | 250 | 82 | 1370 | 2200 | 82.5 |
SIQG-ES (GIHN-K-LO) is composed of a spherical plain bearing GE-LO and rod end housing with locking nuts. It has lubricating hole and grease nipple design(except SIQG12ES), maintenance required. Female thread.
