GIHO-K-DO Rod Ends for hydraulic components Catalogue list
| Other Bearing No. | Dimensions | Load ratings | ||||||||||||||||
| SPEC.1 | SPEC.2 | d | d1 | d2 | d3 | d4 | d5 | B | L3 | L4 | L7 | C1 | h1 | C2 | a | Cr | Cor | Mass |
| GIHO-K12DO | GIHO-KL12DO | 12 | 15 | 35 | M10x1.25 | 17 | 40 | 10 | 15 | 59.5 | 16 | 8 | 42 | 13 | 11 | 10.8 | 17 | 0.12 |
| GIHO-K16DO | GIHO-KL16DO | 16 | 20.7 | 45 | M12x1.25 | 21 | 45 | 14 | 17 | 70.5 | 20 | 11 | 48 | 13 | 10 | 21.1 | 28.5 | 0.22 |
| GIHO-K20DO | GIHO-KL20DO | 20 | 24.2 | 55 | M14x1.5 | 25 | 55 | 16 | 19 | 85.5 | 25 | 13 | 58 | 17 | 9 | 30 | 42.5 | 0.43 |
| GIHO-K25DO | GIHO-KL25DO | 25 | 29.3 | 65 | M16x1.5 | 30 | 62 | 20 | 23 | 100.5 | 30 | 17 | 68 | 17 | 7 | 48 | 67 | 0.67 |
| GIHO-K30DO | GIHO-KL30DO | 30 | 34.2 | 80 | M20x1.5 | 36 | 77 | 22 | 29 | 125 | 35 | 19 | 85 | 19 | 6 | 62 | 108 | 1.25 |
| GIHO-K40DO | GIHO-KL40DO | 40 | 45 | 100 | M27x2.0 | 45 | 90 | 28 | 37 | 155 | 45 | 23 | 105 | 23 | 7 | 100 | 156 | 2.16 |
| GIHO-K50DO | GIHO-KL50DO | 50 | 55.9 | 120 | M33x2.0 | 55 | 105 | 35 | 46 | 190 | 58 | 30 | 130 | 30 | 6 | 156 | 245 | 3.9 |
| GIHO-K60DO | GIHO-KL60DO | 60 | 66.8 | 160 | M42x2.0 | 68 | 134 | 44 | 57 | 230 | 68 | 38 | 150 | 38 | 6 | 245 | 380 | 7.15 |
| GIHO-K80DO | GIHO-KL80DO | 80 | 89.4 | 205 | M48x2.0 | 90 | 156 | 55 | 64 | 287.5 | 82 | 47 | 185 | 47 | 6 | 400 | 585 | 15 |
| GIHO-K100DO | GIHO-KL100DO | 100 | 109.5 | 240 | M64x3.0 | 110 | 190 | 70 | 86 | 360 | 116 | 55 | 240 | 55 | 7 | 610 | 865 | 27.3 |

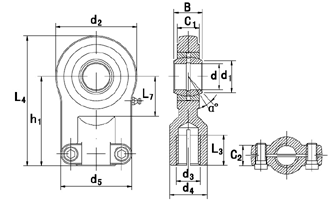

GIHO-K-DO is composed of a spherical plain bearing GE-ES(2RS) and rod end housing with locking nuts. It has lubricating hole and grease nipple design(except GIHO-K12DO), maintenance required. Female thread.
