SA-PK Rod End Catalogue list

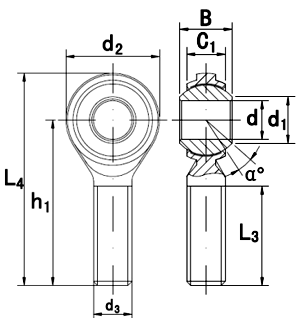

| Other Bearing No. | Dimensions | Load ratings | ||||||||||||
| SPEC.1 | SPEC.2 | SPEC.3 | d | d2 | d3 | B | C1 | h1 | L4 | L3 | a | C | C0 | Weight |
| SA5PK | KA5-BD | NOS5T | 5 | 19 | M5x0.8 | 8 | 6 | 33 | 42.5 | 20 | 12 | 5.7 | 6 | 0.014 |
| SA6PK | KA6-BD | NOS6T | 6 | 21 | M6x1.0 | 9 | 6.7 | 36 | 46.5 | 22 | 11 | 7.2 | 7.65 | 0.02 |
| SA8PK | KA8-BD | NOS8T | 8 | 25 | M8x1.25 | 12 | 9 | 42 | 54.5 | 25 | 12 | 11.6 | 12.9 | 0.038 |
| SA10PK | KA10-BD | NOS10T | 10 | 29 | M10x1.5 | 14 | 11 | 48 | 62.5 | 29 | 12 | 14.5 | 18 | 0.055 |
| SA12PK | KA12-BD | NOS12T | 12 | 33 | M12x1.75 | 16 | 12 | 54 | 70.5 | 33 | 13 | 17 | 24 | 0.08 |
| SA14PK | KA14-BD | NOS14T | 14 | 37 | M14x2.0 | 19 | 14 | 60 | 78.5 | 36 | 14 | 24 | 31 | 0.14 |
| SA16PK | KA16-BD | NOS16T | 16 | 43 | M16x2.0 | 21 | 15 | 66 | 87.5 | 40 | 14 | 28.5 | 39 | 0.21 |
| SA18PK | KA18-BD | NOS18T | 18 | 47 | M18x1.5 | 23 | 17 | 72 | 95.5 | 44 | 14 | 42.5 | 47.5 | 0.28 |
| SA20PK | KA20-BD | NOS20T | 20 | 51 | M20x1.5 | 25 | 18 | 78 | 103.5 | 47 | 14 | 42.5 | 57 | 0.38 |
| SA22PK | KA22-BD | NOS22T | 22 | 55 | M22x1.5 | 28 | 20 | 84 | 111.5 | 50 | 15 | 57 | 68 | 0.48 |
| SA25PK | KA25-BD | NOS25T | 25 | 61 | M24x2.0 | 31 | 22 | 94 | 124.5 | 57 | 15 | 68 | 85 | 0.64 |
Findbearing.com supplies high quality SA-PK Rod ends.
Note:
– Steel/PTFE composite material, maintenance free.
– Rod body pressed formation around inner ring.
– SAL means rod body with left-hand male thread.
– Surface of the rod body is white zinc plated.
