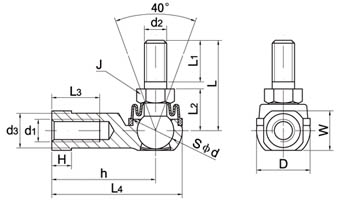

BL-D Ball joint Catalogue list
| Other Bearing No. | Dimensions | |||||||||||||||
| SPEC.1 | SPEC.2 | d1 | d2 | d3 | L1 | L2 | L3 | L4 | h | H | W | D | J | Sφd | Load ratings | Mass |
| BL6D | BL6DL | M6x1.0 | M6x1.0 | 10 | 11 | 11 | 16 | 16 | 30 | 5 | 11 | 16 | 10 | 11.11 | 9.9 | 0.037 |
| BL8D | BL8DL | M8x1.25 | M8x1.25 | 13 | 12 | 14 | 19 | 19 | 36 | 6 | 14 | 19 | 12 | 12.7 | 12.5 | 0.066 |
| BL10BD | BL10BDL | M10x1.5 | M10x1.5 | 14.5 | 21 | 17 | 23 | 23 | 43 | 7 | 17 | 25 | 14 | 15.88 | 18.3 | 0.11 |
| BL10D | BL10DL | M10x1.25 | M10x1.25 | 14.5 | 15 | 17 | 23 | 23 | 43 | 7 | 17 | 25 | 14 | 15.88 | 18.3 | 0.11 |
| BL12BD | BL12BDL | M12x1.75 | M12x1.75 | 17.5 | 24 | 19 | 26 | 26 | 50 | 8 | 19 | 29 | 17 | 19.05 | 26.7 | 0.16 |
| BL12D | BL12DL | M12x1.25 | M12x1.25 | 17.5 | 17 | 19 | 26 | 26 | 50 | 8 | 19 | 29 | 17 | 19.05 | 26.7 | 0.16 |
| BL16BD | BL16BDL | M16x2.0 | M16x2.0 | 22 | 29 | 23.5 | 34 | 34 | 64 | 11 | 24 | 38 | 22 | 22.23 | 36.4 | 0.33 |
| BL16D | BL16DL | M16x1.5 | M16x1.5 | 22 | 23 | 23.5 | 34 | 34 | 64 | 11 | 24 | 38 | 22 | 22.23 | 36.4 | 0.33 |
BL-D Angle Ball joint housing is made of zinc alloy, it has dust rubber seal.
