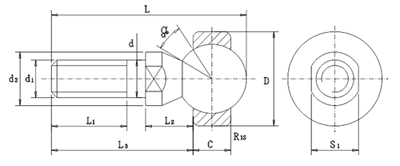

SQD Ball joint Catalogue list
| Other Bearing No. | Dimensions | ||||||||||||||
| SPEC.1 | SPEC.2 | d | d1 | d2 | L1 | L2 | L3 | L | S1 | C | D | R1s | a | Load ratings | Weight |
| SQD5 | ABS5 | 5 | M5x0.8 | 9 | 8 | 8 | 19 | 27.5 | 7 | 6 | 16 | 0.3 | 25 | 2 | 0.014 |
| SQD6 | ABS6 | 6 | M6x1.0 | 10 | 11 | 8.80 | 23.5 | 33.5 | 8 | 6.75 | 18 | 0.3 | 25 | 3.2 | 0.021 |
| SQD8 | ABS8 | 8 | M8x1.25 | 12 | 12 | 11.6 | 28.6 | 41 | 10 | 9 | 22 | 0.3 | 25 | 5.7 | 0.042 |
| SQD10 | ABS10 | 10 | M10x1.25 | 14 | 15 | 14.2 | 34.2 | 49 | 11 | 10.5 | 26 | 0.3 | 25 | 9.19 | 0.067 |
| SQD10-1 | ABS10B | 10 | M10x1.5 | 14 | 21 | 14.2 | 10.2 | 55 | 11 | 10.5 | 26 | 0.3 | 25 | 9.19 | 0.067 |
| SQD12 | ABS12 | 12 | M12x1.25 | 17 | 17 | 15.1 | 38.1 | 55.1 | 16 | 12 | 30 | 0.5 | 25 | 14 | 0.108 |
| SQD12-1 | ABS12B | 12 | M12x1.75 | 17 | 24 | 15.1 | 45.1 | 62.1 | 16 | 12 | 30 | 0.5 | 25 | 14 | 0.108 |
| SQD14 | ABS14 | 14 | M14x1.5 | 19 | 22 | 16.8 | 51.3 | 70.7 | 17 | 13.5 | 34 | 0.5 | 20 | 19 | 0.167 |
| SQD14-1 | ABS14B | 14 | M14x2.0 | 19 | 28 | 16.8 | 57.3 | 76.7 | 17 | 13.5 | 34 | 0.5 | 20 | 19 | 0.167 |
| SQD16 | ABS16 | 16 | M16x1.5 | 22 | 23 | 18 | 54.5 | 76.3 | 19 | 15 | 38 | 0.5 | 20 | 26 | 0.238 |
| SQD16-1 | ABS16B | 16 | M16x2.0 | 22 | 29 | 18 | 60.5 | 82.3 | 19 | 15 | 38 | 0.5 | 20 | 26 | 0.238 |
SQD straight Ball joint housing is an outer ring of spherical plain bearing, zinc alloy.
