SA-ES Rod End Catalogue list

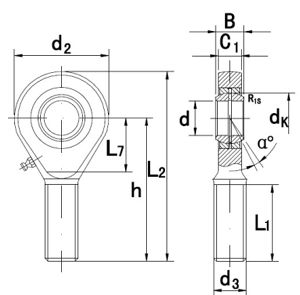

| Other Bearing No. | Dimension | Load ratings | ||||||||||||||||||
| SPEC.1 | SPEC.2 | SPEC.3 | SPEC.4 | SPEC.5 | SPEC.6 | d | d3 | B | C1 | L1 | d2 | L7 | h | L2 | dk | R1s | α≈ | Cr | Cor | Mass |
| SA6E | GAR6DO | EA6 | GAR6E | 6 | M6x1.0 | 6 | 4.4 | 18 | 21 | 12 | 36 | 46.5 | 10 | 0.3 | 13 | 3.4 | 8.15 | 0.017 | ||
| SA8E | GAR8DO | EA8 | GAR8E | 8 | M8x1.25 | 8 | 6 | 22 | 24 | 14 | 42 | 54 | 13 | 0.3 | 15 | 5.5 | 12.9 | 0.029 | ||
| SA10E | GAR10DO | EA10 | GAR10E | 10 | M10x1.5 | 9 | 7 | 26 | 29 | 15 | 48 | 62.5 | 16 | 0.3 | 12 | 8.15 | 17.6 | 0.051 | ||
| SA12E | GAR12DO | EA12 | GAR12E | 12 | M12x1.75 | 10 | 8 | 28 | 34 | 18 | 54 | 71 | 18 | 0.3 | 11 | 10.8 | 24.5 | 0.08 | ||
| SA15ES | SAA15ES | GAR15DO | EA15 | GAR15ES | 15 | M14x2.0 | 12 | 10 | 34 | 40 | 20 | 63 | 83 | 22 | 0.3 | 8 | 17 | 36 | 0.14 | |
| SA17ES | SAA17ES | GAR17DO | EA17 | GAR17ES | 17 | M16x2.0 | 14 | 11 | 36 | 46 | 23 | 69 | 92 | 25 | 0.3 | 10 | 21.2 | 45 | 0.19 | |
| SA20ES | SAA20ES | GAR20DO | EA20 | GAR20ES | SA20ES-2RS | 20 | M20x1.5 | 16 | 13 | 43 | 53 | 27 | 78 | 104.5 | 29 | 0.6 | 9 | 30 | 60 | 0.31 |
| SA25ES | SAA25ES | GAR25DO | EA25 | GAR25ES | SA25ES-2RS | 25 | M24x2.0 | 20 | 17 | 53 | 64 | 32 | 94 | 126 | 35.5 | 0.6 | 7 | 48 | 83 | 0.56 |
| SA30ES | SAA30ES | GAR30DO | EA30 | GAR30ES | SA30ES-2RS | 30 | M30x2.0 | 22 | 19 | 65 | 73 | 37 | 110 | 146.5 | 40.7 | 0.6 | 6 | 62 | 110 | 0.89 |
| SA35ES | SAA35ES | GAR35DO | EA35 | GAR35ES | SA35ES-2RS | 35 | M36x3.0 | 25 | 21 | 82 | 82 | 42 | 140 | 181 | 47 | 0.6 | 6 | 80 | 146 | 1.4 |
| SA40ES | SAA40ES | GAR40DO | EA40 | GAR40ES | SA40ES-2RS | 40 | M39x3.0 | 28 | 23 | 86 | 92 | 48 | 150 | 196 | 53 | 0.6 | 7 | 100 | 180 | 1.8 |
| SA40-1ES | SAA40-1ES | GAR40-1DO | EA40-1 | GAR40-1ES | SA40-1ES-2RS | 40 | M42x3.0 | 28 | 23 | 86 | 92 | 48 | 150 | 196 | 53 | 0.6 | 7 | 100 | 180 | 1.85 |
| SA45ES | SAA45ES | GAR45DO | EA45 | GAR45ES | SA45ES-2RS | 45 | M42x3.0 | 32 | 27 | 94 | 102 | 52 | 163 | 214 | 60 | 0.6 | 7 | 127 | 240 | 2.6 |
| SA45-1ES | SAA45-1ES | GAR45-1DO | EA45-1 | GAR45-1ES | SA45-1ES-2RS | 45 | M45x3.0 | 32 | 27 | 94 | 102 | 52 | 163 | 214 | 60 | 0.6 | 7 | 127 | 240 | 2.66 |
| SA50ES | SAA50ES | GAR50DO | EA50 | GAR50ES | SA50ES-2RS | 50 | M45x3.0 | 35 | 30 | 107 | 112 | 60 | 185 | 241 | 66 | 0.6 | 6 | 156 | 290 | 3.4 |
| SA50-1ES | SAA50-1ES | GAR50-1DO | EA50-1 | GAR50-1ES | SA50-1ES-2RS | 50 | M52x3.0 | 35 | 30 | 107 | 112 | 60 | 185 | 241 | 66 | 0.6 | 6 | 156 | 290 | 3.5 |
| SA60ES | SAA60ES | GAR60DO | EA60 | GAR60ES | SA60ES-2RS | 60 | M52x3.0 | 44 | 38 | 115 | 135 | 72 | 210 | 277.5 | 80 | 1 | 6 | 245 | 450 | 5.9 |
| SA60-1ES | SAA60-1ES | GAR60-1DO | EA60-1 | GAR60-1ES | SA60-1ES-2RS | 60 | M60x4.0 | 44 | 38 | 115 | 135 | 72 | 210 | 277.5 | 80 | 1 | 6 | 245 | 450 | 6.02 |
| SA70ES | SAA70ES | GAR70DO | EA70 | GAR70ES | SA70ES-2RS | 70 | M56x4.0 | 49 | 42 | 125 | 160 | 87 | 235 | 315 | 92 | 1 | 6 | 315 | 610 | 8.19 |
| SA70-1ES | SAA70-1ES | GAR70-1DO | EA70-1 | GAR70-1ES | SA70-1ES-2RS | 70 | M72x4.0 | 49 | 42 | 125 | 160 | 87 | 235 | 315 | 92 | 1 | 6 | 315 | 610 | 8.38 |
| SA80ES | SAA80ES | GAR80DO | EA80 | GAR80ES | SA80ES-2RS | 80 | M64x4.0 | 55 | 47 | 140 | 180 | 100 | 270 | 360 | 105 | 1 | 6 | 400 | 750 | 12 |
| SA80-1ES | SAA80-1ES | GAR80-1DO | EA80-1 | GAR80-1ES | SA80-1ES-2RS | 80 | M80x4.0 | 55 | 47 | 140 | 180 | 100 | 270 | 360 | 105 | 1 | 6 | 400 | 750 | 12.2 |
Findbearing.com supplies high quality SA – ES Rod ends.
Note:
– Steel/Steel sliding contact surface, maintenance required.
– The SA-ES(2RS) series are composed of radial shperical plain bearing (GE – ES 2RS) and rod body.
– SAL means rod body with left-hand female thread.
– Surface of the rod body is white zinc plated.
– From SA6E to SA12E. The rod ends has no lubricating hole or grease nipple.
– Sealed structure is available for those items with inner diameter of over 15mm.
