SA-ZK Rod End Catalogue list
| Dimensions | Load ratings | ||||||||||||||

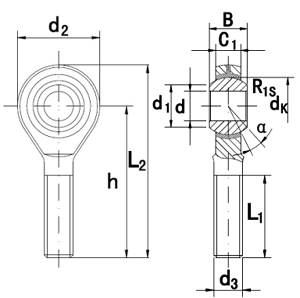

| SPEC.1 | d | d1 | d2 | d3 | B | C1 | L1 | L2 | h | dk | R1s | a | Cr | Cor | Mass |
| SA5ZK | 5 | 7.7 | 16 | M5x0.8 | 8 | 6 | 20 | 41 | 33 | 11.11 | 0.3 | 13 | 3.25 | 5.7 | 0.013 |
| SA6ZK | 6 | 8.96 | 18 | M6x1.0 | 9 | 6.75 | 22 | 45 | 36 | 12.7 | 0.3 | 13 | 4.3 | 7.2 | 0.02 |
| SA8ZK | 8 | 10.4 | 22 | M8x1.25 | 12 | 9 | 25 | 53 | 42 | 15.875 | 0.3 | 14 | 7.2 | 11.6 | 0.03 |
| SA10ZK | 10 | 12.9 | 26 | M10x1.5 | 14 | 10.5 | 29 | 61 | 48 | 19.05 | 0.3 | 13 | 10 | 14.6 | 0.055 |
| SA12ZK | 12 | 15.4 | 30 | M12x1.75 | 16 | 12 | 33 | 69 | 54 | 22.225 | 0.3 | 13 | 13.4 | 17 | 0.08 |
| SA12-1ZK | 12 | 15.4 | 30 | M12x1.25 | 16 | 12 | 33 | 69 | 54 | 22.225 | 0.3 | 13 | 13.4 | 17 | 0.08 |
| SA14ZK | 14 | 16.9 | 34 | M14x2.0 | 19 | 13.5 | 36 | 77 | 60 | 25.4 | 0.3 | 16 | 17 | 24 | 0.14 |
| SA16ZK | 16 | 19.4 | 40 | M16x2.0 | 21 | 15 | 40 | 86 | 66 | 28.575 | 0.3 | 15 | 21.6 | 28.5 | 0.21 |
| SA16-1ZK | 16 | 19.4 | 40 | M16x1.5 | 21 | 15 | 40 | 86 | 66 | 28.575 | 0.3 | 15 | 21.6 | 28.5 | 0.21 |
| SA18ZK | 18 | 21.9 | 44 | M18x1.5 | 23 | 16.5 | 44 | 94 | 72 | 31.75 | 0.3 | 15 | 26 | 42.5 | 0.28 |
| SA20ZK | 20 | 24.4 | 50 | M20x1.5 | 25 | 18 | 47 | 103 | 78 | 34.925 | 0.3 | 14 | 31.5 | 52.5 | 0.38 |
| SA22ZK | 22 | 25.8 | 54 | M22x1.5 | 28 | 20 | 51 | 111 | 84 | 38.1 | 0.3 | 15 | 38 | 57 | 0.48 |
| SA25ZK | 25 | 29.6 | 60 | M24x2.0 | 31 | 22 | 57 | 124 | 94 | 42.86 | 0.3 | 15 | 47.5 | 68 | 0.64 |
| SA28ZK | 28 | 32.3 | 66 | M27x2.0 | 35 | 24 | 62 | 136 | 103 | 47.63 | 0.3 | 15 | 58 | 75.5 | 0.96 |
| SA30ZK | 30 | 34.8 | 70 | M30x2.0 | 37 | 25 | 66 | 145 | 110 | 50.8 | 0.3 | 17 | 64 | 88 | 1.1 |
Findbearing.com supplies high quality SA-ZK Rod ends.
Note:
– Steel/PTFE composite material, maintenance free.
– SA-ZK Rod ends is the same structure with POS series rod ends, but outer ring used plastic injection formation craft
– Material is Nylon, fiberglass and teflon components.
– Difference with SI-ZK is on male thread.
