SIZP-S Rod End Catalogue list

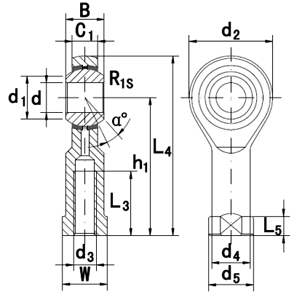

| Other Bearing NO. | Dimensions | Load ratings | |||||||||||||||||
| SPEC.1 | SPEC.2 | d | d1 | d2 | d3 | d4 | d5 | B | C1 | R1S | h1 | L3 | L4 | L5 | w | a | Cr | Cor | Mass |
| SIZP4S | SILZP4S | 4.826 | 7.8 | 15.88 | 10-32 | 7.54 | 10.31 | 7.92 | 6.35 | 0.3 | 26.97 | 14.27 | 34.91 | 4.75 | 7.92 | 10 | 3.4 | 4.6 | 0.015 |
| SIZP6S | SILZP6S | 6.35 | 8.4 | 19.05 | 1/4-28 | 9.15 | 11.91 | 9.52 | 7.14 | 0.3 | 33.32 | 19.05 | 42.85 | 4.75 | 9.52 | 13 | 4.5 | 7.7 | 0.025 |
| SIZP7S | SILZP7S | 7.938 | 11.4 | 22.23 | 5/16-24 | 10.72 | 12.7 | 11.1 | 8.74 | 0.3 | 34.93 | 19.05 | 46.04 | 4.75 | 11.1 | 10 | 6.9 | 8.4 | 0.036 |
| SIZP9S | SILZP9S | 9.525 | 13.1 | 25.4 | 3/8-24 | 13.89 | 17.45 | 12.7 | 10.31 | 0.6 | 41.28 | 23.8 | 53.98 | 6.35 | 14.27 | 9 | 9.4 | 10 | 0.061 |
| SIZP11S | SILZP11S | 11.113 | 14.9 | 28.58 | 7/16-20 | 15.49 | 19.05 | 14.27 | 11.1 | 0.6 | 46.02 | 26.97 | 60.31 | 6.35 | 15.88 | 11 | 11 | 13 | 0.08 |
| SIZP12S | SILZP12S | 12.7 | 17.7 | 33.32 | 1/2-20 | 18.67 | 22.23 | 15.88 | 12.7 | 0.6 | 53.98 | 30.15 | 70.64 | 6.35 | 19.05 | 9 | 15 | 19 | 0.133 |
| SIZP15S | SILZP15S | 15.875 | 21.1 | 38.1 | 5/8-18 | 21.84 | 25.4 | 19.05 | 14.27 | 0.6 | 63.5 | 38.1 | 82.55 | 7.92 | 22.23 | 11 | 20 | 21 | 0.19 |
| SIZP19S | SILZP19S | 19.05 | 24.8 | 44.45 | 3/4-16 | 25.02 | 28.58 | 22.23 | 17.45 | 0.6 | 73.03 | 44.45 | 95.25 | 7.92 | 25.4 | 10 | 29 | 29 | 0.285 |
| SIZP25S | SILZP25S | 25.4 | 32.2 | 69.8 | 5/4-12 | 37.72 | 44.45 | 34.93 | 25.4 | 0.6 | 104.78 | 53.98 | 139.7 | 11.1 | 38.1 | 14 | 60 | 101 | 1 |
SIZP-S Rod ends is the same design with PHS but in inch dimensions..
Note:
– Steel/Bronze sliding contact, relubrication maintenance required.
– SILZP means rod body with left-hand female thread.
– Surface of the rod body is white zinc plated.
