KF Rod End Catalogue list

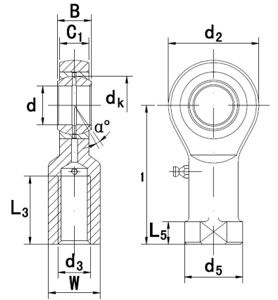

| Other Bearing No. | Dimensions | ||||||||||||||
| SPEC.1 | SPEC.2 | d | d2 | d3 | d5 | B | C1 | L5 | h1 | L3 | dk | W | a | Load ratings | Mass |
| KF20-1 | KFL20-1 | 31.75 | 69.8 | 1 1/4-12 | 41.28 | 27.762 | 23.8 | 12.7 | 104.8 | 53.98 | 45.59 | 38.1 | 3.5 | 197.91 | 0.964 |
| KF24-1 | KFL24-1 | 38.1 | 88.9 | 1 1/2-12 | 57.15 | 33.325 | 28.575 | 22.23 | 136.5 | 66.6 | 54.74 | 50.8 | 3.2 | 288.06 | 2.95 |
| KF32-1 | KFL32-1 | 50.8 | 127 | 2-12 | 79.38 | 44.45 | 38.1 | 52.37 | 203.2 | 101.6 | 73.03 | 69.8 | 3 | 682. | 6.8 |
Findbearing.com supplies high quality KF Rod ends.
Note:
– Steel/Steel, maintenance required.
– The KF series is the same series with SI-ES(2RS) but in Inch dimensions. It is composed of radial shperical plain bearing GEZ – ES (2RS) and rod body.
– KFL means rod body with left-hand female thread.
– Surface of the rod body is white zinc plated, rod body has a grease nipple.
