UCF200 ball bearing unit catalogue list

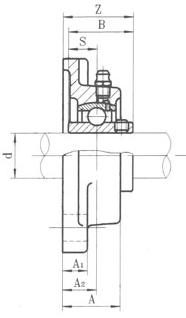

| Dimension | |||||||||
| SPEC.1 | Bore dia | L | J | S | A1 | A2 | A | Z | Bolt Used |
| UCF201 | 12(mm) | 86 | 64 | 15 | 12 | 25.5 | 33.3 | 31 | M10 |
| UCF201-8 | 1/2(inch) | 86 | 64 | 15 | 12 | 25.5 | 33.3 | 31 | 3/8 |
| UCF202 | 15(mm) | 86 | 64 | 15 | 12 | 25.5 | 33.3 | 31 | M10 |
| UCF202-10 | 5/8(inch) | 86 | 64 | 15 | 12 | 25.5 | 33.3 | 31 | 3/8 |
| UCF202-9 | 9/16(inch) | 86 | 64 | 15 | 12 | 25.5 | 33.3 | 31 | 3/8 |
| UCF203 | 17(mm) | 86 | 64 | 15 | 12 | 25.5 | 33.3 | 31 | M10 |
| UCF203-11 | 11/16(inch) | 86 | 64 | 15 | 12 | 25.5 | 33.3 | 31 | 3/8 |
| UCF204 | 20(mm) | 86 | 64 | 15 | 12 | 25.5 | 33.3 | 31 | M10 |
| UCF204-12 | 3/4(inch) | 86 | 64 | 15 | 12 | 25.5 | 33.3 | 31 | 3/8 |
| UCF205 | 25(mm) | 95 | 70 | 16 | 14 | 27 | 35.8 | 34.1 | M10 |
| UCF205-13 | 13/16(inch) | 95 | 70 | 16 | 14 | 27 | 35.8 | 34.1 | 3/8 |
| UCF205-14 | 7/8(inch) | 95 | 70 | 16 | 14 | 27 | 35.8 | 34.1 | 3/8 |
| UCF205-15 | 15/16(inch) | 95 | 70 | 16 | 14 | 27 | 35.8 | 34.1 | 3/8 |
| UCF205-16 | 1(inch) | 95 | 70 | 16 | 14 | 27 | 35.8 | 34.1 | 3/8 |
| UCF206 | 30(mm) | 108 | 83 | 18 | 14 | 31 | 40.2 | 38.1 | M10 |
| UCF206-17 | 1-1/16(inch) | 108 | 83 | 18 | 14 | 31 | 40.2 | 38.1 | 3/8 |
| UCF206-18 | 1-1/8(inch) | 108 | 83 | 18 | 14 | 31 | 40.2 | 38.1 | 3/8 |
| UCF206-19 | 1-3/16(inch) | 108 | 83 | 18 | 14 | 31 | 40.2 | 38.1 | 3/8 |
| UCF206-20 | 1-1/4(inch) | 108 | 83 | 18 | 14 | 31 | 40.2 | 38.1 | 3/8 |
| UCF207 | 35(mm) | 117 | 92 | 19 | 16 | 34 | 44.4 | 42.9 | M12 |
| UCF207-20 | 1-1/4(inch) | 117 | 92 | 19 | 16 | 34 | 44.4 | 42.9 | 7/16 |
| UCF207-21 | 1-5/16(inch) | 117 | 92 | 19 | 16 | 34 | 44.4 | 42.9 | 7/16 |
| UCF207-22 | 1-3/8(inch) | 117 | 92 | 19 | 16 | 34 | 44.4 | 42.9 | 7/16 |
| UCF207-23 | 1-7/16(inch) | 117 | 92 | 19 | 16 | 34 | 44.4 | 42.9 | 7/16 |
| UCF208 | 40(mm) | 130 | 102 | 21 | 16 | 36 | 51.2 | 49.2 | M14 |
| UCF208-24 | 1-1/2(inch) | 130 | 102 | 21 | 16 | 36 | 51.2 | 49.2 | 1/2 |
| UCF208-25 | 1-9/16(inch) | 130 | 102 | 21 | 16 | 36 | 51.2 | 49.2 | 1/2 |
| UCF209 | 45(mm) | 137 | 105 | 22 | 18 | 38 | 52.2 | 49.2 | M14 |
| UCF209-26 | 1-5/8(inch) | 137 | 105 | 22 | 18 | 38 | 52.2 | 49.2 | 1/2 |
| UCF209-27 | 1-11/16(inch) | 137 | 105 | 22 | 18 | 38 | 52.2 | 49.2 | 1/2 |
| UCF209-28 | 1-3/4(inch) | 137 | 105 | 22 | 18 | 38 | 52.2 | 49.2 | 1/2 |
| UCF210 | 50(mm) | 143 | 111 | 22 | 18 | 40 | 54.6 | 51.6 | M14 |
| UCF210-29 | 1-13/16(inch) | 143 | 111 | 22 | 18 | 40 | 54.6 | 51.6 | 1/2 |
| UCF210-30 | 1-7/8(inch) | 143 | 111 | 22 | 18 | 40 | 54.6 | 51.6 | 1/2 |
| UCF210-31 | 1-15/16(inch) | 143 | 111 | 22 | 18 | 40 | 54.6 | 51.6 | 1/2 |
| UCF210-32 | 2(inch) | 143 | 111 | 22 | 18 | 40 | 54.6 | 51.6 | 1/2 |
| UCF211 | 55(mm) | 162 | 130 | 25 | 20 | 43 | 58.4 | 55.6 | M16 |
| UCF211-32 | 2(inch) | 162 | 130 | 25 | 20 | 43 | 58.4 | 55.6 | 5/8 |
| UCF211-33 | 2-1/16(inch) | 162 | 130 | 25 | 20 | 43 | 58.4 | 55.6 | 5/8 |
| UCF211-34 | 2-1/8(inch) | 162 | 130 | 25 | 20 | 43 | 58.4 | 55.6 | 5/8 |
| UCF211-35 | 2-3/16(inch) | 162 | 130 | 25 | 20 | 43 | 58.4 | 55.6 | 5/8 |
| UCF212 | 60(mm) | 175 | 143 | 29 | 20 | 48 | 68.7 | 65.0 | M16 |
| UCF212-36 | 2-1/4(inch) | 175 | 143 | 29 | 20 | 48 | 68.7 | 65.0 | 5/8 |
| UCF212-37 | 2-5/16(inch) | 175 | 143 | 29 | 20 | 48 | 68.7 | 65.0 | 5/8 |
| UCF212-38 | 2-3/8(inch) | 175 | 143 | 29 | 20 | 48 | 68.7 | 65.0 | 5/8 |
| UCF212-39 | 2-7/16(inch) | 175 | 143 | 29 | 20 | 48 | 68.7 | 65.0 | 5/8 |
| UCF213 | 65(mm) | 187 | 149 | 30 | 20 | 50 | 69.7 | 65.0 | M16 |
| UCF213-40 | 2-1/2(inch) | 187 | 149 | 30 | 20 | 50 | 69.7 | 65.0 | 5/8 |
| UCF213-41 | 2-9/16(inch) | 187 | 149 | 30 | 20 | 50 | 69.7 | 65.0 | 5/8 |
| UCF214 | 70(mm) | 193 | 152 | 31 | 24 | 54 | 75.4 | 74.5 | M16 |
| UCF214-42 | 2-5/8(inch) | 193 | 152 | 31 | 24 | 54 | 75.4 | 74.5 | 5/8 |
| UCF214-43 | 2-11/16(inch) | 193 | 152 | 31 | 24 | 54 | 75.4 | 74.5 | 5/8 |
| UCF214-44 | 2-3/4(inch) | 193 | 152 | 31 | 24 | 54 | 75.4 | 74.5 | 5/8 |
| UCF215 | 75(mm) | 200 | 159 | 34 | 24 | 56 | 78.5 | 77.8 | M16 |
| UCF215-45 | 2-13/16(inch) | 200 | 159 | 34 | 24 | 56 | 78.5 | 77.8 | 5/8 |
| UCF215-46 | 2-7/8(inch) | 200 | 159 | 34 | 24 | 56 | 78.5 | 77.8 | 5/8 |
| UCF215-47 | 2-15/16(inch) | 200 | 159 | 34 | 24 | 56 | 78.5 | 77.8 | 5/8 |
| UCF215-48 | 3(inch) | 200 | 159 | 34 | 24 | 56 | 78.5 | 77.8 | 5/8 |
| UCF216 | 80(mm) | 208 | 165 | 34 | 24 | 58 | 83.3 | 82.5 | M20 |
| UCF216-50 | 3-1/8(inch) | 208 | 165 | 34 | 24 | 58 | 83.3 | 82.5 | 3/4 |
| UCF217 | 85(mm) | 220 | 175 | 36 | 26 | 63 | 87.5 | 85.7 | M20 |
| UCF217-52 | 3-1/4(inch) | 220 | 175 | 36 | 26 | 63 | 87.5 | 85.7 | 3/4 |
| UCF218 | 90(mm) | 235 | 187 | 40 | 26 | 68 | 96.3 | 96 | M20 |
| UCF218-56 | 3-1/2(inch) | 235 | 187 | 40 | 26 | 68 | 96.3 | 96 | 3/4 |
Findbearing.com supplies high quality UCF200 ball bearing unit.
Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
