UCFCSX00 ball bearing unit catalogue list

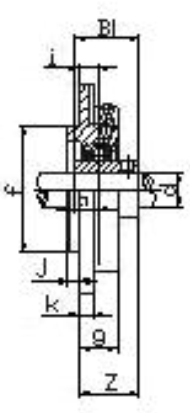

| Dimension | ||||||||||||||
| SPEC.1 | Bore dia | a | p | e | i | s | j | k | g | f | z | Bi | n | Bolt Used |
| UCFCSX05 | 25(mm) | 111 | 92 | 65 | 10 | 9.5 | 6.4 | 9.5 | 24 | 76.2 | 32.2 | 38.1 | 15.9 | M8 |
| UCFCSX05-16 | 1(inch) | 111 | 92 | 65 | 10 | 9.5 | 6.4 | 9.5 | 24 | 76.2 | 32.2 | 38.1 | 15.9 | 5/16 |
| UCFCSX06 | 30(mm) | 127 | 105 | 74.2 | 8 | 12 | 9.5 | 9.5 | 22 | 85.7 | 33.4 | 42.9 | 17.5 | M10 |
| UCFCSX06-19 | 1-3/16(inch) | 127 | 105 | 74.2 | 8 | 12 | 9.5 | 9.5 | 22 | 85.7 | 33.4 | 42.9 | 17.5 | 3/8 |
| UCFCSX06-20 | 1-1/4(inch) | 127 | 105 | 74.2 | 8 | 12 | 9.5 | 9.5 | 22 | 85.7 | 33.4 | 42.9 | 17.5 | 3/8 |
| UCFCSX07 | 35(mm) | 133 | 111 | 78.5 | 9 | 12 | 11.1 | 11 | 26 | 92 | 39.2 | 49.2 | 19 | M10 |
| UCFCSX07-22 | 1-3/8(inch) | 133 | 111 | 78.5 | 9 | 12 | 11.1 | 11 | 26 | 92 | 39.2 | 49.2 | 19 | 3/8 |
| UCFCSX07-23 | 1-7/16(inch) | 133 | 111 | 78.5 | 9 | 12 | 11.1 | 11 | 26 | 92 | 39.2 | 49.2 | 19 | 3/8 |
| UCFCSX08 | 40(mm) | 133 | 111 | 78.5 | 9 | 12 | 11.1 | 11 | 26 | 92 | 39.2 | 49.2 | 19 | M10 |
| UCFCSX08-24 | 1-1/2(inch) | 133 | 111 | 78.5 | 9 | 12 | 11.1 | 11 | 26 | 92 | 39.2 | 49.2 | 19 | 3/8 |
| UCFCSX09 | 45(mm) | 156 | 130 | 92 | 8 | 14 | 11.9 | 11 | 25 | 108 | 40.6 | 51.6 | 19 | M12 |
| UCFCSX09-26 | 1-5/8(inch) | 156 | 130 | 92 | 8 | 14 | 11.9 | 11 | 25 | 108 | 40.6 | 51.6 | 19 | 7/16 |
| UCFCSX09-27 | 1-11/16(inch) | 156 | 130 | 92 | 8 | 14 | 11.9 | 11 | 25 | 108 | 40.6 | 51.6 | 19 | 7/16 |
| UCFCSX09-28 | 1-3/4(inch) | 156 | 130 | 92 | 8 | 14 | 11.9 | 11 | 25 | 108 | 40.6 | 51.6 | 19 | 7/16 |
| UCFCSX10 | 50(mm) | 162 | 137 | 96.2 | 7 | 14 | 15.9 | 11 | 25 | 114 | 40.4 | 55.6 | 22.2 | M12 |
| UCFCSX10-31 | 1-15/16(inch) | 162 | 137 | 96.2 | 7 | 14 | 15.9 | 11 | 25 | 114 | 40.4 | 55.6 | 22.2 | 7/16 |
| UCFCSX10-32 | 2(inch) | 162 | 137 | 96.2 | 7 | 14 | 15.9 | 11 | 25 | 114 | 40.4 | 55.6 | 22.2 | 7/16 |
| UCFCSX11 | 55(mm) | 181 | 152 | 108 | 4 | 16 | 22.2 | 12.7 | 26 | 127 | 43.7 | 65.0 | 25.4 | M14 |
| UCFCSX11-35 | 2-3/16(inch) | 181 | 152 | 108 | 4 | 16 | 22.2 | 12.7 | 26 | 127 | 43.7 | 65.0 | 25.4 | 1/2 |
| UCFCSX11-36 | 2-1/4(inch) | 181 | 152 | 108 | 4 | 16 | 22.2 | 12.7 | 26 | 127 | 43.7 | 65.0 | 25.4 | 1/2 |
| UCFCSX12 | 60(mm) | 194 | 165 | 117 | 11 | 16 | 19.8 | 14.3 | 33 | 140 | 50.7 | 65.0 | 25.4 | M14 |
| UCFCSX12-38 | 2-3/8(inch) | 194 | 165 | 117 | 11 | 16 | 19.8 | 14.3 | 33 | 140 | 50.7 | 65.0 | 25.4 | 1/2 |
| UCFCSX12-39 | 2-7/16(inch) | 194 | 165 | 117 | 11 | 16 | 19.8 | 14.3 | 33 | 140 | 50.7 | 65.0 | 25.4 | 1/2 |
| UCFCSX13 | 65(mm) | 194 | 165 | 117 | 11 | 16 | 19.8 | 14.3 | 33 | 140 | 55.4 | 74.5 | 30.2 | M14 |
| UCFCSX13-40 | 2-1/2(inch) | 194 | 165 | 117 | 11 | 16 | 19.8 | 14.3 | 33 | 140 | 55.4 | 74.5 | 30.2 | 1/2 |
| UCFCSX14 | 70(mm) | 222 | 191 | 134 | 14 | 19 | 19.8 | 14.3 | 36 | 162 | 58.5 | 77.8 | 33.3 | M16 |
| UCFCSX14-44 | 2-3/4(inch) | 222 | 191 | 134 | 14 | 19 | 19.8 | 14.3 | 36 | 162 | 58.5 | 77.8 | 33.3 | 5/8 |
| UCFCSX15 | 75(mm) | 222 | 191 | 134 | 12 | 19 | 22 | 15.9 | 35 | 162 | 61.3 | 82.5 | 33.3 | M16 |
| UCFCSX15-47 | 2-15/16(inch) | 222 | 191 | 134 | 12 | 19 | 22 | 15.9 | 35 | 162 | 61.3 | 82.5 | 33.3 | 5/8 |
| UCFCSX15-48 | 3(inch) | 222 | 191 | 134 | 12 | 19 | 22 | 15.9 | 35 | 162 | 61.3 | 82.5 | 33.3 | 5/8 |
| UCFCSX16 | 80(mm) | 260 | 219 | 155 | 10 | 23 | 25.4 | 19 | 36 | 187 | 61.6 | 85.7 | 34.1 | M20 |
| UCFCSX16-50 | 3-1/4(inch) | 260 | 219 | 155 | 10 | 23 | 25.4 | 19 | 36 | 187 | 61.6 | 85.7 | 34.1 | 3/4 |
| UCFCSX17 | 85(mm) | 260 | 219 | 155 | 10 | 23 | 25.4 | 19 | 36 | 187 | 66.3 | 96 | 39.7 | M20 |
| UCFCSX17-55 | 3-7/16(inch) | 260 | 219 | 155 | 10 | 23 | 25.4 | 19 | 36 | 187 | 66.3 | 96 | 39.7 | 3/4 |
| UCFCSX18 | 90(mm) | 260 | 219 | 155 | 12 | 23 | 27.8 | 19 | 43 | 187 | 73.0 | 104 | 42.9 | M20 |
| UCFCSX20 | 100(mm) | 276 | 238 | 168 | 22 | 23 | 27.8 | 22.2 | 66 | 206 | 90.3 | 118 | 49.2 | M20 |
Findbearing.com supplies high quality UCFCSX00 ball bearing unit.
Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
