UCPH200 ball bearing unit catalogue list

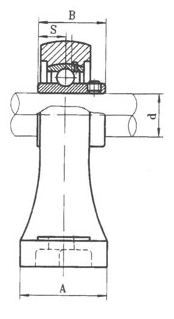

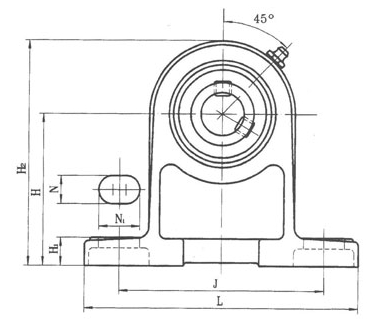

| Dimension | |||||||||||
| SPEC.1 | Bore dia | H | L | J | A | N1 | H1 | H2 | B | S | Bolt Used |
| UCPH201 | 12(mm) | 70 | 127 | 95 | 40 | 19 | 15 | 101 | 31 | 12.7 | M10 |
| UCPH201-8 | 1/2(inch) | 70 | 127 | 95 | 40 | 19 | 15 | 101 | 31 | 12.7 | 3/8 |
| UCPH202 | 15(mm) | 70 | 127 | 95 | 40 | 19 | 15 | 101 | 31 | 12.7 | M10 |
| UCPH202-10 | 5/8(inch) | 70 | 127 | 95 | 40 | 19 | 15 | 101 | 31 | 12.7 | 3/8 |
| UCPH202-9 | 9/16(inch) | 70 | 127 | 95 | 40 | 19 | 15 | 101 | 31 | 12.7 | 3/8 |
| UCPH203 | 17(mm) | 70 | 127 | 95 | 40 | 19 | 15 | 101 | 31 | 12.7 | M10 |
| UCPH203-11 | 11/16(inch) | 70 | 127 | 95 | 40 | 19 | 15 | 101 | 31 | 12.7 | 3/8 |
| UCPH204 | 20(mm) | 70 | 127 | 95 | 40 | 19 | 15 | 101 | 31 | 12.7 | M10 |
| UCPH204-12 | 3/4(inch) | 70 | 127 | 95 | 40 | 19 | 15 | 101 | 31 | 12.7 | 3/8 |
| UCPH205 | 25(mm) | 80 | 140 | 105 | 50 | 19 | 16 | 114 | 34.1 | 14.3 | M10 |
| UCPH205-13 | 13/16(inch) | 80 | 140 | 105 | 50 | 19 | 16 | 114 | 34.1 | 14.3 | 3/8 |
| UCPH205-14 | 7/8(inch) | 80 | 140 | 105 | 50 | 19 | 16 | 114 | 34.1 | 14.3 | 3/8 |
| UCPH205-15 | 15/16(inch) | 80 | 140 | 105 | 50 | 19 | 16 | 114 | 34.1 | 14.3 | 3/8 |
| UCPH205-16 | 1(inch) | 80 | 140 | 105 | 50 | 19 | 16 | 114 | 34.1 | 14.3 | 3/8 |
| UCPH206 | 30(mm) | 90 | 165 | 121 | 50 | 21 | 18 | 130 | 38.1 | 15.9 | M14 |
| UCPH206-17 | 1-1/16(inch) | 90 | 165 | 121 | 50 | 21 | 18 | 130 | 38.1 | 15.9 | 1/2 |
| UCPH206-18 | 1-1/8(inch) | 90 | 165 | 121 | 50 | 21 | 18 | 130 | 38.1 | 15.9 | 1/2 |
| UCPH206-19 | 1-3/16(inch) | 90 | 165 | 121 | 50 | 21 | 18 | 130 | 38.1 | 15.9 | 1/2 |
| UCPH206-20 | 1-1/4(inch) | 90 | 165 | 121 | 50 | 21 | 18 | 130 | 38.1 | 15.9 | 1/2 |
| UCPH207 | 35(mm) | 95 | 167 | 127 | 60 | 21 | 19 | 140 | 42.9 | 17.5 | M14 |
| UCPH207-20 | 1-1/4(inch) | 95 | 167 | 127 | 60 | 21 | 19 | 140 | 42.9 | 17.5 | 1/2 |
| UCPH207-21 | 1-5/16(inch) | 95 | 167 | 127 | 60 | 21 | 19 | 140 | 42.9 | 17.5 | 1/2 |
| UCPH207-22 | 1-3/8(inch) | 95 | 167 | 127 | 60 | 21 | 19 | 140 | 42.9 | 17.5 | 1/2 |
| UCPH207-23 | 1-7/16(inch) | 95 | 167 | 127 | 60 | 21 | 19 | 140 | 42.9 | 17.5 | 1/2 |
| UCPH208 | 40(mm) | 100 | 184 | 137 | 70 | 25 | 19 | 149 | 49.2 | 19 | M14 |
| UCPH208-24 | 1-1/2(inch) | 100 | 184 | 137 | 70 | 25 | 19 | 149 | 49.2 | 19 | 1/2 |
| UCPH208-25 | 1-9/16(inch) | 100 | 184 | 137 | 70 | 25 | 19 | 149 | 49.2 | 19 | 1/2 |
| UCPH209 | 45(mm) | 105 | 190 | 146 | 70 | 25 | 20 | 157 | 49.2 | 19 | M14 |
| UCPH209-26 | 1-5/8(inch) | 105 | 190 | 146 | 70 | 25 | 20 | 157 | 49.2 | 19 | 1/2 |
| UCPH209-27 | 1-11/16(inch) | 105 | 190 | 146 | 70 | 25 | 20 | 157 | 49.2 | 19 | 1/2 |
| UCPH209-28 | 1-3/4(inch) | 105 | 190 | 146 | 70 | 25 | 20 | 157 | 49.2 | 19 | 1/2 |
| UCPH210 | 50(mm) | 110 | 206 | 159 | 70 | 25 | 22 | 165 | 51.6 | 19 | M16 |
| UCPH210-29 | 1-13/16(inch) | 110 | 206 | 159 | 70 | 25 | 22 | 165 | 51.6 | 19 | 5/8 |
| UCPH210-30 | 1-7/8(inch) | 110 | 206 | 159 | 70 | 25 | 22 | 165 | 51.6 | 19 | 5/8 |
| UCPH210-31 | 1-15/16(inch) | 110 | 206 | 159 | 70 | 25 | 22 | 165 | 51.6 | 19 | 5/8 |
| UCPH210-32 | 2(inch) | 110 | 206 | 159 | 70 | 25 | 22 | 165 | 51.6 | 19 | 5/8 |
| UCPH211 | 55(mm) | 120 | 219 | 171 | 75 | 22 | 22 | 181 | 55.6 | 22.2 | M16 |
| UCPH211-32 | 2(inch) | 120 | 219 | 171 | 75 | 22 | 22 | 181 | 55.6 | 22.2 | 5/8 |
| UCPH211-33 | 2-1/16(inch) | 120 | 219 | 171 | 75 | 22 | 22 | 181 | 55.6 | 22.2 | 5/8 |
| UCPH211-34 | 2-1/8(inch) | 120 | 219 | 171 | 75 | 22 | 22 | 181 | 55.6 | 22.2 | 5/8 |
| UCPH211-35 | 2-3/16(inch) | 120 | 219 | 171 | 75 | 22 | 22 | 181 | 55.6 | 22.2 | 5/8 |
| UCPH212 | 60(mm) | 130 | 235 | 184 | 85 | 23 | 25 | 197 | 65.0 | 25.4 | M16 |
| UCPH212-36 | 2-1/4(inch) | 130 | 235 | 184 | 85 | 23 | 25 | 197 | 65.0 | 25.4 | 5/8 |
| UCPH212-37 | 2-5/16(inch) | 130 | 235 | 184 | 85 | 23 | 25 | 197 | 65.0 | 25.4 | 5/8 |
| UCPH212-38 | 2-3/8(inch) | 130 | 235 | 184 | 85 | 23 | 25 | 197 | 65.0 | 25.4 | 5/8 |
| UCPH212-39 | 2-7/16(inch) | 130 | 235 | 184 | 85 | 23 | 25 | 197 | 65.0 | 25.4 | 5/8 |
| UCPH213 | 65(mm) | 140 | 262 | 203 | 95 | 28 | 27 | 212 | 65.0 | 25.4 | M20 |
| UCPH213-40 | 2-1/2(inch) | 140 | 262 | 203 | 95 | 28 | 27 | 212 | 65.0 | 25.4 | 3/4 |
| UCPH213-41 | 2-16/9(inch) | 140 | 262 | 203 | 95 | 28 | 27 | 212 | 65.0 | 25.4 | 3/4 |
| UCPH214 | 70(mm) | 150 | 268 | 210 | 105 | 28 | 28 | 225 | 74.5 | 30.2 | M20 |
| UCPH214-42 | 2-5/8(inch) | 150 | 268 | 210 | 105 | 28 | 28 | 225 | 74.5 | 30.2 | 3/4 |
| UCPH214-43 | 2-11/16(inch) | 150 | 268 | 210 | 105 | 28 | 28 | 225 | 74.5 | 30.2 | 3/4 |
| UCPH214-44 | 2-3/4(inch) | 150 | 268 | 210 | 105 | 28 | 28 | 225 | 74.5 | 30.2 | 3/4 |
| UCPH215 | 75(mm) | 160 | 275 | 217 | 115 | 28 | 29 | 238 | 77.8 | 33.3 | M20 |
| UCPH215-45 | 2-13/16(inch) | 160 | 275 | 217 | 115 | 28 | 29 | 238 | 77.8 | 33.3 | 3/4 |
| UCPH215-46 | 2-7/8(inch) | 160 | 275 | 217 | 115 | 28 | 29 | 238 | 77.8 | 33.3 | 3/4 |
| UCPH215-47 | 2-15/16(inch) | 160 | 275 | 217 | 115 | 28 | 29 | 238 | 77.8 | 33.3 | 3/4 |
| UCPH215-48 | 3(inch) | 160 | 275 | 217 | 115 | 28 | 29 | 238 | 77.8 | 33.3 | 3/4 |
| UCPH216 | 80(mm) | 170 | 290 | 232 | 125 | 28 | 30 | 253 | 82.5 | 33.3 | M20 |
| UCPH216-50 | 3-1/8(inch) | 170 | 290 | 232 | 125 | 28 | 30 | 253 | 82.5 | 33.3 | 3/4 |
Findbearing.com supplies high quality UCPH200 ball bearing unit.
Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
