SUCFC200 stainless steel ball bearing catalogue list

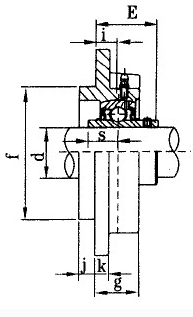

| Dimension | ||||||||||||
| SPEC.1 | Bore dia | a | p | e | i | f | g | j | N | k | E | S |
| SUCFC201 | 12(mm) | 100 | 78 | 55.1 | 10 | 62 | 20.5 | 5 | 12 | 7 | 28.3 | 12.7 |
| SUCFC201-8 | 1/2(inch) | 100 | 78 | 55.1 | 10 | 62 | 20.5 | 5 | 12 | 7 | 28.3 | 12.7 |
| SUCFC202 | 15(mm) | 100 | 78 | 55.1 | 10 | 62 | 20.5 | 5 | 12 | 7 | 28.3 | 12.7 |
| SUCFC202-10 | 5/8(inch) | 100 | 78 | 55.1 | 10 | 62 | 20.5 | 5 | 12 | 7 | 28.3 | 12.7 |
| SUCFC203 | 17(mm) | 100 | 78 | 55.1 | 10 | 62 | 20.5 | 5 | 12 | 7 | 28.3 | 12.7 |
| SUCFC203-11 | 13/16(inch) | 100 | 78 | 55.1 | 10 | 62 | 20.5 | 5 | 12 | 7 | 28.3 | 12.7 |
| SUCFC204 | 20(mm) | 100 | 78 | 55.1 | 10 | 62 | 20.5 | 5 | 12 | 7 | 28.3 | 12.7 |
| SUCFC204-12 | 3/4(inch) | 100 | 78 | 55.1 | 10 | 62 | 20.5 | 5 | 12 | 7 | 28.3 | 12.7 |
| SUCFC205 | 25(mm) | 115 | 90 | 63.6 | 10 | 70 | 21 | 6 | 12 | 7 | 29.8 | 14.3 |
| SUCFC205-14 | 7/8(inch) | 115 | 90 | 63.6 | 10 | 70 | 21 | 6 | 12 | 7 | 29.8 | 14.3 |
| SUCFC205-15 | 15/16(inch) | 115 | 90 | 63.6 | 10 | 70 | 21 | 6 | 12 | 7 | 29.8 | 14.3 |
| SUCFC205-16 | 1(inch) | 115 | 90 | 63.6 | 10 | 70 | 21 | 6 | 12 | 7 | 29.8 | 14.3 |
| SUCFC206 | 30(mm) | 125 | 100 | 70.7 | 10 | 80 | 23 | 8 | 12 | 8 | 32.2 | 15.9 |
| SUCFC206-17 | 1(inch) | 125 | 100 | 70.7 | 10 | 80 | 23 | 8 | 12 | 8 | 32.2 | 15.9 |
| SUCFC206-18 | 1-1/16(inch) | 125 | 100 | 70.7 | 10 | 80 | 23 | 8 | 12 | 8 | 32.2 | 15.9 |
| SUCFC206-19 | 1-1/8(inch) | 125 | 100 | 70.7 | 10 | 80 | 23 | 8 | 12 | 8 | 32.2 | 15.9 |
| SUCFC206-20 | 1-3/16(inch) | 125 | 100 | 70.7 | 10 | 80 | 23 | 8 | 12 | 8 | 32.2 | 15.9 |
| SUCFC207 | 35(mm) | 135 | 110 | 77.8 | 11 | 90 | 26 | 8 | 14 | 9 | 36.4 | 17.5 |
| SUCFC207-20 | 1-1/4(inch) | 135 | 110 | 77.8 | 11 | 90 | 26 | 8 | 14 | 9 | 36.4 | 17.5 |
| SUCFC207-21 | 1-5/16(inch) | 135 | 110 | 77.8 | 11 | 90 | 26 | 8 | 14 | 9 | 36.4 | 17.5 |
| SUCFC207-22 | 1-3/8(inch) | 135 | 110 | 77.8 | 11 | 90 | 26 | 8 | 14 | 9 | 36.4 | 17.5 |
| SUCFC207-23 | 1-7/16(inch) | 135 | 110 | 77.8 | 11 | 90 | 26 | 8 | 14 | 9 | 36.4 | 17.5 |
| SUCFC208 | 40(mm) | 145 | 120 | 84.8 | 11 | 100 | 26 | 10 | 14 | 9 | 41.2 | 19 |
| SUCFC208-24 | 1-1/2(inch) | 145 | 120 | 84.8 | 11 | 100 | 26 | 10 | 14 | 9 | 41.2 | 19 |
| SUCFC208-25 | 1-9/16(inch) | 145 | 120 | 84.8 | 11 | 100 | 26 | 10 | 14 | 9 | 41.2 | 19 |
| SUCFC209 | 45(mm) | 160 | 132 | 93.3 | 10 | 105 | 26 | 12 | 16 | 14 | 40.2 | 19 |
| SUCFC209-26 | 1-5/8(inch) | 160 | 132 | 93.3 | 10 | 105 | 26 | 12 | 16 | 14 | 40.2 | 19 |
| SUCFC209-27 | 1-11/16(inch) | 160 | 132 | 93.3 | 10 | 105 | 26 | 12 | 16 | 14 | 40.2 | 19 |
| SUCFC209-28 | 1-3/4(inch) | 160 | 132 | 93.3 | 10 | 105 | 26 | 12 | 16 | 14 | 40.2 | 19 |
| SUCFC210 | 50(mm) | 165 | 138 | 97.5 | 10 | 110 | 28 | 12 | 16 | 14 | 42.6 | 19 |
| SUCFC210-29 | 1-13/16(inch) | 165 | 138 | 97.5 | 10 | 110 | 28 | 12 | 16 | 14 | 42.6 | 19 |
| SUCFC210-30 | 1-7/8(inch) | 165 | 138 | 97.5 | 10 | 110 | 28 | 12 | 16 | 14 | 42.6 | 19 |
| SUCFC210-31 | 1-15/16(inch) | 165 | 138 | 97.5 | 10 | 110 | 28 | 12 | 16 | 14 | 42.6 | 19 |
| SUCFC210-32 | 2(inch) | 165 | 138 | 97.5 | 10 | 110 | 28 | 12 | 16 | 14 | 42.6 | 19 |
| SUCFC211 | 55(mm) | 185 | 150 | 106.1 | 13 | 125 | 31 | 12 | 19 | 15 | 46.4 | 22.2 |
| SUCFC211-32 | 2(inch) | 185 | 150 | 106.1 | 13 | 125 | 31 | 12 | 19 | 15 | 46.4 | 22.2 |
| SUCFC211-33 | 2-1/16(inch) | 185 | 150 | 106.1 | 13 | 125 | 31 | 12 | 19 | 15 | 46.4 | 22.2 |
| SUCFC211-34 | 2-1/8(inch) | 185 | 150 | 106.1 | 13 | 125 | 31 | 12 | 19 | 15 | 46.4 | 22.2 |
| SUCFC211-35 | 2-3/16(inch) | 185 | 150 | 106.1 | 13 | 125 | 31 | 12 | 19 | 15 | 46.4 | 22.2 |
| SUCFC212 | 60(mm) | 195 | 160 | 113.1 | 17 | 135 | 36 | 12 | 19 | 15 | 56.7 | 25.4 |
| SUCFC212-36 | 2-1/4(inch) | 195 | 160 | 113.1 | 17 | 135 | 36 | 12 | 19 | 15 | 56.7 | 25.4 |
| SUCFC212-37 | 2-5/16(inch) | 195 | 160 | 113.1 | 17 | 135 | 36 | 12 | 19 | 15 | 56.7 | 25.4 |
| SUCFC212-38 | 2-3/8(inch) | 195 | 160 | 113.1 | 17 | 135 | 36 | 12 | 19 | 15 | 56.7 | 25.4 |
| SUCFC212-39 | 2-7/16(inch) | 195 | 160 | 113.1 | 17 | 135 | 36 | 12 | 19 | 15 | 56.7 | 25.4 |
Findbearing.com supplies high quality SUCFC200 stainless steel ball bearing.
Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
