HCFS200

HCFS200 ball bearing unit catalogue list

HCFS200 - ball bearing unit

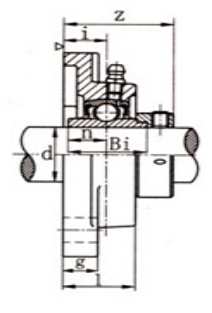

		Dimension
SPEC.1	Bore dia	a	e	i	g	l	s	n	Z	Bolt Used
HCFS201	12mm	86	63.5	19	15	29.5	11.5	17.1	45.5	M10
HCFS201-8	1/2inch	86	63.5	19	15	29.5	11.5	17.1	45.5	3/8
HCFS202	15mm	86	63.5	19	15	29.5	11.5	17.1	45.5	M10
HCFS202-10	5/8inch	86	63.5	19	15	29.5	11.5	17.1	45.5	3/8
HCFS202-9	9/16inch	86	63.5	19	15	29.5	11.5	17.1	45.5	3/8
HCFS203-11	11/16inch	86	63.5	19	15	29.5	11.5	17.1	45.5	3/8
HCFS204	20mm	86	63.5	19	15	29.5	11.5	17.1	45.5	M10
HCFS204-12	3/4inch	86	63.5	19	15	29.5	11.5	17.1	45.5	3/8
HCFS205	25mm	93	70	19	15	30	11.5	17.5	45.9	M10
HCFS205-13	13/16inch	93	70	19	15	30	11.5	17.5	45.9	3/8
HCFS205-14	7/8inch	93	70	19	15	30	11.5	17.5	45.9	3/8
HCFS205-15	15/16inch	93	70	19	15	30	11.5	17.5	45.9	3/8
HCFS205-16	1inch	93	70	19	15	30	11.5	17.5	45.9	3/8
HCFS206	30mm	106	82.5	20	16	32.5	13	18.3	50.1	M12
HCFS206-17	1-1/16inch	106	82.5	20	16	32.5	13	18.3	50.1	7/16
HCFS206-18	1-1/8inch	106	82.5	20	16	32.5	13	18.3	50.1	7/16
HCFS206-19	1-3/16inch	106	82.5	20	16	32.5	13	18.3	50.1	7/16
HCFS206-20	1-1/4inch	106	82.5	20	16	32.5	13	18.3	50.1	7/16
HCFS207	35mm	116	92	21	17	35	13	18.8	53.3	M12
HCFS207-20	1-1/4inch	116	92	21	17	35	13	18.8	53.3	7/16
HCFS207-21	1-5/16inch	116	92	21	17	35	13	18.8	53.3	7/16
HCFS207-22	1-3/8inch	116	92	21	17	35	13	18.8	53.3	7/16
HCFS207-23	1-7/16inch	116	92	21	17	35	13	18.8	53.3	7/16
HCFS208	40mm	129	101.5	24	17	39	14	21.4	58.9	M12
HCFS208-24	1-1/2inch	129	101.5	24	17	39	14	21.4	58.9	7/16
HCFS208-25	1-9/16inch	129	101.5	24	17	39	14	21.4	58.9	7/16
HCFS209	45mm	135	105	24	18	40	16	21.4	58.9	M14
HCFS209-26	1-5/8inch	135	105	24	18	40	16	21.4	58.9	1/2
HCFS209-27	1-11/16inch	135	105	24	18	40	16	21.4	58.9	1/2
HCFS209-28	1-3/4inch	135	105	24	18	40	16	21.4	58.9	1/2
HCFS210	50mm	143	111	28	20	45	16	24.6	66.0	M14
HCFS210-29	1-13/16inch	143	111	28	20	45	16	24.6	66.0	1/2
HCFS210-30	1-7/8inch	143	111	28	20	45	16	24.6	66.0	1/2
HCFS210-31	1-15/16inch	143	111	28	20	45	16	24.6	66.0	1/2
HCFS210-32	2inch	143	111	28	20	45	16	24.6	66.0	1/2
HCFS211	55mm	162	130	31	21	49	17	27.8	74.5	M14
HCFS211-32	2inch	162	130	31	21	49	17	27.8	74.5	1/2
HCFS211-33	2-1/16inch	162	130	31	21	49	17	27.8	74.5	1/2
HCFS211-34	2-1/8inch	162	130	31	21	49	17	27.8	74.5	1/2
HCFS211-35	2-3/16inch	162	130	31	21	49	17	27.8	74.5	1/2
HCFS212	60mm	175	143	34	22	53.5	17	31	80.8	M14
HCFS212-36	2-1/4inch	175	143	34	22	53.5	17	31	80.8	1/2
HCFS212-37	2-5/16inch	175	143	34	22	53.5	17	31	80.8	1/2
HCFS212-38	2-3/8inch	175	143	34	22	53.5	17	31	80.8	1/2
HCFS212-39	2-7/16inch	175	143	34	22	53.5	17	31	80.8	1/2
HCFS213	65mm	184	149	38	22	58	18	34.1	89.5	M16
HCFS213-40	2-1/2inch	184	149	38	22	58	18	34.1	89.5	5/8
HCFS213-41	2-9/16inch	184	149	38	22	58	18	34.1	89.5	5/8
HCFS214	70mm	188	152	38	23	60	18	34.1	89.5	M16
HCFS214-42	2-5/8inch	188	152	38	23	60	18	34.1	89.5	5/8
HCFS214-43	2-11/16inch	188	152	38	23	60	18	34.1	89.5	5/8
HCFS214-44	2-3/4inch	188	152	38	23	60	18	34.1	89.5	5/8
HCFS215	75mm	200	152.4	41	24	62	20	37.3	95.8	M16
HCFS215-45	2-13/16inch	200	152.4	41	24	62	20	37.3	95.8	5/8
HCFS215-46	2-7/8inch	200	152.4	41	24	62	20	37.3	95.8	5/8
HCFS215-47	2-15/16inch	200	152.4	41	24	62	20	37.3	95.8	5/8
HCFS215-48	3inch	200	152.4	41	24	62	20	37.3	95.8	5/8

Findbearing.com supplies high quality HCFS200 ball bearing unit.

Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
