SUCF200 stainless steel ball bearing catalogue list

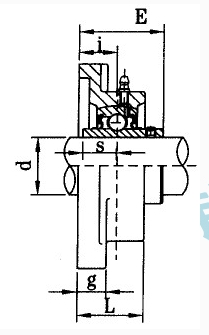

| Dimension | |||||||||
| SPEC.1 | Bore dia | a | e | i | g | L | N | E | S |
| SUCF201 | 12(mm) | 86 | 64 | 15 | 11 | 25.5 | 12 | 33.3 | 12.7 |
| SUCF201-8 | 1/2(inch) | 86 | 64 | 15 | 11 | 25.5 | 12 | 33.3 | 12.7 |
| SUCF202 | 15(mm) | 86 | 64 | 15 | 11 | 25.5 | 12 | 33.3 | 12.7 |
| SUCF202-10 | 5/8(inch) | 86 | 64 | 15 | 11 | 25.5 | 12 | 33.3 | 12.7 |
| SUCF203 | 17(mm) | 86 | 64 | 15 | 11 | 25.5 | 12 | 33.3 | 12.7 |
| SUCF203-11 | 13/16(inch) | 86 | 64 | 15 | 11 | 25.5 | 12 | 33.3 | 12.7 |
| SUCF204 | 20(mm) | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 12.7 |
| SUCF204-12 | 3/4(inch) | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 12.7 |
| SUCF205 | 25(mm) | 95 | 70 | 16 | 14 | 27 | 12 | 35.8 | 14.3 |
| SUCF205-14 | 7/8(inch) | 95 | 70 | 16 | 14 | 27 | 12 | 35.8 | 14.3 |
| SUCF205-15 | 15/16(inch) | 95 | 70 | 16 | 14 | 27 | 12 | 35.8 | 14.3 |
| SUCF205-16 | 1(inch) | 95 | 70 | 16 | 14 | 27 | 12 | 35.8 | 14.3 |
| SUCF206 | 30(mm) | 108 | 83 | 18 | 14.3 | 31 | 12 | 40.2 | 15.9 |
| SUCF206-17 | 1(inch) | 108 | 83 | 18 | 14.3 | 31 | 12 | 40.2 | 15.9 |
| SUCF206-18 | 1-1/16(inch) | 108 | 83 | 18 | 14.3 | 31 | 12 | 40.2 | 15.9 |
| SUCF206-19 | 1-1/8(inch) | 108 | 83 | 18 | 14.3 | 31 | 12 | 40.2 | 15.9 |
| SUCF206-20 | 1-3/16(inch) | 108 | 83 | 18 | 14.3 | 31 | 12 | 40.2 | 15.9 |
| SUCF207 | 35(mm) | 117 | 92 | 19 | 15.5 | 34 | 14 | 44.4 | 17.5 |
| SUCF207-20 | 1-1/4(inch) | 117 | 92 | 19 | 15.5 | 34 | 14 | 44.4 | 17.5 |
| SUCF207-21 | 1-5/16(inch) | 117 | 92 | 19 | 15.5 | 34 | 14 | 44.4 | 17.5 |
| SUCF207-22 | 1-3/8(inch) | 117 | 92 | 19 | 15.5 | 34 | 14 | 44.4 | 17.5 |
| SUCF207-23 | 1-7/16(inch) | 117 | 92 | 19 | 15.5 | 34 | 14 | 44.4 | 17.5 |
| SUCF208 | 40(mm) | 130 | 102 | 21 | 15.5 | 36 | 16 | 51.2 | 19 |
| SUCF208-24 | 1-1/2(inch) | 130 | 102 | 21 | 15.5 | 36 | 16 | 51.2 | 19 |
| SUCF208-25 | 1-9/16(inch) | 130 | 102 | 21 | 15.5 | 36 | 16 | 51.2 | 19 |
| SUCF209 | 45(mm) | 137 | 105 | 22 | 17.5 | 38 | 16 | 52.2 | 19 |
| SUCF209-26 | 1-5/8(inch) | 137 | 105 | 22 | 17.5 | 38 | 16 | 52.2 | 19 |
| SUCF209-27 | 1-11/16(inch) | 137 | 105 | 22 | 17.5 | 38 | 16 | 52.2 | 19 |
| SUCF209-28 | 1-3/4(inch) | 137 | 105 | 22 | 17.5 | 38 | 16 | 52.2 | 19 |
| SUCF210 | 50(mm) | 143 | 111 | 22 | 17.5 | 40 | 16 | 54.6 | 19 |
| SUCF210-29 | 1-13/16(inch) | 143 | 111 | 22 | 17.5 | 40 | 16 | 54.6 | 19 |
| SUCF210-30 | 1-7/8(inch) | 143 | 111 | 22 | 17.5 | 40 | 16 | 54.6 | 19 |
| SUCF210-31 | 1-15/16(inch) | 143 | 111 | 22 | 17.5 | 40 | 16 | 54.6 | 19 |
| SUCF210-32 | 2(inch) | 143 | 111 | 22 | 17.5 | 40 | 16 | 54.6 | 19 |
| SUCF211 | 55(mm) | 162 | 130 | 25 | 19.5 | 43 | 19 | 58.4 | 22.2 |
| SUCF211-32 | 2(inch) | 162 | 130 | 25 | 19.5 | 43 | 19 | 58.4 | 22.2 |
| SUCF211-33 | 2-1/16(inch) | 162 | 130 | 25 | 19.5 | 43 | 19 | 58.4 | 22.2 |
| SUCF211-34 | 2-1/8(inch) | 162 | 130 | 25 | 19.5 | 43 | 19 | 58.4 | 22.2 |
| SUCF211-35 | 2-3/16(inch) | 162 | 130 | 25 | 19.5 | 43 | 19 | 58.4 | 22.2 |
| SUCF212 | 60(mm) | 175 | 143 | 29 | 19.5 | 48 | 19 | 68.7 | 25.4 |
| SUCF212-36 | 2-1/4(inch) | 175 | 143 | 29 | 19.5 | 48 | 19 | 68.7 | 25.4 |
| SUCF212-37 | 2-5/16(inch) | 175 | 143 | 29 | 19.5 | 48 | 19 | 68.7 | 25.4 |
| SUCF212-38 | 2-3/8(inch) | 175 | 143 | 29 | 19.5 | 48 | 19 | 68.7 | 25.4 |
| SUCF212-39 | 2-7/16(inch) | 175 | 143 | 29 | 19.5 | 48 | 19 | 68.7 | 25.4 |
| SUCF213 | 65(mm) | 187 | 149 | 30 | 23 | 50 | 19 | 69.7 | 25.4 |
| SUCF213-40 | 2-1/2(inch) | 187 | 149 | 30 | 23 | 50 | 19 | 69.7 | 25.4 |
| SUCF213-41 | 2-9/16(inch) | 187 | 149 | 30 | 23 | 50 | 19 | 69.7 | 25.4 |
| SUCF214 | 70(mm) | 193 | 152 | 31 | 23 | 54 | 19 | 75.4 | 30.2 |
| SUCF214-42 | 2-5/8(inch) | 193 | 152 | 31 | 23 | 54 | 19 | 75.4 | 30.2 |
| SUCF214-43 | 2-11/16(inch) | 193 | 152 | 31 | 23 | 54 | 19 | 75.4 | 30.2 |
| SUCF214-44 | 2-3/4(inch) | 193 | 152 | 31 | 23 | 54 | 19 | 75.4 | 30.2 |
| SUCF215 | 75(mm) | 200 | 159 | 34 | 23 | 56 | 19 | 78.5 | 33.3 |
| SUCF215-45 | 2-13/16(inch) | 200 | 159 | 34 | 23 | 56 | 19 | 78.5 | 33.3 |
| SUCF215-46 | 2-7/8(inch) | 200 | 159 | 34 | 23 | 56 | 19 | 78.5 | 33.3 |
| SUCF215-47 | 2-15/16(inch) | 200 | 159 | 34 | 23 | 56 | 19 | 78.5 | 33.3 |
| SUCF215-48 | 3(inch) | 200 | 159 | 34 | 23 | 56 | 19 | 78.5 | 33.3 |
| SUCF216 | 80(mm) | 208 | 165 | 34 | 24 | 58 | 23 | 83.3 | 33.3 |
| SUCF216-50 | 3-1/8(inch) | 208 | 165 | 34 | 24 | 58 | 23 | 83.3 | 33.3 |
| SUCF217 | 85(mm) | 220 | 175 | 36 | 25 | 63 | 23 | 87.5 | 34.1 |
| SUCF217-52 | 3-1/4(inch) | 220 | 175 | 36 | 25 | 63 | 23 | 87.5 | 34.1 |
| SUCF218 | 90(mm) | 235 | 187 | 40 | 26 | 68 | 23 | 96.3 | 39.7 |
| SUCF218-56 | 3-1/2(inch) | 235 | 187 | 40 | 26 | 68 | 23 | 96.3 | 39.7 |
Findbearing.com supplies high quality SUCF200 stainless steel ball bearing.
Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
