UCFK200 ball bearing unit catalogue list

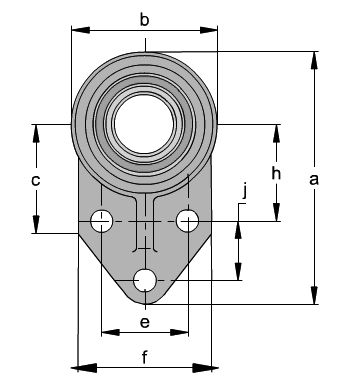

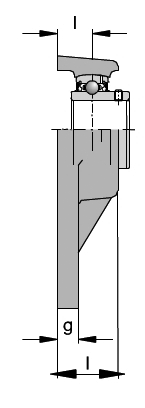

| Dimension | ||||||||||
| SPEC.1 | Bore dia | a | h | e | j | g | l | b | f | Bolt Used |
| UCFK201 | 12(mm) | 110 | 42 | 32 | 27 | 13 | 25.5 | 62 | 52 | M8 |
| UCFK201-8 | 1/2(inch) | 110 | 42 | 32 | 27 | 13 | 25.5 | 62 | 52 | 5/16 |
| UCFK202 | 15(mm) | 110 | 42 | 32 | 27 | 13 | 25.5 | 62 | 52 | M8 |
| UCFK202-10 | 5/8(inch) | 110 | 42 | 32 | 27 | 13 | 25.5 | 62 | 52 | 5/16 |
| UCFK202-9 | 9/16(inch) | 110 | 42 | 32 | 27 | 13 | 25.5 | 62 | 52 | 5/16 |
| UCFK203 | 17(mm) | 110 | 42 | 32 | 27 | 13 | 25.5 | 62 | 52 | M8 |
| UCFK203-11 | 11/16(inch) | 110 | 42 | 32 | 27 | 13 | 25.5 | 62 | 52 | 5/16 |
| UCFK204 | 20(mm) | 110 | 42 | 32 | 27 | 13 | 25.5 | 62 | 52 | M8 |
| UCFK204-12 | 3/4(inch) | 110 | 42 | 32 | 27 | 13 | 25.5 | 62 | 52 | 5/16 |
| UCFK205 | 25(mm) | 116 | 45 | 34 | 27 | 13 | 27 | 68 | 56 | M8 |
| UCFK205-13 | 13/16(inch) | 116 | 45 | 34 | 27 | 13 | 27 | 68 | 56 | 5/16 |
| UCFK205-14 | 7/8(inch) | 116 | 45 | 34 | 27 | 13 | 27 | 68 | 56 | 5/16 |
| UCFK205-15 | 15/16(inch) | 116 | 45 | 34 | 27 | 13 | 27 | 68 | 56 | 5/16 |
| UCFK205-16 | 1(inch) | 116 | 45 | 34 | 27 | 13 | 27 | 68 | 56 | 5/16 |
| UCFK206 | 30(mm) | 130 | 50 | 40 | 29 | 13 | 31 | 78 | 65 | M8 |
| UCFK206-17 | 1-1/16(inch) | 130 | 50 | 40 | 29 | 13 | 31 | 78 | 65 | 5/16 |
| UCFK206-18 | 1-1/8(inch) | 130 | 50 | 40 | 29 | 13 | 31 | 78 | 65 | 5/16 |
| UCFK206-19 | 1-3/16(inch) | 130 | 50 | 40 | 29 | 13 | 31 | 78 | 65 | 5/16 |
| UCFK206-20 | 1-1/4(inch) | 130 | 50 | 40 | 29 | 13 | 31 | 78 | 65 | 5/16 |
| UCFK207 | 35(mm) | 144 | 55 | 46 | 32 | 15 | 34 | 90 | 70 | M8 |
| UCFK207-20 | 1-1/4(inch) | 144 | 55 | 46 | 32 | 15 | 34 | 90 | 70 | 5/16 |
| UCFK207-21 | 1-5/16(inch) | 144 | 55 | 46 | 32 | 15 | 34 | 90 | 70 | 5/16 |
| UCFK207-22 | 1-3/8(inch) | 144 | 55 | 46 | 32 | 15 | 34 | 90 | 70 | 5/16 |
| UCFK207-23 | 1-7/16(inch) | 144 | 55 | 46 | 32 | 15 | 34 | 90 | 70 | 5/16 |
| UCFK208 | 40(mm) | 164 | 60 | 50 | 41 | 16 | 36 | 100 | 78 | M10 |
| UCFK208-24 | 1-1/2(inch) | 164 | 60 | 50 | 41 | 16 | 36 | 100 | 78 | 3/8 |
| UCFK208-25 | 1-9/16(inch) | 164 | 60 | 50 | 41 | 16 | 36 | 100 | 78 | 3/8 |
| UCFK209 | 45(mm) | 174 | 65 | 54 | 43 | 18 | 38 | 106 | 80 | M10 |
| UCFK209-26 | 1-5/8(inch) | 174 | 65 | 54 | 43 | 18 | 38 | 106 | 80 | 3/8 |
| UCFK209-27 | 1-11/16(inch) | 174 | 65 | 54 | 43 | 18 | 38 | 106 | 80 | 3/8 |
| UCFK209-28 | 1-3/4(inch) | 174 | 65 | 54 | 43 | 18 | 38 | 106 | 80 | 3/8 |
| UCFK210 | 50(mm) | 184 | 68 | 58 | 46 | 18 | 40 | 112 | 86 | M10 |
| UCFK210-29 | 1-13/16(inch) | 184 | 68 | 58 | 46 | 18 | 40 | 112 | 86 | 3/8 |
| UCFK210-30 | 1-7/8(inch) | 184 | 68 | 58 | 46 | 18 | 40 | 112 | 86 | 3/8 |
| UCFK210-31 | 1-15/16(inch) | 184 | 68 | 58 | 46 | 18 | 40 | 112 | 86 | 3/8 |
| UCFK210-32 | 2(inch) | 184 | 68 | 58 | 46 | 18 | 40 | 112 | 86 | 3/8 |
Findbearing.com supplies high quality UCFK200 ball bearing unit.
Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
