UCFA200

UCFA200 ball bearing unit catalogue list

UCFA200 - ball bearing unit

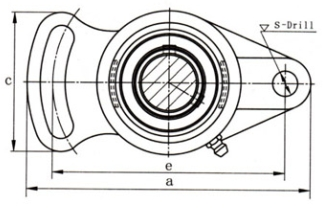

		Dimension
SPEC.1	Bore dia	a	e	i	g	l	S	S1	S2	b	f	z	Bi	n	Bolt Used
UCFA201	12	98	78	15	12	25.5	10	10	40	60	50	33.3	31	12.7	M8
UCFA201-8	1/2	98	78	15	12	25.5	10	10	40	60	50	33.3	31	12.7	5/16
UCFA202	15	98	78	15	12	25.5	10	10	40	60	50	33.3	31	12.7	M8
UCFA202-10	5/8	98	78	15	12	25.5	10	10	40	60	50	33.3	31	12.7	5/16
UCFA202-9	9/16	98	78	15	12	25.5	10	10	40	60	50	33.3	31	12.7	5/16
UCFA203	17	98	78	15	12	25.5	10	10	40	60	50	33.3	31	12.7	M8
UCFA203-11	11/16	98	78	15	12	25.5	10	10	40	60	50	33.3	31	12.7	5/16
UCFA204	20	98	78	15	12	25.5	10	10	40	60	50	33.3	31	12.7	M8
UCFA204-12	3/4	98	78	15	12	25.5	10	10	40	60	50	33.3	31	12.7	5/16
UCFA205	25	125	98	16	14	27	12	13	51	68	65	35.7	34	14.3	M10
UCFA205-13	13/16	125	98	16	14	27	12	13	51	68	65	35.7	34	14.3	3/8
UCFA205-14	7/8	125	98	16	14	27	12	13	51	68	65	35.7	34	14.3	3/8
UCFA205-15	15/16	125	98	16	14	27	12	13	51	68	65	35.7	34	14.3	3/8
UCFA205-16	1	125	98	16	14	27	12	13	51	68	65	35.7	34	14.3	3/8
UCFA206	30	144	117	18	14	31	12	13	58	80	72	40.2	38.1	15.9	M10
UCFA206-17	1-1/16	144	117	18	14	31	12	13	58	80	72	40.2	38.1	15.9	3/8
UCFA206-18	1-1/8	144	117	18	14	31	12	13	58	80	72	40.2	38.1	15.9	3/8
UCFA206-19	1-3/16	144	117	18	14	31	12	13	58	80	72	40.2	38.1	15.9	3/8
UCFA206-20	1-1/4	144	117	18	14	31	12	13	58	80	72	40.2	38.1	15.9	3/8
UCFA207	35	161	130	19	16	34	14	15	66	90	82	44.4	42.9	17.5	M12
UCFA207-20	1-1/4	161	130	19	16	34	14	15	66	90	82	44.4	42.9	17.5	7/16
UCFA207-21	1-5/16	161	130	19	16	34	14	15	66	90	82	44.4	42.9	17.5	7/16
UCFA207-22	1-3/8	161	130	19	16	34	14	15	66	90	82	44.4	42.9	17.5	7/16
UCFA207-23	1-7/16	161	130	19	16	34	14	15	66	90	82	44.4	42.9	17.5	7/16
UCFA208	40	175	144	21	16	36	14	15	71	100	87	51.2	49.2	19	M12
UCFA208-24	1-1/2	175	144	21	16	36	14	15	71	100	87	51.2	49.2	19	7/16
UCFA208-25	1-9/16	175	144	21	16	36	14	15	71	100	87	51.2	49.2	19	7/16
UCFA209	45	181	148	22	18	38	16	17	72	108	90	52.2	49.2	19	M14
UCFA209-26	1-5/8	181	148	22	18	38	16	17	72	108	90	52.2	49.2	19	1/2
UCFA209-27	1-11/16	181	148	22	18	38	16	17	72	108	90	52.2	49.2	19	1/2
UCFA209-28	1-3/4	181	148	22	18	38	16	17	72	108	90	52.2	49.2	19	1/2
UCFA210	50	190	157	22	18	40	16	17	76	115	94	54.6	51.6	19	M14
UCFA210-29	1-13/16	190	157	22	18	40	16	17	76	115	94	54.6	51.6	19	1/2
UCFA210-30	1-7/8	190	157	22	18	40	16	17	76	115	94	54.6	51.6	19	1/2
UCFA210-31	1-15/16	190	157	22	18	40	16	17	76	115	94	54.6	51.6	19	1/2
UCFA210-32	2	190	157	22	18	40	16	17	76	115	94	54.6	51.6	19	1/2
UCFA211	55	219	184	25	20	43	16	17	86	130	104	58.4	55.6	22.2	M14
UCFA211-32	2	219	184	25	20	43	16	17	86	130	104	58.4	55.6	22.2	1/2
UCFA211-33	2-1/16	219	184	25	20	43	16	17	86	130	104	58.4	55.6	22.2	1/2
UCFA211-34	2-1/8	219	184	25	20	43	16	17	86	130	104	58.4	55.6	22.2	1/2
UCFA211-35	2-3/16	219	184	25	20	43	16	17	86	130	104	58.4	55.6	22.2	1/2
UCFA212	60	240	202	29	18	48	18	19	100	140	120	68.7	65.0	25.4	M16
UCFA212-36	2-1/4	240	202	29	18	48	18	19	100	140	120	68.7	65.0	25.4	5/8
UCFA212-37	2-5/16	240	202	29	18	48	18	19	100	140	120	68.7	65.0	25.4	5/8
UCFA212-38	2-3/8	240	202	29	18	48	18	19	100	140	120	68.7	65.0	25.4	5/8
UCFA212-39	2-7/16	240	202	29	18	48	18	19	100	140	120	68.7	65.0	25.4	5/8
UCFA213	65	248	210	30	20	49	18	19	106	152	126	69.7	65.0	25.4	M16
UCFA213-40	2-1/2	248	210	30	20	49	18	19	106	152	126	69.7	65.0	25.4	5/8
UCFA213-41	2-9/16	248	210	30	20	49	18	19	106	152	126	69.7	65.0	25.4	5/8

Findbearing.com supplies high quality UCFA200 ball bearing unit.

Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
