SBPFL200 ball bearing unit catalogue list

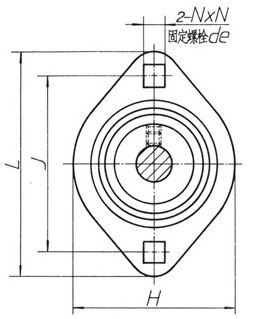

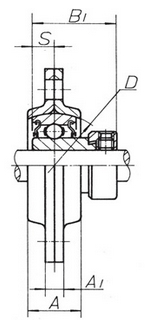

| Dimension | |||||||
| SPEC.1 | Bore dia | L | J | H | N | B1 | S |
| SBPFL201 | 12(mm) | 81 | 63.5 | 59 | 7.1 | 22 | 6 |
| SBPFL201-8 | 3/4(inch) | 81 | 63.5 | 59 | 7.1 | 22 | 6 |
| SBPFL202 | 15(mm) | 81 | 63.5 | 59 | 7.1 | 22 | 6 |
| SBPFL202-10 | 5/8(inch) | 81 | 63.5 | 59 | 7.1 | 22 | 6 |
| SBPFL202-9 | 9/16(inch) | 81 | 63.5 | 59 | 7.1 | 22 | 6 |
| SBPFL203 | 17(mm) | 81 | 63.5 | 59 | 7.1 | 22 | 6 |
| SBPFL203-11 | 11/16(inch) | 81 | 63.5 | 59 | 7.1 | 22 | 6 |
| SBPFL204 | 20(mm) | 90 | 71.5 | 67 | 9 | 25 | 7 |
| SBPFL204-12 | 3/4(inch) | 90 | 71.5 | 67 | 9 | 25 | 7 |
| SBPFL205 | 25(mm) | 95 | 76 | 71 | 9 | 27 | 7.5 |
| SBPFL205-13 | 13/16(inch) | 95 | 76 | 71 | 9 | 27 | 7.5 |
| SBPFL205-14 | 7/8(inch) | 95 | 76 | 71 | 9 | 27 | 7.5 |
| SBPFL205-15 | 15/16(inch) | 95 | 76 | 71 | 9 | 27 | 7.5 |
| SBPFL205-16 | 1(inch) | 95 | 76 | 71 | 9 | 27 | 7.5 |
| SBPFL206 | 30(mm) | 113 | 90.5 | 84 | 11 | 30 | 8 |
| SBPFL206-17 | 1-1/16(inch) | 113 | 90.5 | 84 | 11 | 30 | 8 |
| SBPFL206-18 | 1-1/8(inch) | 113 | 90.5 | 84 | 11 | 30 | 8 |
| SBPFL206-19 | 1-3/16(inch) | 113 | 90.5 | 84 | 11 | 30 | 8 |
| SBPFL206-20 | 1-1/4(inch) | 113 | 90.5 | 84 | 11 | 30 | 8 |
| SBPFL207 | 35(mm) | 122 | 100 | 94 | 11 | 32 | 8.5 |
| SBPFL207-20 | 1-1/4(inch) | 122 | 100 | 94 | 11 | 32 | 8.5 |
| SBPFL207-21 | 1-5/16(inch) | 122 | 100 | 94 | 11 | 32 | 8.5 |
| SBPFL207-22 | 1-3/8(inch) | 122 | 100 | 94 | 11 | 32 | 8.5 |
| SBPFL207-23 | 1-7/16(inch) | 122 | 100 | 94 | 11 | 32 | 8.5 |
| SBPFL208 | 40(mm) | 122 | 119 | 100 | 13.5 | 34 | 9 |
| SBPFL208-24 | 1-1/2(inch) | 122 | 119 | 100 | 13.5 | 34 | 9 |
| SBPFL208-25 | 1-9/16(inch) | 122 | 119 | 100 | 13.5 | 34 | 9 |
Findbearing.com supplies high quality SBPFL200 ball bearing unit.
Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
