SBFW200 ball bearing unit catalogue list

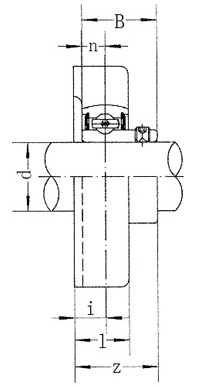

| Dimension | |||||||||||
| SPEC.1 | Bore dia | a | e | i | l | s | b | z | B | n | Bolt Used |
| SBFW201 | 12(inch) | 81 | 63.5 | 8.5 | 15 | 7 | 58.7 | 24.5 | 22 | 6 | M6((mm)) |
| SBFW201-8 | 1/2(inch) | 81 | 63.5 | 8.5 | 15 | 7 | 58.7 | 24.5 | 22 | 6 | 1/4 |
| SBFW202 | 15(inch) | 81 | 63.5 | 8.5 | 15 | 7 | 58.7 | 24.5 | 22 | 6 | M6(mm) |
| SBFW202-10 | 5/8(inch) | 81 | 63.5 | 8.5 | 15 | 7 | 58.7 | 24.5 | 22 | 6 | 1/4 |
| SBFW202-9 | 9/16(inch) | 81 | 63.5 | 8.5 | 15 | 7 | 58.7 | 24.5 | 22 | 6 | 1/4 |
| SBFW203 | 17(inch) | 81 | 63.5 | 8.5 | 15 | 7 | 58.7 | 24.5 | 22 | 6 | M6(mm) |
| SBFW203-11 | 11/16(inch) | 81 | 63.5 | 8.5 | 15 | 7 | 58.7 | 24.5 | 22 | 6 | 1/4 |
| SBFW204 | 20(inch) | 90.5 | 71.4 | 9.5 | 17 | 9 | 66.5 | 27.5 | 25 | 7 | M8(mm) |
| SBFW204-12 | 3/4(inch) | 90.5 | 71.4 | 9.5 | 17 | 9 | 66.5 | 27.5 | 25 | 7 | 5/16 |
| SBFW205 | 25(inch) | 97 | 76.2 | 9.5 | 17.5 | 9 | 71 | 29 | 27 | 7.5 | M8(mm) |
| SBFW205-13 | 13/16(inch) | 97 | 76.2 | 9.5 | 17.5 | 9 | 71 | 29 | 27 | 7.5 | 5/16 |
| SBFW205-14 | 7/8(inch) | 97 | 76.2 | 9.5 | 17.5 | 9 | 71 | 29 | 27 | 7.5 | 5/16 |
| SBFW205-15 | 15/16(inch) | 97 | 76.2 | 9.5 | 17.5 | 9 | 71 | 29 | 27 | 7.5 | 5/16 |
| SBFW205-16 | 1(inch) | 97 | 76.2 | 9.5 | 17.5 | 9 | 71 | 29 | 27 | 7.5 | 5/16 |
| SBFW206 | 30(inch) | 112.5 | 90.5 | 11.5 | 20.5 | 11.5 | 84 | 33.5 | 30 | 8 | M10(mm) |
| SBFW206-17 | 1-1/16(inch) | 112.5 | 90.5 | 11.5 | 20.5 | 11.5 | 84 | 33.5 | 30 | 8 | 3/8 |
| SBFW206-18 | 1-1/8(inch) | 112.5 | 90.5 | 11.5 | 20.5 | 11.5 | 84 | 33.5 | 30 | 8 | 3/8 |
| SBFW206-19 | 1-3/16(inch) | 112.5 | 90.5 | 11.5 | 20.5 | 11.5 | 84 | 33.5 | 30 | 8 | 3/8 |
| SBFW206-20 | 1-1/4(inch) | 112.5 | 90.5 | 11.5 | 20.5 | 11.5 | 84 | 33.5 | 30 | 8 | 3/8 |
| SBFW207 | 35(inch) | 126 | 100 | 12.5 | 22 | 11.5 | 94 | 36 | 32 | 8.5 | M10(mm) |
| SBFW207-20 | 1-1/4(inch) | 126 | 100 | 12.5 | 22 | 11.5 | 94 | 36 | 32 | 8.5 | 3/8 |
| SBFW207-21 | 1-5/16(inch) | 126 | 100 | 12.5 | 22 | 11.5 | 94 | 36 | 32 | 8.5 | 3/8 |
| SBFW207-22 | 1-3/8(inch) | 126 | 100 | 12.5 | 22 | 11.5 | 94 | 36 | 32 | 8.5 | 3/8 |
| SBFW207-23 | 1-7/16(inch) | 126 | 100 | 12.5 | 22 | 11.5 | 94 | 36 | 32 | 8.5 | 3/8 |
| SBFW208 | 40(inch) | 148 | 119 | 14.5 | 25 | 13.5 | 104 | 39.5 | 34 | 9 | M12(mm) |
| SBFW208-24 | 1-1/2(inch) | 148 | 119 | 14.5 | 25 | 13.5 | 104 | 39.5 | 34 | 9 | 7/16 |
| SBFW208-25 | 1-9/16(inch) | 148 | 119 | 14.5 | 25 | 13.5 | 104 | 39.5 | 34 | 9 | 7/16 |
Findbearing.com supplies high quality SBFW200 ball bearing unit.
Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
