SARFB200 ball bearing unit catalogue list

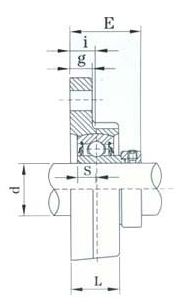

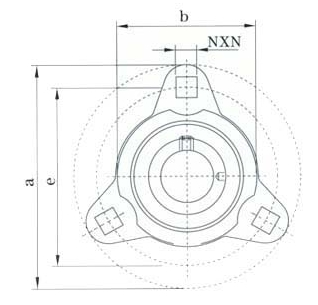

| Dimension | ||||||||
| SPEC.1 | Bore dia | a | e | i | L | b | S | E |
| SARFB201 | 12(mm) | 81 | 64 | 10 | 18 | 56 | 6 | 32.6 |
| SARFB201-8 | 1/2(inch) | 81 | 64 | 10 | 18 | 56 | 6 | 32.6 |
| SARFB202 | 15(mm) | 81 | 64 | 10 | 18 | 56 | 6 | 32.6 |
| SARFB202-10 | 5/8(inch) | 81 | 64 | 10 | 18 | 56 | 6 | 32.6 |
| SARFB202-9 | 9/16(inch) | 81 | 64 | 10 | 18 | 56 | 6 | 32.6 |
| SARFB203 | 17(mm) | 81 | 64 | 10 | 18 | 56 | 6 | 32.6 |
| SARFB203-11 | 11/16(inch) | 81 | 64 | 10 | 18 | 56 | 6 | 32.6 |
| SARFB204 | 20(mm) | 90 | 71.4 | 11.4 | 20 | 67 | 7 | 35.4 |
| SARFB204-12 | 3/4(inch) | 90 | 71.4 | 11.4 | 20 | 67 | 7 | 35.4 |
| SARFB205 | 25(mm) | 95 | 76.2 | 11.8 | 20 | 73 | 7.5 | 35.3 |
| SARFB205-14 | 7/8(inch) | 95 | 76.2 | 11.8 | 20 | 73 | 7.5 | 35.3 |
| SARFB205-15 | 15/16(inch) | 95 | 76.2 | 11.8 | 20 | 73 | 7.5 | 35.3 |
| SARFB205-16 | 1(inch) | 95 | 76.2 | 11.8 | 20 | 73 | 7.5 | 35.3 |
| SARFB206 | 30(mm) | 113 | 90.5 | 12.8 | 23 | 76 | 8 | 40.5 |
| SARFB206-18 | 1-1/8(inch) | 113 | 90.5 | 12.8 | 23 | 76 | 8 | 40.5 |
| SARFB206-19 | 1-3/16(inch) | 113 | 90.5 | 12.8 | 23 | 76 | 8 | 40.5 |
| SARFB206-20 | 1-1/4(inch) | 113 | 90.5 | 12.8 | 23 | 76 | 8 | 40.5 |
| SARFB207 | 35(mm) | 122 | 100 | 13 | 24 | 89 | 8.5 | 43.4 |
| SARFB207-20 | 1-1/4(inch) | 122 | 100 | 13 | 24 | 89 | 8.5 | 43.4 |
| SARFB207-22 | 1-3/8(inch) | 122 | 100 | 13 | 24 | 89 | 8.5 | 43.4 |
| SARFB207-23 | 1-7/16(inch) | 122 | 100 | 13 | 24 | 89 | 8.5 | 43.4 |
Findbearing.com supplies high quality SARFB200 ball bearing unit.
Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
