HCAK200 ball bearing unit catalogue list

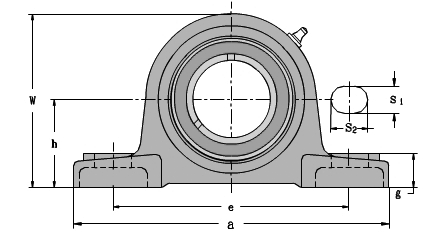

| Dimension | |||||||||||
| SPEC.1 | Bore dia | h | a | e | b | s1 | s2 | g | w | Bi | n |
| HCAK201-8 | 1/2(inch) | 31.8 | 127 | 96 | 31 | 13 | 16 | 14 | 63 | 43.5 | 17 |
| HCAK202-10 | 5/8(inch) | 31.8 | 127 | 96 | 31 | 13 | 16 | 14 | 63 | 43.5 | 17 |
| HCAK204 | 20(mm) | 31.8 | 127 | 96 | 31 | 13 | 16 | 14 | 63 | 43.5 | 17 |
| HCAK204-12 | 3/4(inch) | 31.8 | 127 | 96 | 31 | 13 | 16 | 14 | 63 | 43.5 | 17 |
| HCAK205 | 25(mm) | 33.3 | 140 | 105 | 38 | 13 | 19 | 15 | 66.5 | 44.3 | 17.4 |
| HCAK205-14 | 7/8(inch) | 33.3 | 140 | 105 | 38 | 13 | 19 | 15 | 66.5 | 44.3 | 17.4 |
| HCAK205-15 | 15/16(inch) | 33.3 | 140 | 105 | 38 | 13 | 19 | 15 | 66.5 | 44.3 | 17.4 |
| HCAK205-16 | 1(inch) | 33.3 | 140 | 105 | 38 | 13 | 19 | 15 | 66.5 | 44.3 | 17.4 |
| HCAK206 | 30(mm) | 36.7 | 160 | 121 | 44 | 14 | 19 | 16 | 79 | 48.3 | 18.2 |
| HCAK206-17 | 1-1/16(inch) | 36.7 | 160 | 121 | 44 | 14 | 19 | 16 | 79 | 48.3 | 18.2 |
| HCAK206-18 | 1-1/8(inch) | 36.7 | 160 | 121 | 44 | 14 | 19 | 16 | 79 | 48.3 | 18.2 |
| HCAK206-19 | 1-3/16(inch) | 36.7 | 160 | 121 | 44 | 14 | 19 | 16 | 79 | 48.3 | 18.2 |
| HCAK206-20 | 1-1/4(inch) | 36.7 | 160 | 121 | 44 | 14 | 19 | 16 | 79 | 48.3 | 18.2 |
| HCAK207 | 35(mm) | 46 | 167 | 127 | 48 | 15 | 19 | 17 | 91 | 51.1 | 18.8 |
| HCAK207-20 | 1-1/4(inch) | 46 | 167 | 127 | 48 | 15 | 19 | 17 | 91 | 51.1 | 18.8 |
| HCAK207-21 | 1-5/16(inch) | 46 | 167 | 127 | 48 | 15 | 19 | 17 | 91 | 51.1 | 18.8 |
| HCAK207-22 | 1-3/8(inch) | 46 | 167 | 127 | 48 | 15 | 19 | 17 | 91 | 51.1 | 18.8 |
| HCAK207-23 | 1-7/16(inch) | 46 | 167 | 127 | 48 | 15 | 19 | 17 | 91 | 51.1 | 18.8 |
| HCAK208 | 40(mm) | 49.2 | 180 | 136 | 52 | 15 | 21 | 18 | 98 | 56.3 | 21.4 |
| HCAK208-24 | 1-1/2(inch) | 49.2 | 180 | 136 | 52 | 15 | 21 | 18 | 98 | 56.3 | 21.4 |
| HCAK208-25 | 1-9/16(inch) | 49.2 | 180 | 136 | 52 | 15 | 21 | 18 | 98 | 56.3 | 21.4 |
| HCAK209 | 45(mm) | 52.4 | 189 | 146 | 54 | 15 | 21 | 20 | 105 | 56.3 | 21.4 |
| HCAK209-26 | 1-5/8(inch) | 52.4 | 189 | 146 | 54 | 15 | 21 | 20 | 105 | 56.3 | 21.4 |
| HCAK209-27 | 1-11/16(inch) | 52.4 | 189 | 146 | 54 | 15 | 21 | 20 | 105 | 56.3 | 21.4 |
| HCAK209-28 | 1-3/4(inch) | 52.4 | 189 | 146 | 54 | 15 | 21 | 20 | 105 | 56.3 | 21.4 |
| HCAK210 | 50(mm) | 55.6 | 204 | 159 | 57 | 19 | 22 | 21 | 111.5 | 62.7 | 24.6 |
| HCAK210-30 | 1-7/8(inch) | 55.6 | 204 | 159 | 57 | 19 | 22 | 21 | 111.5 | 62.7 | 24.6 |
| HCAK210-31 | 1-15/16(inch) | 55.6 | 204 | 159 | 57 | 19 | 22 | 21 | 111.5 | 62.7 | 24.6 |
| HCAK210-32 | 2(inch) | 55.6 | 204 | 159 | 57 | 19 | 22 | 21 | 111.5 | 62.7 | 24.6 |
| HCAK211 | 55(mm) | 61.9 | 217 | 172 | 60 | 19 | 22 | 22 | 123 | 71.4 | 27.7 |
| HCAK211-32 | 2(inch) | 61.9 | 217 | 172 | 60 | 19 | 22 | 22 | 123 | 71.4 | 27.7 |
| HCAK211-34 | 2-1/8(inch) | 61.9 | 217 | 172 | 60 | 19 | 22 | 22 | 123 | 71.4 | 27.7 |
| HCAK211-35 | 2-3/16(inch) | 61.9 | 217 | 172 | 60 | 19 | 22 | 22 | 123 | 71.4 | 27.7 |
| HCAK212 | 60(mm) | 68.3 | 238 | 186 | 66 | 19 | 25 | 24 | 136 | 77.7 | 30.9 |
| HCAK212-36 | 2-1/4(inch) | 68.3 | 238 | 186 | 66 | 19 | 25 | 24 | 136 | 77.7 | 30.9 |
| HCAK212-38 | 2-3/8(inch) | 68.3 | 238 | 186 | 66 | 19 | 25 | 24 | 136 | 77.7 | 30.9 |
| HCAK212-39 | 2-7/16(inch) | 68.3 | 238 | 186 | 66 | 19 | 25 | 24 | 136 | 77.7 | 30.9 |
Findbearing.com supplies high quality HCAK200 ball bearing unit.
Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
