SAFX200 ball bearing unit catalogue list

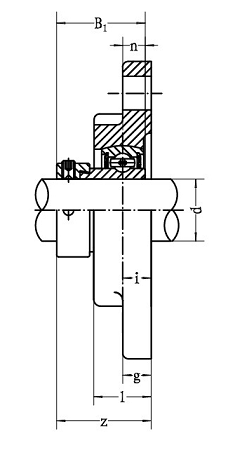

| Dimension | ||||||||||||
| SPEC.1 | Bore dia | a | e | i | l | s | g | b | z | Bi | n | Bolt Used |
| SAFX201 | 12(mm) | 81 | 63.5 | 9.5 | 18 | 8 | 9.5 | 56 | 25.5 | 22 | 6 | M6 |
| SAFX201-8 | 1/2(inch) | 81 | 63.5 | 9.5 | 18 | 8 | 9.5 | 56 | 25.5 | 22 | 6 | 1/4 |
| SAFX202 | 15(mm) | 81 | 63.5 | 9.5 | 18 | 8 | 9.5 | 56 | 25.5 | 22 | 6 | M6 |
| SAFX202-10 | 5/8(inch) | 81 | 63.5 | 9.5 | 18 | 8 | 9.5 | 56 | 25.5 | 22 | 6 | 1/4 |
| SAFX202-9 | 9/16(inch) | 81 | 63.5 | 9.5 | 18 | 8 | 9.5 | 56 | 25.5 | 22 | 6 | 1/4 |
| SAFX203 | 17(mm) | 81 | 63.5 | 9.5 | 18 | 8 | 9.5 | 56 | 25.5 | 22 | 6 | M6 |
| SAFX203-11 | 11/16(inch) | 81 | 63.5 | 9.5 | 18 | 8 | 9.5 | 56 | 25.5 | 22 | 6 | 1/4 |
| SAFX204 | 20(mm) | 90 | 71.5 | 11 | 20 | 10 | 11 | 61 | 28.7 | 24.7 | 7 | M8 |
| SAFX204-12 | 3/4(inch) | 90 | 71.5 | 11 | 20 | 10 | 11 | 61 | 28.7 | 24.7 | 7 | 5/16 |
| SAFX205 | 25(mm) | 95 | 76 | 11 | 20 | 10 | 11 | 64 | 30.5 | 27 | 7.5 | M8 |
| SAFX205-13 | 13/16(inch) | 95 | 76 | 11 | 20 | 10 | 11 | 64 | 30.5 | 27 | 7.5 | 5/16 |
| SAFX205-14 | 7/8(inch) | 95 | 76 | 11 | 20 | 10 | 11 | 64 | 30.5 | 27 | 7.5 | 5/16 |
| SAFX205-15 | 15/16(inch) | 95 | 76 | 11 | 20 | 10 | 11 | 64 | 30.5 | 27 | 7.5 | 5/16 |
| SAFX205-16 | 1(inch) | 95 | 76 | 11 | 20 | 10 | 11 | 64 | 30.5 | 27 | 7.5 | 5/16 |
| SAFX206 | 30(mm) | 113 | 90.5 | 12 | 22.5 | 12 | 12 | 76 | 34 | 30 | 8 | M8 |
| SAFX206-17 | 1-1/16(inch) | 113 | 90.5 | 12 | 22.5 | 12 | 12 | 76 | 34 | 30 | 8 | 5/16 |
| SAFX206-18 | 1-1/8(inch) | 113 | 90.5 | 12 | 22.5 | 12 | 12 | 76 | 34 | 30 | 8 | 5/16 |
| SAFX206-19 | 1-3/16(inch) | 113 | 90.5 | 12 | 22.5 | 12 | 12 | 76 | 34 | 30 | 8 | 5/16 |
| SAFX206-20 | 1-1/4(inch) | 113 | 90.5 | 12 | 22.5 | 12 | 12 | 76 | 34 | 30 | 8 | 5/16 |
| SAFX207 | 35(mm) | 122 | 100 | 13 | 24 | 12 | 13 | 89 | 36.5 | 32 | 8.5 | M8 |
| SAFX207-20 | 1-1/4(inch) | 122 | 100 | 13 | 24 | 12 | 13 | 89 | 36.5 | 32 | 8.5 | 5/16 |
| SAFX207-21 | 1-5/16(inch) | 122 | 100 | 13 | 24 | 12 | 13 | 89 | 36.5 | 32 | 8.5 | 5/16 |
| SAFX207-22 | 1-3/8(inch) | 122 | 100 | 13 | 24 | 12 | 13 | 89 | 36.5 | 32 | 8.5 | 5/16 |
| SAFX207-23 | 1-7/16(inch) | 122 | 100 | 13 | 24 | 12 | 13 | 89 | 36.5 | 32 | 8.5 | 5/16 |
Findbearing.com supplies high quality SAFX200 ball bearing unit.
Note:
– When the fit between bearing and housing is clearance fit, the outer ring of bearing has locking pin.
– As default structure, there is grease groove on the outer ring of the bearing. No grease groove structure can also be provided upon request.
