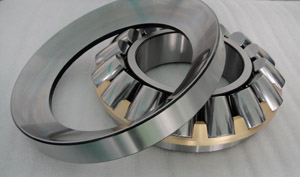

29444 thrust spherical roller bearing

29444 Bearing catalogue page.

Dimensions d 220 mm A 132 mm B 43 mm C 56.9 mm D 420 mm D1 381 mm d1 300 mm T 122 mm rmin 6 mm Basic load rating Co 2570 KN Cor 9110 KN Limiting speed grease 560 r/min oil 750 r/min Assembly dimensions damin 315 mm Da max 358 mm rg max 5 mm Weight 73.2 kg

– Default Brass cage material used electrolytic copper, different from recycled brass.
– Steel cage is also available on many items.
– Drawing according to ZWZ design, non-stealing material structure.
– Superior surface roughness, black chamfered.
– Well protected against knock wound.
