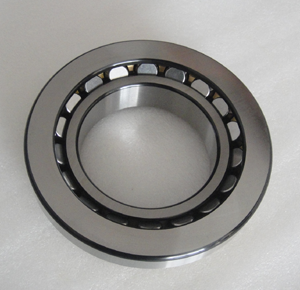

29324 thrust spherical roller bearing

29324 Bearing catalogue page.

Dimensions d 120 mm A 70 mm B 18 mm C 25.9 mm D 210 mm D1 193.5 mm d1 156 mm T 54 mm rmin 2.1 mm Basic load rating Co 545 KN Cor 2010 KN Limiting speed grease 1100 r/min oil 1600 r/min Assembly dimensions damin 160 mm Da max 181 mm rg max 2 mm Weight 7.45 kg

– Default Brass cage material used electrolytic copper, different from recycled brass.
– Steel cage is also available on many items.
– Drawing according to ZWZ design, non-stealing material structure.
– Superior surface roughness, black chamfered.
– Well protected against knock wound.
