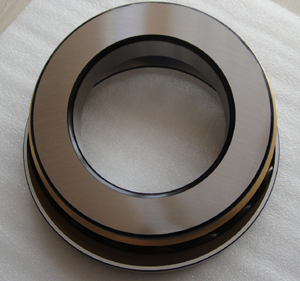

29318 thrust spherical roller bearing

29318 Bearing catalogue page.

Dimensions d 90 mm A 52 mm B 13 mm C 18.8 mm D 155 mm D1 143.2 mm d1 115.5 mm T 39 mm rmin 1.5 mm Basic load rating Co 315 KN Cor 1020 KN Limiting speed grease 1600 r/min oil 2200 r/min Assembly dimensions damin 120 mm Da max 134 mm rg max 1.5 mm Weight 2.93 kg

– Default Brass cage material used electrolytic copper, different from recycled brass.
– Steel cage is also available on many items.
– Drawing according to ZWZ design, non-stealing material structure.
– Superior surface roughness, black chamfered.
– Well protected against knock wound.
