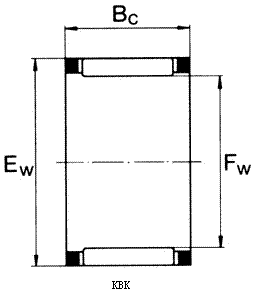

KBK rod-use needle roller and cage assembly catalogue list
| Other Bearing No. | Dimension | Load Ratings | |||||
| SPEC.1 | SPEC.2 | SPEC.3 | FW | EW | BC | C | C0 |
| KBK08118.7 | 8 | 11 | 8.69 | ||||
| KBK10X13X10 | 39241/10 | KBK10*13*10 | 10 | 13 | 10 | 4200 | 5200 |
| KBK10X13X14.5 | 59241/10 | KBK10*13*14.5 | 10 | 13 | 14.5 | 5400 | 6600 |
| KBK10X13X16 | KBK10*13*16 | 10 | 13 | 16 | 6800 | 7700 | |
| KBK10X13X8 | 29241/10 | KBK10*13*8 | 10 | 13 | 8 | 4000 | 5000 |
| KBK10X14X10 | 29242/10 | KBK10*14*10 | 10 | 14 | 10 | 4400 | 4600 |
| KBK10X14X12 | KBK10*14*12 | 10 | 14 | 11 | 5200 | 5700 | |
| KBK10X14X12.5 | KBK10*14*12.5 | 10 | 14 | 12 | 5400 | 6000 | |
| KBK10X14X12.5 | KBK10*14*12.5 | 10 | 14 | 12.5 | 5600 | 6200 | |
| KBK10X14X13 | 39242/10 | KBK10*14*13 | 10 | 14 | 13 | 5600 | 6200 |
| KBK10X14X15 | KBK10*14*15 | 10 | 14 | 15 | 6200 | 7100 | |
| KBK11X14X10 | KBK11*14*10 | 11 | 15 | 16 | 5000 | 6800 | |
| KBK11X15X12.5 | 9246/11K | KBK11*15*12.5 | 11 | 15 | 12.5 | 4600 | 5200 |
| KBK11X15X16 | KBK11*15*16 | 11 | 15 | 17 | 5200 | 7000 | |
| KBK11X15X17 | 49241/12 | KBK11*15*17 | 11 | 15 | 10 | 4300 | 5000 |
| KBK12X15X13 | KBK12*15*13 | 12 | 15 | 13 | 5500 | 7300 | |
| KBK12X15X14.3 | 59241/12 | KBK12*15*14.3 | 12 | 15 | 14.3 | 5800 | 7700 |
| KBK12X15X15 | KBK12*15*15 | 12 | 15 | 15 | 5900 | 7800 | |
| KBK12X15X16.5 | 69241/12 | KBK12*15*16.5 | 12 | 15 | 16.6 | 6800 | 9900 |
| KBK12X15X17 | KBK12*15*17 | 12 | 15 | 17 | 7000 | 10000 | |
| KBK12X15X17.5 | 39242/12 | KBK12*15*17.5 | 12 | 16 | 17.5 | 7000 | 10000 |
| KBK12X15X19 | KBK12*15*19 | 12 | 15 | 19 | 7500 | 10600 | |
| KBK12X16X13 | 149242/12 | KBK12*16*13 | 12 | 16 | 13 | 6300 | 7600 |
| KBK12X16X15 | KY | KBK12*16*15 | 12 | 16 | 15 | 7500 | 9000 |
| KBK12X16X15.5 | KBK12*16*15.5 | 12 | 16 | 15.5 | 7600 | 10000 | |
| KBK12X16X16 | 59241/12 | KBK12*16*16 | 12 | 16 | 16 | 7800 | 9300 |
| KBK12X16X17 | 59242/12 | KBK12*16*17 | 12 | 16 | 17 | 7900 | 9400 |
| KBK12X17X14 | KBK12*17*14 | 12 | 17 | 14 | 8000 | 9500 | |
| KBK12X17X14.3 | KBK12*17*14.3 | 12 | 17 | 14.3 | 8000 | 9500 | |
| KBK12X17X14.8 | KBK12*17*14.8 | 12 | 17 | 14.8 | 8300 | 9800 | |
| KBK13X17X14.5 | KBK13*17*14.5 | 13 | 17 | 14.5 | 8300 | 10200 | |
| KBK13X17X17.5 | KBK13*17*17.5 | 13 | 17 | 17.5 | 9500 | 12100 | |
| KBK141917.1 | KBK141917.1 | 14 | 19 | 17.1 | 9200 | 11000 | |
| KBK14X18X10 | 29241/14 | KBK14*18*10 | 14 | 18 | 10 | 6260 | 7400 |
| KBK14X18X12 | KBK14*18*12 | 14 | 18 | 12 | 6380 | 7570 | |
| KBK14X18X13 | 39241/14 | KBK14*18*13 | 14 | 18 | 13 | 7300 | 8700 |
| KBK14X18X14 | KBK14*18*14 | 14 | 18 | 14 | 7400 | 8800 | |
| KBK14X18X14.5 | KBK14*18*14.5 | 14 | 18 | 14.5 | 7400 | 8800 | |
| KBK14X18X15 | 49241/14 | KBK14*18*15 | 14 | 18 | 15 | 7600 | 8990 |
| KBK14X18X16.5 | KBK14*18*16.5 | 14 | 18 | 16.5 | 8800 | 9700 | |
| KBK14X18X17 | 59241/14 | KBK14*18*17 | 14 | 18 | 17 | 8900 | 9800 |
| KBK14X18X20 | 69241/14 | KBK14*18*20 | 14 | 18 | 20 | 9000 | 10100 |
| KBK14X18X21 | KBK14*18*21 | 14 | 18 | 21 | 10500 | 12400 | |
| KBK14X18X22 | KBK14*18*22 | 14 | 18 | 22 | 11100 | 13100 | |
| KBK14X19X17 | 49242/14K | KBK14*19*17 | 14 | 19 | 17 | 9200 | 11000 |
| KBK15X19X10 | 29241/15Y | KBK15*19*10 | 15 | 19 | 10 | 6500 | 8600 |
| KBK15X19X18 | KBK15*19*18 | 15 | 19 | 18 | 9900 | 11300 | |
| KBK15X19X19 | KBK15*19*19 | 15 | 19 | 19 | 10100 | 12800 | |
| KBK15X19X20 | 69241/15 | KBK15*19*20 | 15 | 19 | 20 | 11300 | 15500 |
| KBK15X20X24 | SZ-433 | KBK15*20*24 | 15 | 20 | 24 | 14100 | 20000 |
| KBK16X20X19 | KBK16*20*19 | 16 | 20 | 19 | 11700 | 16800 | |
| KBK16X20X20 | 69241/16Y | KBK16*20*20 | 16 | 20 | 20 | 12900 | 17600 |
| KBK16X20X21 | KBK16*20*21 | 16 | 20 | 21 | 12900 | 17600 | |
| KBK16X20X22 | KBK16*20*22 | 16 | 20 | 22 | 13000 | 18700 | |
| KBK16X21X19 | 59242/16 | KBK16*21*19 | 16 | 21 | 19 | 13000 | 18700 |
| KBK17.5X22X16 | KBK17.5*22*16 | 17.5 | 22 | 16 | 11000 | 16300 | |
| KBK18X22X22 | KBK18*22*22 | 18 | 22 | 22 | 11500 | 17700 | |
| KBK18X22X23.5 | KBK18*22*23.5 | 18 | 22 | 23.5 | 11900 | 19000 | |
| KBK18X22X24 | KBK18*22*24 | 18 | 22 | 24 | 12000 | 20000 | |
| KBK18X22X25 | KBK18*22*25 | 18 | 22 | 25 | 12700 | 20100 | |
| KBK18X23X21 | KBK18*23*21 | 18 | 23 | 21 | 9900 | 10100 | |
| KBK18X23X23 | 69242/18 | KBK18*23*23 | 18 | 23 | 23 | 10500 | 12000 |
| KBK18X24X20 | 49243/18 | KBK18*24*20 | 18 | 24 | 20 | 20000 | 25000 |
| KBK20X24X30 | KBK20*24*30 | 20 | 24 | 30 | 14900 | 25500 | |
| KBK20X25X22 | KBK20*25*22 | 20 | 25 | 22 | 15200 | 22300 | |
| KBK20X25X25 | KBK20*25*25 | 20 | 25 | 25 | 17100 | 24000 | |
| KBK8X11X10 | 39241/8 | KBK8*11*10 | 8 | 11 | 10 | 3500 | 4000 |
| KBK8X11X10 | 29242/8 | KBK8*11*10 | 8 | 11 | 10 | 3700 | 4100 |
| KBK8X11X12 | KBK8*11*12 | 8 | 12 | 12 | 3900 | 4500 | |
| KBK9X12X11.5 | KBK9*12*11.5 | 9 | 12 | 11.5 | 4200 | 4800 | |
| KBK9X12X13 | 49241/9 | KBK9*12*13 | 9 | 12 | 13 | 4600 | 5800 |
| KBK9X12X14 | KBK9*12*14 | 9 | 12 | 14 | 4700 | 5900 | |
| KBK9X13X12 | 39242-9 | KBK9*13*12 | 9 | 13 | 12 | 5300 | 5700 |
| KBK9X13X12.5 | KBK9*13*12.5 | 9 | 13 | 12.5 | 5300 | 5700 | |
| KBK9X13X13 | 39242/9 | KBK9*13*13 | 9 | 13 | 13 | 5350 | 5600 |
| KBK9X13X14 | KBK9*13*14 | 10 | 13 | 14 | 5400 | 5750 | |
Findbearing.com supplies high quality KBK series rod-use needle roller and cage assembly.
Note:
– Needle retainer assembly is a kind of independent bearing unit with rigidity and high load capacity, especially suitable for limited radial dimension applications.
– KBK represents piston pin assembly.
– The needle roller and cage assembly of KBK series is different from that of KZK(external guide for crank pin) series. It is internally guided on the piston pin, thus increasing the length of needle.
