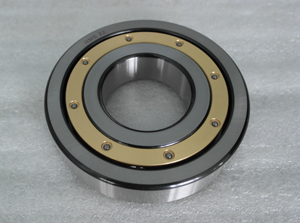

RMS deep groove ball bearing catalogue list
| Dimension | Basic Load Rating | |||||||
| SPEC.1 | SPEC.2 | SPEC.3 | d | D | B | Cr | Cor | Weight |
| RMS 4 | MJ 1/2 | MS5 | 12.7 | 41.275 | 15.88 | 7.35 | 4.41 | 0.1 |
| RMS 5 | MJ 5/8 | MS7 | 15.875 | 46.038 | 15.88 | 9.88 | 6.2 | 0.12 |
| RMS6 | MJ 3/4 | MS8 | 19.05 | 50.8 | 17.46 | 10.45 | 6.56 | 0.16 |
| RMS7 | MJ 7/8 | MS9 | 22.225 | 57.15 | 17.46 | 10.78 | 6.98 | 0.2 |
| RMS 8 | MJ 1 | MS10 | 25.4 | 63.5 | 19.05 | 17.22 | 11.39 | 0.26 |
| RMS 9 | MJ 1.1/8 | MS 11 | 28.575 | 71.438 | 20.64 | 22.84 | 15.68 | 0.35 |
| RMS 10 | MJ1.1/4 | MS 12 | 31.75 | 79.375 | 22.23 | 26.7 | 17.57 | 0.48 |
| RMS 11 | MJ 1.3/8 | MS 12.1/2 | 34.925 | 88.9 | 22.23 | 28.4 | 20.9 | 0.61 |
| RMS 12 | MJ 1.1/2 | MS 13 | 38.1 | 95.25 | 23.81 | 31.39 | 22.38 | 0.75 |
| RMS 13 | MJ1.5/8 | MS 13.1/2 | 41.275 | 101.6 | 23.81 | 0.86 | ||
| RMS 14 | MJ1.3/4 | MS 14 | 44.45 | 107.95 | 26.99 | 1.06 | ||
| RMS 15 | MJ 1.7/8 | MS 14.1/2 | 47.625 | 140.3 | 26.99 | 1.22 | ||
| RMS 16 | MJ 2 | MS 15 | 50.8 | 114.3 | 26.99 | 1.17 | ||
| RMS 18 | MJ 2.1/4 | MS 16 | 57.15 | 127 | 31.75 | 1.6 | ||
| RMS 20 | MJ 2.1/2 | MS 17 | 63.5 | 139.7 | 31.75 | 2.04 | ||
| RMS 22 | MJ 2.3/4 | MS 18 | 69.8 | 158.75 | 34.93 | 2.89 | ||
| RMS 24 | MJ 3 | MS 19 | 76.2 | 177.8 | 39.69 | 4.25 | ||
| RMS 26 | MJ 3.1/4 | MS 19.1/2 | 82.55 | 190.5 | 39.69 | 4.99 | ||
| RMS 28 | MJ 3.1/2 | MS 20 | 88.9 | 206.375 | 44.45 | 6.53 | ||
| RMS 30 | MJ 3.3/4 | MS 20.1/2 | 95.25 | 209.55 | 44.45 | 6.53 | ||
| RMS 32 | MJ 4 | MS 21 | 101.6 | 215.9 | 44.45 | 6.71 | ||
| RMS 34 | MJ 4.1/4 | MS 21.1/2 | 107.95 | 222.25 | 44.45 | 8.16 | ||
| RMS 36 | MJ 4.1/2 | MS 22 | 114.3 | 238.125 | 50.8 | 10.7 | ||
| RMS 38 | MJ 4.3/4 | MS 22.1/2 | 120.65 | 254 | 50.8 | 13.2 | ||
| RMS 40 | MJ 5 | MS 23 | 127 | 254 | 50.8 | 12.2 | ||
| RMS 44 | MJ 5.1/2 | MS 23.1/2 | 139.7 | 279.4 | 50.8 | 14.9 | ||
| RMS 48 | MJ 6 | MS 24 | 152.4 | 304.8 | 57.15 | 19.5 | ||
| RMS 52 | MJ 6.1/2 | MS 24.1/2 | 165.1 | 330.2 | 63.5 | 26.5 | ||
| RMS 56 | MJ 7 | MS 25 | 177.8 | 342.9 | 63.5 | 27.5 | ||
| RMS 60 | MJ 7.1/2 | MS 25.1/2 | 190.5 | 368.3 | 69.8 | 35.4 | ||
| RMS 64 | MJ 8 | MS 26 | 203.2 | 381 | 69.8 | 36.5 | ||
| RMS 68 | MJ 8.1/2 | MS 26 .1/2 | 215.9 | 406.4 | 76.2 | 47 20 | ||
Findbearing.com supplies Deep groove ball bearing for both aftermarket mainly, RMS deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings.They have various types in structure, beside open type bearings, shield or seals at both side. All listed are regular items, should have stock more or less.
