SNL3000 plummer block housing Catalogue list
 |
 |
 |
| Dimension | |||||||||||||||

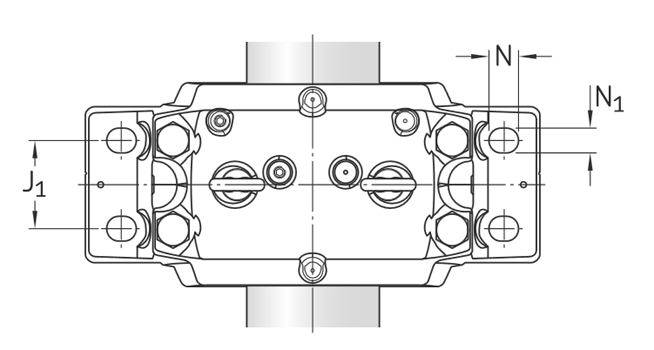

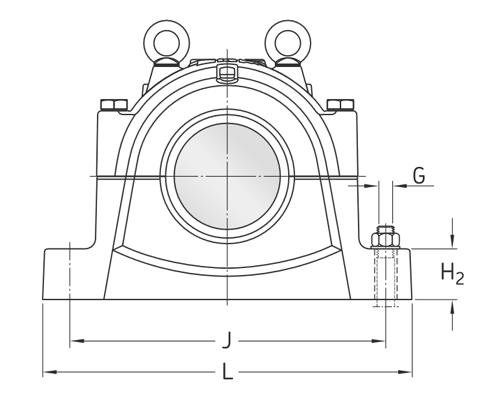

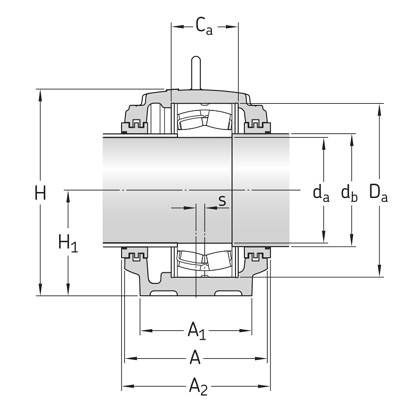

| SPEC.1 | da | A | A1 | H | H1 | H2 | J | J1 | L | N | N1 | s | G | Seals | End cover |
| SNL3036 | 180 | 230 | 180 | 333 | 170 | 70 | 430 | 100 | 510 | 34 | 28 | 14 | 24 | TS44 | ETS44 |
| SNL3038 | 190 | 240 | 190 | 353 | 180 | 75 | 450 | 110 | 530 | 34 | 28 | 15 | 24 | TS44 | ETS44 |
| SNL3040 | 200 | 260 | 210 | 375 | 190 | 80 | 480 | 120 | 560 | 34 | 28 | 10 | 24 | TS48 | ETS48 |
| SNL3044 | 220 | 280 | 230 | 411 | 210 | 85 | 510 | 130 | 610 | 42 | 35 | 10 | 30 | TS52 | ETS52 |
| SNL3048 | 240 | 290 | 240 | 434 | 220 | 90 | 540 | 140 | 640 | 42 | 35 | 12 | 30 | TS56 | ETS56 |
| SNL3052 | 260 | 310 | 260 | 474 | 240 | 95 | 600 | 150 | 700 | 42 | 35 | 12 | 30 | TS60 | ETS60 |
| SNL3056 | 280 | 320 | 280 | 516 | 260 | 100 | 650 | 160 | 770 | 50 | 42 | 13 | 36 | TS64 | ETS64 |
| SNL3060 | 300 | 320 | 280 | 551 | 280 | 105 | 670 | 160 | 790 | 50 | 42 | 16 | 36 | TS68 | ETS68 |
| SNL3064 | 320 | 350 | 310 | 591 | 300 | 110 | 710 | 190 | 830 | 50 | 42 | 22 | 36 | TS72 | ETS72 |
| SNL3068 | 340 | 370 | 330 | 631 | 320 | 115 | 750 | 200 | 880 | 50 | 42 | 23 | 36 | TS76 | ETS76 |
| SNL3072 | 360 | 370 | 330 | 631 | 320 | 115 | 750 | 200 | 880 | 50 | 42 | 23 | 36 | TS80 | ETS80 |
| SNL3076 | 380 | 400 | 360 | 675 | 340 | 120 | 810 | 220 | 950 | 50 | 42 | 24 | 36 | TS84 | ETS84 |
| SNL3080 | 400 | 400 | 360 | 695 | 350 | 120 | 840 | 220 | 1000 | 50 | 42 | 30 | 36 | TS92 | ETS92 |
Findbearing.com supplies high quality SNL3000 plummer block housing. Default in gray cast iron GG20 material, but for heavy load and impact force applications, nodular cast iron GGG40 ductile material and solid base style are also available.
Note:
– SKF is purchasing from China SNL housings, Findbearing is able to supply the same quality split housings with reliable quality.
– CARB bearing should use the adapter sleeve with a suffix of “E” or “L”.
– Optional seals for SNL200 and SNL300 include TSN-A, TSN-G, TSN-S, TSN-ND. Optional seals for SNL500 and SNL600 include TSN-A, TSN-C, TSN-G, TSN-S, TSN-ND. For more details about optional seals, please click here.
