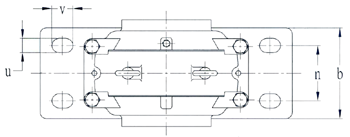

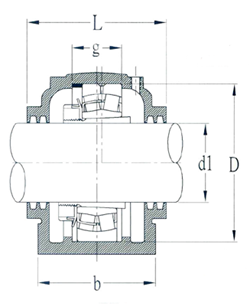

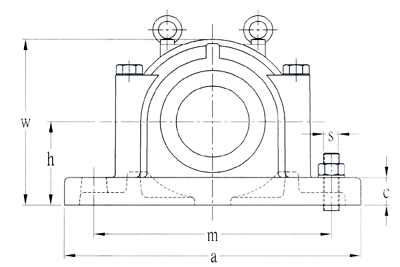

SD500 housing catalogue list
|
 |
 |
| Dimension | ||||||||||||||||||||||
| SPEC.1 | d1 | D | a | b | c | g | h | L | W | m | n | u | v | S | d2 | d3 | f1 | f2 | Weight | Bearing No. | Adapter sleeve | Locating ring |
| SD534 | 150 | 310 | 620 | 230 | 60 | 106 | 180 | 270 | 360 | 510 | 140 | 36 | 52 | M30 | 153 | 183 | 10 | 13.8 | 92 | 22234K | H3134 | SR310x10 |
| SD536 | 160 | 320 | 650 | 240 | 60 | 106 | 190 | 280 | 380 | 540 | 150 | 36 | 52 | M30 | 163 | 193 | 10 | 13.8 | 105 | 22236K | H3136 | SR320x10 |
| SD538 | 170 | 340 | 700 | 260 | 65 | 112 | 200 | 290 | 400 | 570 | 160 | 36 | 55 | M30 | 173 | 203 | 10 | 13.8 | 125 | 22238K | H3138 | SR340x10 |
| SD540 | 180 | 360 | 740 | 270 | 65 | 118 | 210 | 300 | 420 | 610 | 170 | 36 | 55 | M30 | 183 | 213 | 10 | 13.8 | 140 | 22240K | H3140 | SR360x10 |
| SD544 | 200 | 400 | 820 | 300 | 70 | 128 | 240 | 330 | 475 | 680 | 190 | 43 | 62 | M36 | 203 | 240 | 11 | 15.7 | 200 | 22244K | H3144 | SR400x10 |
| SD548 | 220 | 440 | 880 | 310 | 85 | 140 | 260 | 340 | 515 | 740 | 200 | 43 | 62 | M36 | 223 | 260 | 11 | 15.7 | 230 | 22248K | H3148 | SR440x10 |
| SD552 | 240 | 480 | 940 | 340 | 85 | 150 | 280 | 370 | 560 | 790 | 210 | 43 | 62 | M36 | 243 | 286 | 12 | 17.4 | 300 | 22252K | H3152 | SR480x10 |
| SD556 | 260 | 500 | 990 | 370 | 100 | 150 | 300 | 390 | 590 | 830 | 230 | 50 | 70 | M42 | 263 | 306 | 12 | 17.4 | 350 | 22256K | H3156 | SR500x10 |
| SD560 | 280 | 540 | 1060 | 390 | 100 | 160 | 325 | 410 | 640 | 890 | 250 | 50 | 70 | M42 | 283 | 332 | 13 | 19.1 | 450 | 22260K | H3160 | SR540x10 |
| SD564 | 300 | 580 | 1110 | 420 | 110 | 170 | 355 | 440 | 690 | 930 | 270 | 58 | 77 | M48 | 303 | 352 | 13 | 19.1 | 550 | 22264K | H3164 | SR580x10 |
Findbearing.com supplies high quality SD500 split housing.
– Available on both gray cast iron GG20 and nodular cast iron GGG40 material, can be produced according to drawing with customized designs.
