CF-Y Rod End Catalogue list
| Other Bearing No. | Dimensions | |||||||||||||

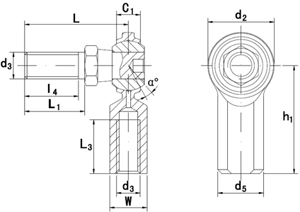

| SPEC.1 | SPEC.2 | d2 | d3 | d5 | w | C1 | h1 | L3 | L | L1 | L4 | a | Load ratings | Mass |
| CF3Y | CFL3Y | 15.88 | 10-32 | 10.31 | 7.92 | 5.94 | 26.97 | 12.7 | 25.4 | 12.7 | 11.1 | 25 | 9.427 | 0.023 |
| CF4Y | CFL4Y | 19.05 | 1/4-28 | 11.91 | 9.52 | 6.35 | 33.32 | 17.45 | 26.19 | 14.27 | 12.7 | 25 | 14.269 | 0.027 |
| CF5Y | CFL5Y | 22.23 | 5/16-24 | 12.7 | 11.1 | 7.92 | 34.93 | 17.45 | 30.96 | 17.45 | 15.06 | 25 | 17.009 | 0.05 |
| CF6Y | CFL6Y | 25.4 | 3/8-24 | 17.45 | 14.27 | 9.11 | 41.28 | 20.62 | 39.67 | 23.01 | 20.62 | 25 | 22.627 | 0.077 |
| CF7Y | CFL7Y | 28.58 | 7/16-20 | 19.05 | 15.88 | 10.31 | 46.02 | 23.8 | 44.45 | 26.97 | 23.8 | 25 | 28.4 | 0.122 |
| CF8Y | CFL8Y | 33.32 | 1/2-20 | 22.23 | 19.05 | 11.5 | 53.98 | 26.97 | 50.8 | 28.58 | 25.4 | 25 | 40.459 | 0.181 |
| CF10Y | CFL10Y | 38.1 | 5/8-18 | 25.4 | 22.23 | 12.29 | 63.5 | 34.93 | 63.5 | 38.1 | 34.93 | 25 | 43.203 | 0.308 |
| CF12Y | CFL12Y | 44.45 | 3/4-16 | 28.58 | 25.4 | 15.06 | 73.03 | 39.67 | 76.2 | 46.02 | 41.28 | 25 | 63.193 | 0.504 |
CF-Y is CF rod ends plus thread stud, rod body pressed formation, zinc plated. Sliding contact surface is Steel/Steel.
