CF-T Rod End Catalogue list

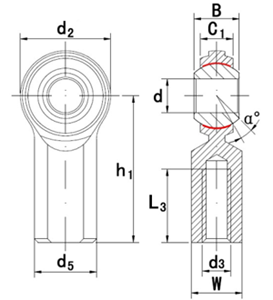

| Other Bearing No. | Dimensions | |||||||||||||
| SPEC.1 | SPEC.2 | d | d2 | d3 | d5 | B | C1 | h1 | L3 | dk | W | a | Load ratings | Mass |
| CF3T | CFL3T | 4.826 | 15.875 | 10-32 | 10.31 | 7.92 | 5.94 | 26.97 | 12.7 | 11.1 | 7.92 | 10 | 8.02 | 0.018 |
| CF4T | CFL4T | 6.35 | 19.05 | 1/4-28 | 11.89 | 9.52 | 6.35 | 33.32 | 17.45 | 12.7 | 9.52 | 13.5 | 16.082 | 0.023 |
| CF5T | CFL5T | 7.938 | 22.23 | 5/16-24 | 12.7 | 11.1 | 7.92 | 34.93 | 17.45 | 15.88 | 11.1 | 11 | 28.693 | 0.036 |
| CF6T | CFL6T | 9.525 | 25.4 | 3/8-24 | 17.45 | 12.7 | 9.11 | 41.28 | 20.62 | 18.26 | 14.27 | 11 | 38.371 | 0.059 |
| CF7T | CFL7T | 11.113 | 28.58 | 7/16-20 | 19.05 | 14.27 | 10.31 | 46.02 | 23.8 | 20.62 | 15.88 | 10.5 | 41.676 | 0.082 |
| CF8T | CFL8T | 12.7 | 33.32 | 1/2-20 | 22.23 | 15.88 | 11.5 | 53.98 | 26.97 | 23.8 | 19.05 | 10 | 67.2 | 0.132 |
| CF10T | CFL10T | 15.875 | 38.1 | 5/8-18 | 25.4 | 19.05 | 12.29 | 63.5 | 34.93 | 28.58 | 22.23 | 13 | 75.271 | 0.195 |
| CF12T | CFL12T | 19.05 | 44.45 | 3/4-16 | 28.58 | 22.23 | 15.06 | 73.03 | 39.67 | 33.32 | 25.4 | 12 | 113.642 | 0.295 |
CF-T is similar to CF series rod ends with female thread, but outer race has PTFE fabric. Sliding contact surface is Steel/PTFE fabric.
