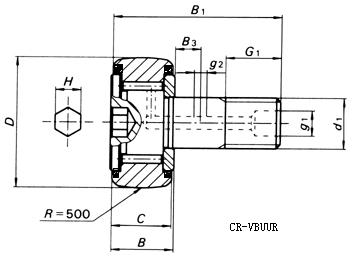

CR-VBUUR curve roller bearing catalogue list
| Dimension | Load Rating | ||||||||||||||
| SPEC.1 | d1 | D | C | B | B1 | g 1 | g 2 | G1 | B3 | H | Assemble Dimension | Max tightening torque | C | Co | Limiting speed |
| CR5VBUUR | 4.826 | 12.7 | 8.731 | 9.525 | 22.225 | 3.175 | 6.35 | 3.175 | 8.334 | 0.2 | 430 | 480 | 15000 | ||
| CR8-1VBUUR | 4.826 | 12.7 | 9.525 | 10.319 | 26.194 | 3.175 | 6.35 | 3.175 | 8.334 | 0.2 | 480 | 550 | 15000 | ||
| CR10VBUUR | 6.35 | 15.875 | 10.319 | 11.112 | 26.988 | 3.175 | 7.938 | 3.175 | 11.509 | 0.3 | 590 | 780 | 11000 | ||
| CR10-1VBUUR | 6.35 | 15.875 | 11.112 | 11.906 | 30.956 | 3.175 | 7.938 | 3.175 | 11.509 | 0.3 | 650 | 870 | 11000 | ||
| CR12VBUUR | 9.525 | 19.05 | 12.7 | 13.494 | 35.719 | 4.762 | 2.381 | 9.525 | 6.35 | 4.762 | 13.494 | 1.8 | 890 | 1250 | 8000 |
| CR14VBUUR | 9.525 | 22.225 | 12.7 | 13.494 | 35.719 | 4.762 | 2.381 | 9.525 | 6.35 | 4.762 | 15.081 | 1.8 | 890 | 1250 | 8000 |
| CR16VBUUR | 11.112 | 25.4 | 15.875 | 16.669 | 42.063 | 4.762 | 3.175 | 12.7 | 6.35 | 6.35 | 17.859 | 2 | 1330 | 2310 | 6500 |
| CR18VBUUR | 11.112 | 28.575 | 15.875 | 16.669 | 42.063 | 4.762 | 3.175 | 12.7 | 6.35 | 6.35 | 19.05 | 2 | 1330 | 2310 | 6500 |
| CR20VBUUR | 12.7 | 31.75 | 19.05 | 19.844 | 51.594 | 4.762 | 3.175 | 15.875 | 7.938 | 6.35 | 21.828 | 2.9 | 2400 | 3230 | 5500 |
| CR22VBUUR | 12.7 | 34.925 | 19.05 | 19.844 | 51.594 | 4.762 | 3.175 | 15.875 | 7.938 | 6.35 | 21.828 | 2.9 | 2400 | 3230 | 5500 |
| CR24VBUUR | 15.875 | 38.1 | 22.225 | 23.019 | 61.119 | 4.762 | 3.969 | 19.05 | 9.525 | 7.938 | 26.196 | 6.6 | 2870 | 4090 | 4500 |
| CR26VBUUR | 15.875 | 41.275 | 22.225 | 23.019 | 61.119 | 4.762 | 3.969 | 19.05 | 9.525 | 7.938 | 26.196 | 6.6 | 2870 | 4090 | 4500 |
| CR28VBUUR | 19.05 | 44.45 | 25.4 | 26.194 | 70.6 | 4.762 | 3.969 | 22.225 | 11.112 | 7.938 | 32.543 | 12 | 3590 | 5670 | 4000 |
| CR30VBUUR | 19.05 | 47.625 | 25.4 | 26.194 | 40.644 | 4.762 | 3.969 | 22.225 | 11.112 | 7.938 | 32.543 | 12 | 3590 | 5670 | 4000 |
| CR32VBUUR | 22.225 | 50.8 | 31.75 | 32.544 | 83.3 | 4.762 | 4.762 | 25.4 | 12.7 | 11.112 | 37.306 | 19 | 4660 | 8220 | 3500 |
| CR36VBUUR | 22.225 | 57.15 | 31.75 | 32.544 | 83.3 | 4.762 | 4.762 | 25.4 | 12.7 | 11.112 | 37.306 | 19 | 4660 | 8220 | 3500 |
| CR8VBUU | 4.826 | 12.7 | 8.731 | 9.525 | 22.225 | 3.175 | 6.35 | 3.175 | 8.334 | 0.2 | 430 | 480 | 15000 | ||
| CR8-1VBUU | 4.826 | 12.7 | 9.525 | 10.319 | 26.194 | 3.175 | 6.35 | 3.175 | 8.334 | 0.2 | 480 | 550 | 15000 | ||
| CR10VBUU | 6.35 | 15.875 | 10.319 | 11.112 | 26.988 | 3.175 | 7.938 | 3.175 | 11.509 | 0.3 | 590 | 780 | 11000 | ||
| CR10-1VBUU | 6.35 | 15.875 | 11.112 | 11.906 | 30.956 | 3.175 | 7.938 | 3.175 | 11.509 | 0.3 | 650 | 870 | 11000 | ||
| CR12VBUU | 9.525 | 19.05 | 12.7 | 13.494 | 35.719 | 4.762 | 2.381 | 9.525 | 6.35 | 4.762 | 13.494 | 1.8 | 890 | 1250 | 8000 |
| CR14VBUU | 9.525 | 22.225 | 12.7 | 13.494 | 35.719 | 4.762 | 2.381 | 9.525 | 6.35 | 4.762 | 15.081 | 1.8 | 890 | 1250 | 8000 |
| CR16VBUU | 11.112 | 25.4 | 15.875 | 16.669 | 42.063 | 4.762 | 3.175 | 12.7 | 6.35 | 6.35 | 17.859 | 2 | 1330 | 2310 | 6500 |
| CR18VBUU | 11.112 | 28.575 | 15.875 | 16.669 | 42.063 | 4.762 | 3.175 | 12.7 | 6.35 | 6.35 | 19.05 | 2 | 1330 | 2310 | 6500 |
| CR20VBUU | 12.7 | 31.75 | 19.05 | 19.844 | 51.594 | 4.762 | 3.175 | 15.875 | 7.938 | 6.35 | 21.828 | 2.9 | 2400 | 3230 | 5500 |
| CR22VBUU | 12.7 | 34.925 | 19.05 | 19.844 | 51.594 | 4.762 | 3.175 | 15.875 | 7.938 | 6.35 | 21.828 | 2.9 | 2400 | 3230 | 5500 |
| CR24VBUU | 15.875 | 38.1 | 22.225 | 23.019 | 61.119 | 4.762 | 3.969 | 19.05 | 9.525 | 7.938 | 26.196 | 6.6 | 2870 | 4090 | 4500 |
| CR26VBUU | 15.875 | 41.275 | 22.225 | 23.019 | 61.119 | 4.762 | 3.969 | 19.05 | 9.525 | 7.938 | 26.196 | 6.6 | 2870 | 4090 | 4500 |
| CR28VBUU | 19.05 | 44.45 | 25.4 | 26.194 | 70.6 | 4.762 | 3.969 | 22.225 | 11.112 | 7.938 | 32.543 | 12 | 3590 | 5670 | 4000 |
| CR30VBUU | 19.05 | 47.625 | 25.4 | 26.194 | 40.644 | 4.762 | 3.969 | 22.225 | 11.112 | 7.938 | 32.543 | 12 | 3590 | 5670 | 4000 |
| CR32VBUU | 22.225 | 50.8 | 31.75 | 32.544 | 83.3 | 4.762 | 4.762 | 25.4 | 12.7 | 11.112 | 37.306 | 19 | 4660 | 8220 | 3500 |
| CR36VBUU | 22.225 | 57.15 | 31.75 | 32.544 | 83.3 | 4.762 | 4.762 | 25.4 | 12.7 | 11.112 | 37.306 | 19 | 4660 | 8220 | 3500 |
Findbearing.com supplies high quality CRVBUU, CRVBUUR curve roller bearing.
Note:
– Inch series.
– CRVBUU type is the sealed type with cylindrical outside diameter.
– CRVBUUR is the sealed type with crowned outside diameter.
– With oil lubrication, the speed can be increased by approximately 30%.
– For the stud type track roller, the speed can be reduced by approximately 20%.
