SNU500

SNU500 bearing housing catalogue list

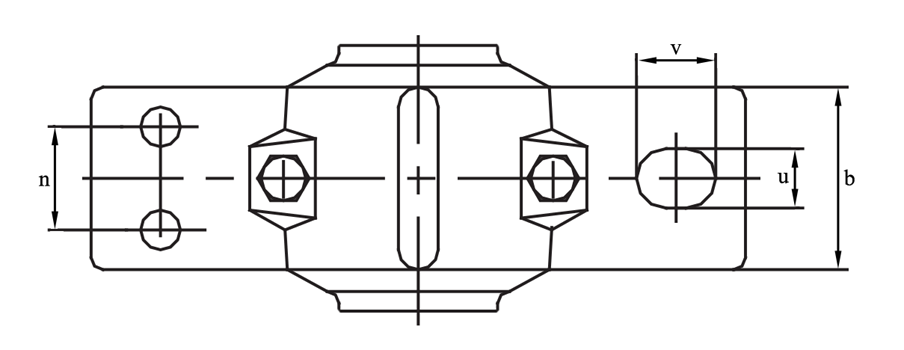

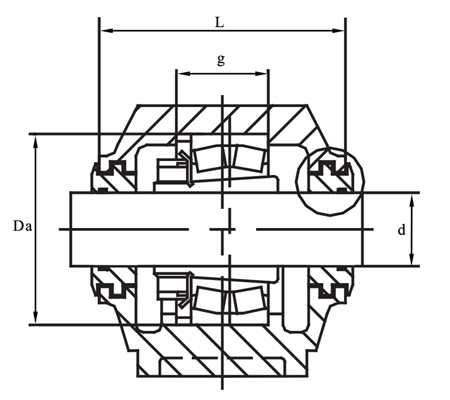

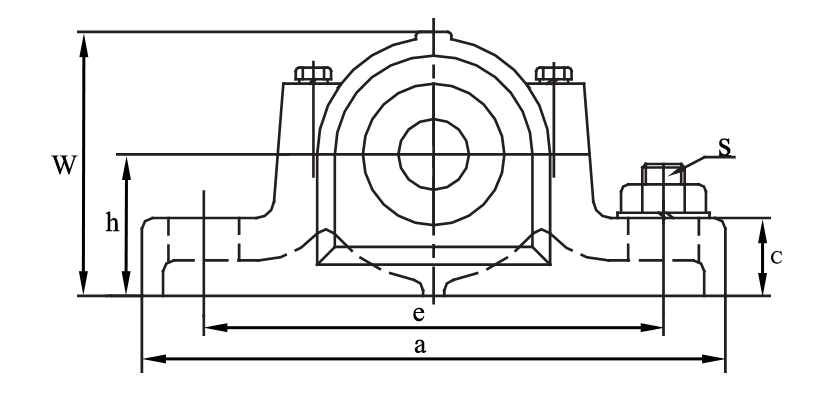

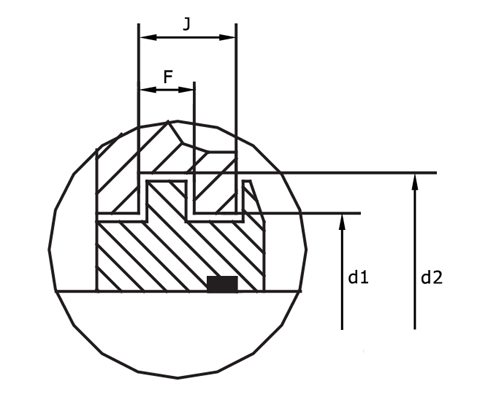

	Dimension
SPEC.1	d	H	a	e	b	u	v	C	w	L	d1	d2	n	J	F	g	Da	MS1	MS2	Weight
SNU505	20	40	165	130	46	13	20	19	71	67	31.5	39.5		7.5	5	25	52	M10		1.9
SNU506-605	25	50	185	150	52	13	20	22	87	77	36.5	44.5		7.5	5	32	62	M10		2.2
SNU507	30	50	185	150	52	13	20	22	92	82	46.5	54.5		7.5	5	34	72	M10		2.4
SNU508-607	35	60	205	170	60	15	20	25	106	85	51.5	59.5		7.5	5	39	80	M12		3.2
SNU509	40	60	205	170	60	15	20	25	109	85	56.5	64.5		8.5	5	30	85	M12		3.5
SNU510-608	45	60	205	170	60	15	20	25	112	90	62	70.5		8.5	5	41	90	M12		3.85
SNU511-609	50	70	255	210	70	18	23	28	127	95	67	75.5	35	8.5	5	44	100	M16	M12	5.2
SNU512-610	55	70	255	210	70	18	23	30	133	105	72	80.5	35	8.5	5	48	110	M16	M12	6.7
SNU513-611	60	80	275	230	80	18	24	30	148	110	77	85.5	35	8.5	5	51	120	M16	M12	7.9
SNU515-612	65	80	280	230	80	18	26	30	154	115	87	95.5	40	8.5	5	56	130	M16	M12	7.7
SNU516-613	70	95	315	260	90	22	27	32	175	120	92.5	101	40	10.5	5	58	140	M20	M12	11
SNU517	75	95	320	260	90	22	30	32	181	125	97.5	106	50	10.5	5	61	150	M20	M12	12.7
SNU518-615	80	100	345	290	100	22	27	35	192	140	102.5	111	50	10.5	5	65	160	M20	M16	14.8
SNU519-616	85	112	345	290	100	22	27	35	209	145	131	141	50	11.5	6	68	170	M20	M16	15.5
SNU520-617	90	112	380	320	110	26	32	40	215	160	137.5	147.5	60	11.5	6	70	180	M24	M16	18.4
SNU522-619	100	125	410	350	120	26	32	45	239	175	147.5	157.5	70	11.5	6	80	200	M24	M16	24.8
SNU524-620	110	140	410	350	120	26	32	45	271	185	157.5	167.5	70	11.5	6	86	215	M24	M16	32.2
SNU526	115	150	445	380	130	28	35	50	290	190	167.5	177.5	70	13	6	90	230	M24	M20	39.8
SNU528	125	150	500	420	150	35	42	50	302	205	177.5	187.5	80	13	6	98	250	M30	M24	48.8
SNU530	135	160	530	450	160	35	42	60	323	220	192.5	202.5	90	13.5	6	106	270	M30	M24	56.5
SNU532	140	170	550	470	160	35	42	60	344	235	202.5	212.5	90	13.5	6	114	290	M30	M24	63.5

– Inter exchangeable with SNL, SNH, SNG, SNA, SNK housings.
– Available on customized footer designs including solid base according to requirement
– gray cast iron GG20 and nodular cast iron GGG40 material available
