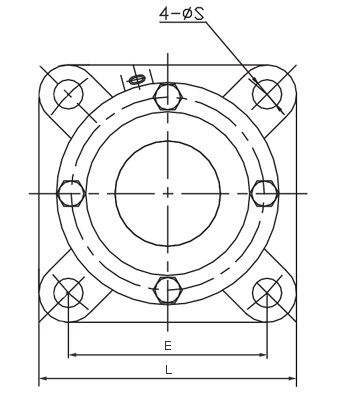

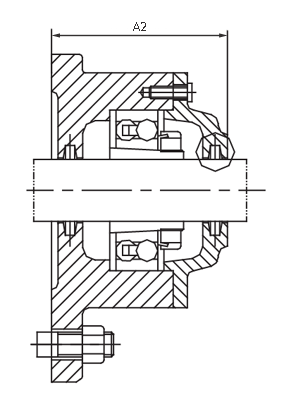

Flanged Bearing Housings 722500 DA/DB Series for self aligning ball or roller bearings with adapter sleeve
For shaft size from ∅65 ~ ∅100
| Dimensions | Housing weight | ||||||||||||||||||
| SPEC.1 | SPEC.2 | d1 | A1 | A2 | C | B1 | B2 | D | H1 | E | L | S | f1 | f2 | d2 | d3 | G | A | B |
| 722515A | 722515B | 65 | 100 | 107 | 25 | 23 | 30 | 168 | 95 | 152 | 190 | 18 | 5 | 6.8 | 66.5 | 82 | M16 | 10.55 | 10.85 |
| 722516A | 722516B | 70 | 102 | 114 | 25 | 22 | 31 | 176 | 98 | 152 | 196 | 18 | 6 | 8.1 | 71.5 | 89 | M16 | 12.3 | 12.7 |
| 722517A | 722517B | 75 | 107 | 115 | 25 | 24 | 31 | 188 | 105 | 170 | 210 | 22 | 6 | 8.1 | 76.5 | 94 | M16 | 14.75 | 15.5 |
| 722518A | 722518B | 80 | 112 | 119 | 25 | 25 | 30 | 198 | 105 | 170 | 210 | 22 | 6 | 8.1 | 81.5 | 99 | M16 | 16.35 | 17 |
| 722520A | 722520B | 90 | 124 | 134 | 30 | 31 | 30 | 224 | 125 | 198 | 250 | 22 | 7 | 9.30 | 92 | 111 | M20 | 22.3 | 22.9 |
| 722522A | 722522B | 100 | 134 | 137 | 30 | 33 | 30 | 246 | 135 | 219 | 270 | 22 | 8 | 10.8 | 102 | 125 | M20 | 28.3 | 27.8 |

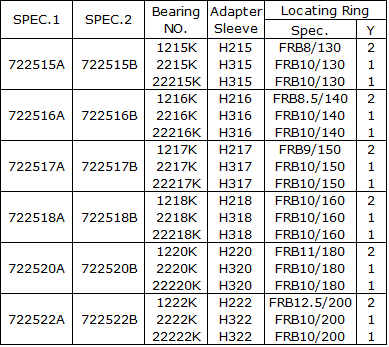

Appropriate bearing and accessories:
