Flanged Bearing Housings 722500 DA/DB Series for self aligning ball or roller bearings with adapter sleeve
| Dimensions | Housing weight | |||||||||||||||||||

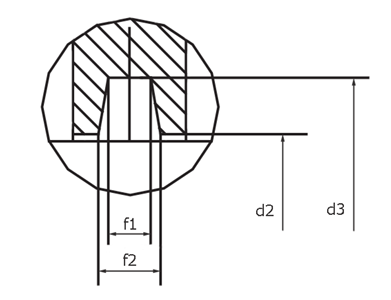

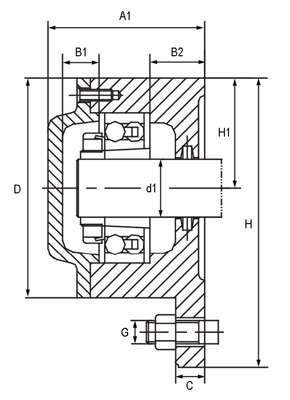

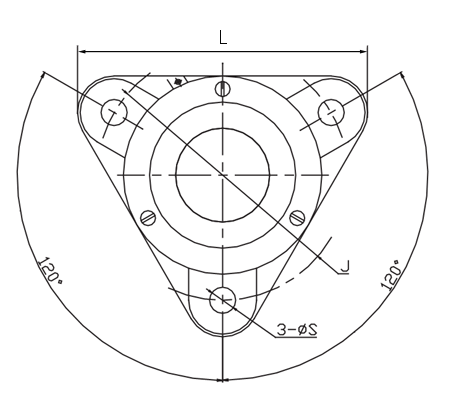

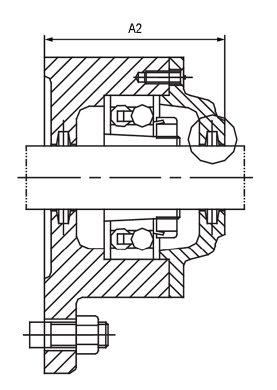

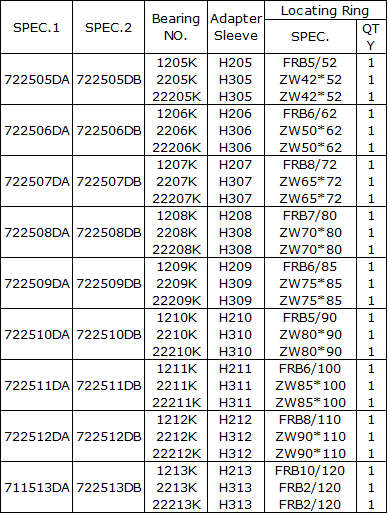

| SPEC.1 | SPEC.2 | d1 | A1 | A2 | C | B1 | B2 | D | H | H1 | J | L | S | f1 H12 | f2 | d2 H12 | d3 H12 | G | DA | DB |
| 722505DA | 722505DB | 20 | 51.5 | 56.5 | 10 | 12.5 | 15 | 75 | 100 | 38 | 96 | 110 | 11.5 | 3 | 4.2 | 21.5 | 31 | M10 | 1.48 | 1.55 |
| 722506DA | 722506DB | 25 | 57 | 59.5 | 12 | 15 | 16 | 86 | 117 | 44 | 116 | 130 | 11.5 | 4 | 5.4 | 26.5 | 38 | M10 | 2 | 2.1 |
| 722507DA | 722507DB | 30 | 59.5 | 63.5 | 12 | 14.5 | 16 | 97 | 130 | 48.5 | 130 | 145 | 14 | 4 | 5.4 | 31.5 | 43 | M12 | 2.9 | 3 |
| 722508DA | 722508DB | 35 | 64 | 65.5 | 12 | 18 | 17 | 108 | 143 | 54 | 140 | 160 | 14 | 4 | 5.4 | 36.5 | 48 | M12 | 3.43 | 3.48 |
| 722509DA | 722509DB | 40 | 64.5 | 69.5 | 12 | 16.5 | 19 | 113 | 160 | 60 | 160 | 180 | 14 | 4 | 5.4 | 41.5 | 53 | M12 | 4.2 | 4.3 |
| 722510DA | 722510DB | 45 | 68.5 | 73 | 15 | 17.5 | 22 | 118 | 160 | 60 | 160 | 180 | 14 | 4 | 5.4 | 46.5 | 58 | M12 | 4.3 | 4.45 |
| 722511DA | 722511DB | 50 | 75.5 | 81.5 | 15 | 19.5 | 24 | 128 | 172 | 65 | 170 | 192 | 14 | 5 | 6.8 | 51.5 | 67 | M12 | 5.25 | 5.45 |
| 722512DA | 722512DB | 55 | 77 | 82 | 15 | 19 | 23 | 142 | 189 | 72 | 180 | 210 | 14 | 5 | 6.8 | 56.5 | 72 | M12 | 6.8 | 7.15 |
| 711513DA | 722513DB | 60 | 80 | 86 | 15 | 20 | 22 | 152 | 203 | 78 | 190 | 225 | 14 | 5 | 6.8 | 62 | 77 | M12 | 7.65 | 7.8 |
For shaft size from ∅20 ~ ∅60
– Both through shaft and shat end (DA/DB) are available.
