SNL600 plummer block housing Catalogue list
 |
 |
 |

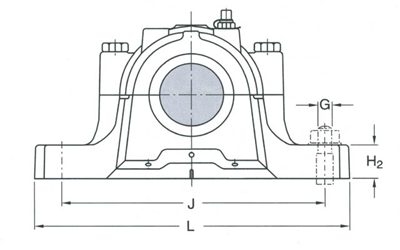

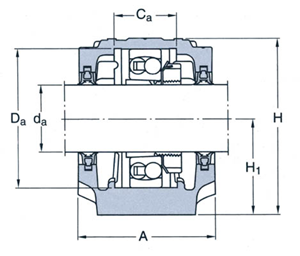

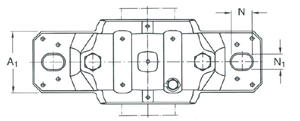

| Dimensions | Width across seal | Appropriate beaing and associated components | Appropriate beaing and associated components | ||||||||||||||||||||
| SPEC.1 | da | A | A1 | H | H1 | H2 | J | L | N | N1 | G | A2 | A3 | End cover | Self-aligning ball | Spherical roller bearing | Adapter sleeve | Locating rings | Self-aligning ball | Spherical roller bearing | CARB bearing | Adapter sleeve | Locating rings |
| SNL605 | 20 | 77 | 52 | 89 | 50 | 22 | 150 | 185 | 20 | 15 | 12 | 89 | 135 | ASNH506-605 | 1305EK | H305 | FRB7.5/62 | 2305EK | H2305 | FRB4/62 | |||
| SNL606 | 25 | 82 | 52 | 93 | 50 | 22 | 150 | 185 | 20 | 15 | 12 | 94 | 140 | ASNH507-606 | 1306EK | H306 | FRB7.5/72 | 2306EK | H2306 | FRB3.5/72 | |||
| SNL607 | 30 | 85 | 60 | 107 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | 97 | 145 | ASNH508-607 | 1307EK | H307 | FRB9/80 | 2307EK | H2307 | FRB4/80 | |||
| SNL608 | 35 | 90 | 60 | 113 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | 102 | 150 | ASNH510-608 | 1308EK | 21308CCK | H308 | FRB9/90 | 2308EK | 22308CCK/W33 | H2308 | FRB4/90 | |
| SNL609 | 40 | 95 | 70 | 127 | 70 | 28 | 210 | 255 | 24 | 18 | 16 | 107 | 155 | ASNH511-609 | 1309EK | 21309EK | H309 | FRB9.5/100 | 2309EK | 22309CCK/W33 | H2309 | FRB4/100 | |
| SNL610 | 45 | 105 | 70 | 133 | 70 | 30 | 210 | 255 | 24 | 18 | 16 | 117 | 165 | ASNH512-610 | 1310EK | 21310EK | H310 | FRB10.5/90110 | 2310K | 22310CCK/W33 | H2310 | FRB4/110 | |
| SNL611 | 50 | 110 | 80 | 148 | 80 | 30 | 230 | 275 | 24 | 18 | 16 | 122 | 170 | ASNH513-611 | 1311EK | 21311EK | H311 | FRB11/120 | 2311K | 22311EK | H2311 | FRB4/120 | |
| SNL612 | 55 | 115 | 80 | 154 | 80 | 30 | 230 | 280 | 24 | 18 | 16 | 127 | 175 | ASNH515-612 | 1312EK | 21312EK | H312 | FRB12.5/130 | 2312K | 22312EK | H2312 | FRB5/130 | |
| SNL613 | 60 | 120 | 90 | 175 | 95 | 32 | 260 | 315 | 28 | 22 | 20 | 138 | 180 | ASNH516-613 | 1313EK | 21313EK | H313 | FRB12.5/140 | 2313K | 22313EK | H2313 | FRB5/140 | |
| SNL615 | 65 | 140 | 100 | 193 | 100 | 35 | 290 | 245 | 28 | 22 | 20 | 158 | 200 | ASNH518-615 | 1315K | 21315EK | H315 | FRB14/160 | 2315K | 22315EK | C2315K | H2315 | FRB5/160 |
| SNL616 | 70 | 145 | 100 | 210 | 112 | 35 | 290 | 345 | 28 | 22 | 20 | 163 | 205 | ASNH519-616 | 1316K | 21316EK | H316 | FRB14.5/170 | 2316K | 22316EK | C2316K | H2316 | FRB5/170 |
| SNL617 | 75 | 160 | 110 | 215 | 112 | 40 | 320 | 380 | 32 | 26 | 24 | 178 | 220 | ASNH520-617 | 1317K | 21317EK | H317 | FRB14.5/180 | 2317K | 22317EK | C2317K | H2317 | FRB5/180 |
| SNL619 | 85 | 175 | 120 | 239 | 125 | 45 | 350 | 410 | 32 | 26 | 24 | 191 | 235 | ASNH522-619 | 1319K | 21319EK | H319 | FRB17.5/200 | 2319K | 22319EK | H2319 | FRB6.5/200 | |
| SNL620 | 90 | 185 | 120 | 271 | 140 | 45 | 350 | 410 | 32 | 26 | 24 | 199 | 240 | ASNH524-620 | 1320K | 21320EK | H320 | FRB19.5/215 | 2320K | 22320EK | C2320K | H2320 | FRB6.5/215 |
Findbearing.com supplies high quality SNL600 plummer block housing. default in gray cast iron GG20 material, but also available on nodular cast iron GGG40 material and Solid base style.
Note:
– SKF is purchasing from China SNL housings, Findbearing is able to supply the same quality split housings with reliable quality.
– CARB bearing should use the adapter sleeve with a suffix of “E” or “L”.
– Optional seals for SNL200 and SNL300 include TSN-A, TSN-G, TSN-S, TSN-ND. Optional seals for SNL500 and SNL600 include TSN-A, TSN-C, TSN-G, TSN-S, TSN-ND. For more details about optional seals, please click here.
