SNL300 plummer block housing Catalogue list
 |
 |
 |

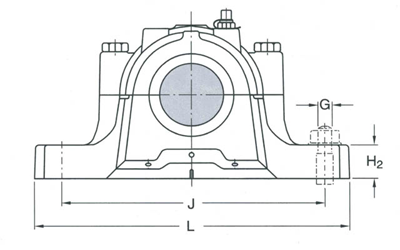

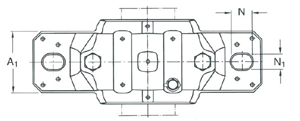

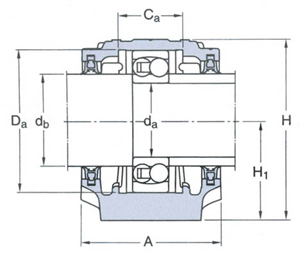

| Dimensions | ||||||||||||||||||||||
| SPEC. | da | A | A1 | H | H1 | H2 | J | L | N | N1 | G | |||||||||||
| SNL305 | 25 | 77 | 52 | 89 | 50 | 22 | 150 | 185 | 20 | 15 | 12 | |||||||||||
| SNL306 | 30 | 82 | 52 | 93 | 50 | 22 | 150 | 185 | 20 | 15 | 12 | |||||||||||
| SNL307 | 35 | 85 | 60 | 108 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | |||||||||||
| SNL308 | 40 | 90 | 60 | 113 | 60 | 25 | 170 | 205 | 20 | 15 | 12 | |||||||||||
| SNL309 | 45 | 95 | 70 | 128 | 70 | 28 | 210 | 255 | 24 | 18 | 16 | |||||||||||
| SNL310 | 50 | 105 | 70 | 134 | 70 | 30 | 210 | 255 | 24 | 18 | 16 | |||||||||||
| SNL311 | 55 | 110 | 80 | 149 | 80 | 30 | 230 | 275 | 24 | 18 | 16 | |||||||||||
| SNL312 | 60 | 115 | 80 | 155 | 80 | 30 | 230 | 280 | 24 | 18 | 16 | |||||||||||
| SNL313 | 65 | 120 | 90 | 177 | 95 | 32 | 260 | 315 | 28 | 22 | 20 | |||||||||||
| SNL314 | 70 | 125 | 90 | 183 | 95 | 32 | 260 | 320 | 28 | 22 | 20 | |||||||||||
| SNL315 | 75 | 140 | 100 | 194 | 100 | 35 | 290 | 345 | 28 | 22 | 20 | |||||||||||
| SNL316 | 80 | 145 | 100 | 212 | 112 | 35 | 290 | 345 | 28 | 22 | 20 | |||||||||||
| SNL317 | 85 | 160 | 110 | 218 | 112 | 40 | 320 | 380 | 32 | 26 | 24 | |||||||||||
| SNL319 | 95 | 175 | 120 | 242 | 125 | 45 | 350 | 410 | 32 | 26 | 24 | |||||||||||
| SNL320 | 100 | 185 | 120 | 271 | 140 | 45 | 350 | 410 | 32 | 26 | 24 | |||||||||||
Findbearing.com supplies high quality SNL300 plummer block housing. default in gray cast iron GG20 material, but also available on nodular cast iron GGG40 material and Solid base style.
Note:
– SKF is purchasing from China SNL housings, Findbearing is able to supply the same quality split housings with reliable quality.
– CARB bearing should use the adapter sleeve with a suffix of “E” or “L”.
– Optional seals for SNL200 and SNL300 include TSN-A, TSN-G, TSN-S, TSN-ND. Optional seals for SNL500 and SNL600 include TSN-A, TSN-C, TSN-G, TSN-S, TSN-ND. For more details about optional seals, please click here.
