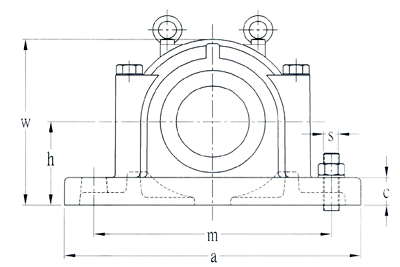

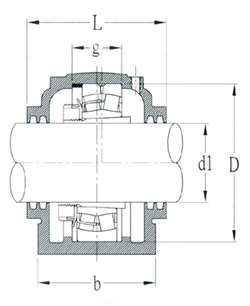

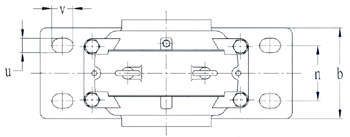

SD600 housing catalogue list
 |
 |
 |
| Dimension | ||||||||||||||||||||||
| SPEC.1 | d1 | D | a | b | c | g | h | L | W | m | n | u | v | S | d2 | d3 | f1 | f2 | Weight | Bearing No. | Adapter sleeve | Locating ring |
| SD634 | 150 | 360 | 740 | 270 | 65 | 130 | 210 | 300 | 420 | 610 | 170 | 36 | 55 | M30 | 153 | 183 | 10 | 13.8 | 140 | 22334K | H2334 | SR360x10 |
| SD636 | 160 | 380 | 780 | 290 | 70 | 136 | 225 | 320 | 450 | 640 | 180 | 43 | 62 | M36 | 163 | 193 | 10 | 13.8 | 170 | 22336K | H2336 | SR380x10 |
| SD638 | 170 | 400 | 820 | 300 | 70 | 142 | 240 | 330 | 475 | 680 | 190 | 43 | 62 | M36 | 173 | 203 | 10 | 13.8 | 200 | 22338K | H2338 | SR400x10 |
| SD640 | 180 | 420 | 860 | 320 | 85 | 148 | 250 | 350 | 500 | 710 | 200 | 43 | 62 | M36 | 183 | 213 | 10 | 13.8 | 230 | 22340K | H2340 | SR420x10 |
| SD644 | 200 | 460 | 920 | 330 | 85 | 155 | 280 | 360 | 550 | 770 | 210 | 43 | 62 | M36 | 203 | 240 | 11 | 15.7 | 290 | 22344K | H2344 | SR460x10 |
| SD648 | 220 | 500 | 990 | 370 | 100 | 165 | 300 | 390 | 590 | 830 | 230 | 50 | 70 | M42 | 223 | 260 | 11 | 15.7 | 350 | 22348K | H2348 | SR500x10 |
| SD652 | 240 | 540 | 1060 | 390 | 100 | 175 | 325 | 410 | 640 | 890 | 250 | 50 | 70 | M42 | 243 | 286 | 12 | 17.4 | 450 | 22352K | H2352 | SR540x10 |
| SD656 | 260 | 580 | 1110 | 420 | 110 | 185 | 355 | 440 | 690 | 930 | 270 | 58 | 77 | M48 | 263 | 306 | 12 | 17.4 | 550 | 22356K | H2356 | SR580x10 |
Findbearing.com supplies high quality SD600 split housing.
gray cast iron GG20 and nodular cast iron GGG40 material available
