SAF500

SAF500 bearing housing catalogue list

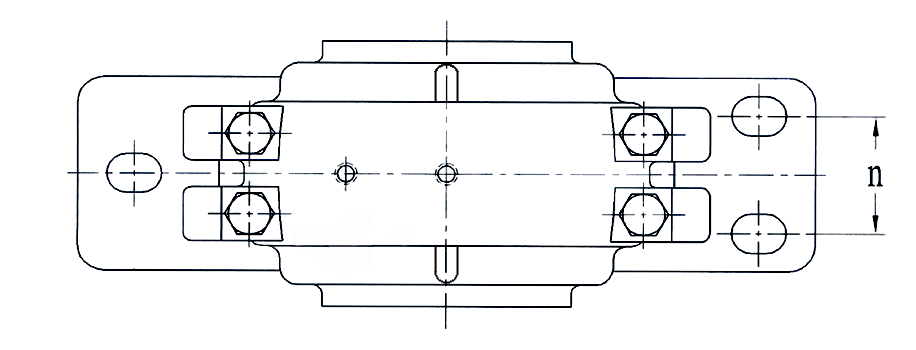

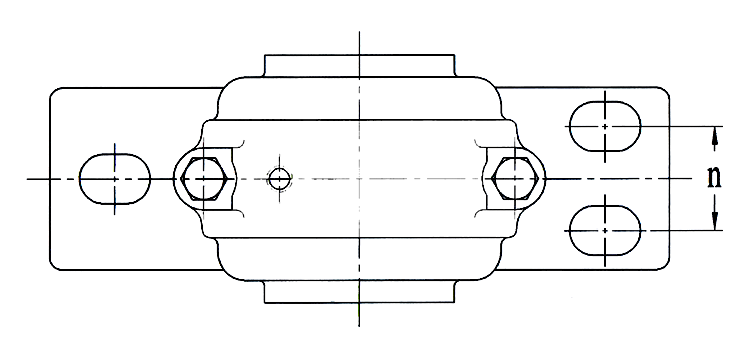

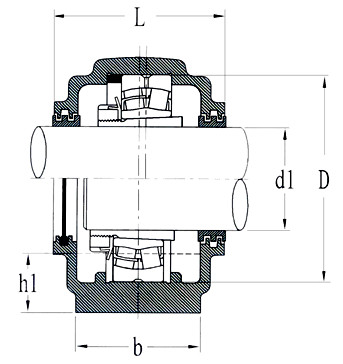

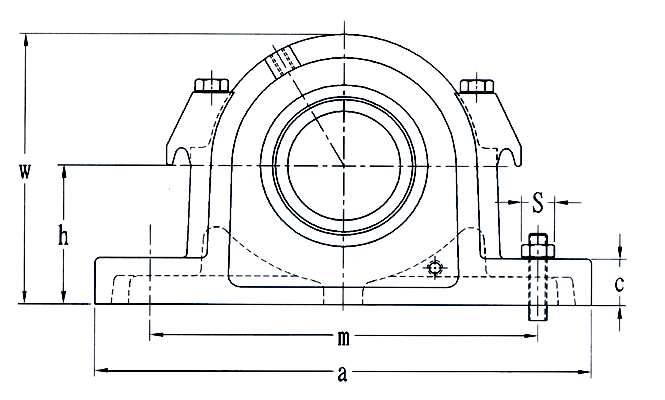

	Dimension
SPEC.1	d1	h/H2	w	L	L1	a	b	c	e(max)	e(min)	n	Weight
SAF505	3/4	38.1	75	70	73	165	45	18	139.7	118		1.8
SAF506	15/16	44.5	86	78	83	191	51	18	156	133		2.2
SAF507	1-3/16	50.8	97	81	83	191	51	21	156	143		2.7
SAF509	1-7/16	57.2	111	87	92	210	61	21	178	159		3.9
SAF510	1-11/16	63.5	121	87	99	210	61	24	178	165		4.3
SAF511	1-15/16	69.9	133	95	114	245	70	24	200	188		5
SAF513	2-3/16	76.2	151	108	114	279	80	25	241	206		7.7
FSAF513	2-3/16	76.2	151	108	114	279	80	25	241	206	50.8	7.7
SAF515	2-7/16	82.5	162	118	121	286	80	29	245	219		8.69
FSAF515	2-7/16	82.5	162	118	121	286	80	29	245	219	47.7	8.69
SAF516	2-11/16	88.9	175	121	124	330	89	30	279	245		11.6
FSAF516	2-11/16	88.9	175	121	124	330	89	30	279	245	54.1	11.6
SAF517	2-15/16	95.3	186	122	127	330	89	32	279	251		12.3
FSAF517	2-15/16	95.3	186	122	127	330	89	32	279	251	54.1	12.3
SAF518	3-3/16	101.6	197	140	146	349	99	33	295	264		15.4
FSAF518	3-3/16	101.6	197	140	146	349	99	33	295	264	54.1	15.4
SAF520	3-7/16	114.3	222	148	152	387	111	45	333	295		27.3
FSAF520	3-7/16	114.3	222	148	152	387	111	45	333	295	60.5	27.3
SAF522	3-15/16	125.4	245	164	165	419	121	51	368	321	69.9	35
SAF524	4-3/16	133.4	260	181	188	419	121	54	368	337	69.9	43.2
SAF526	4-7/16	152.4	292	197	203	467	130	61	406	372	82.5	58.6
SAF528	4-15/16	152.4	298	187	194	511	149	61	435	406	85.9	62
SAF530	5-3/16	160.4	318	207	213	540	159	64	464	432	95.3	76.8
SAF532	5-7/16	169.9	338	216	222	559	159	67	489	442	95.3	81.3
SAF534	5-15/16	179.4	360	235	245	629	172	70	549	492	108	104.5
SAF536	6-7/16	190.5	378	245	254	680	181	76	600	530	117.6	117.6
SAF538	6-15/16	200	398	267	273	711	191	80	619	549	114.3	135
SAF540	7-3/16	209.6	419	279	286	749	203	86	635	572	127	167.5
SAF544	7-15/16	241.3	473	298	305	832	222	95	708	629	133.4	230.2

Findbearing.com supplies high quality SAF500 split housing.

Note:
– Details of the appropriate bearing, associated adapter sleeve and the locating ring are presented in subpages. Please click to enter each detail type.
– SAF524 and above sizes are supplied with eye bolt.
