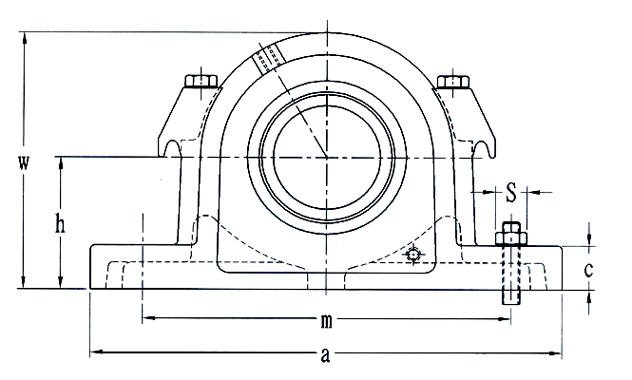

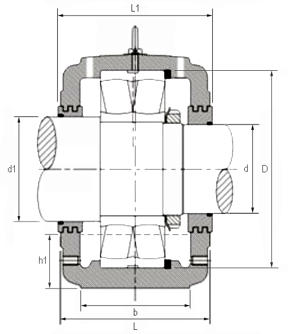

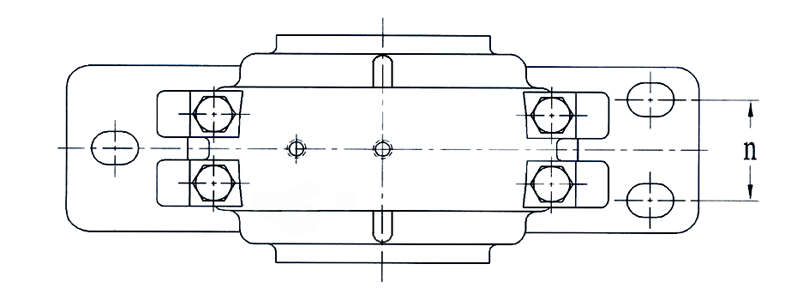

SAF300 bearing housing catalogue list
| Dimension | s | Shaft Dia. | TS ring | ||||||||||||||||
| SPEC.1 | D | a | b | c | h | h1 | L | L1 | w | m(max) | m(min) | n | MS1 | MS2 | d1 | d | d1 | d | Bearing No. |
| SAF309 | 100 | 9 5/8 | 2 3/4 | 1 | 2 3/4 | 1 9/32 | 4 1/8 | 4 1/8 | 5 5/16 | 7 7/8 | 7 3/8 | 5/8 | 2 1/8 | 1 11/16 | LER28 | LER20 | 22309; 1309 | ||
| SAF310 | 110 | 10 5/8 | 2 3/4 | 1 1/8 | 3 | 1 3/8 | 4 1/2 | 4 1/2 | 5 13/16 | 9 | 7 3/4 | 5/8 | 2 3/8 | 1 7/8 | LER35 | LER23 | 22310; 1310 | ||
| SAF311 | 120 | 11 | 3 1/8 | 1 3/16 | 3 1/4 | 1 7/16 | 4 3/4 | 4 3/4 | 6 3/16 | 9 1/2 | 8 1/8 | 2 | 5/8 | 1/2 | 2 9/16 | 2 1/16 | LER40 | LER27 | 22311; 1311 |
| SAF313 | 140 | 13 | 31/2 | 1 1/4 | 3 1/2 | 1 13/32 | 5 1/4 | 5 5/16 | 6 15/16 | 11 | 9 5/8 | 2 2 1/8 | 3/4 | 5/8 | 3 1/16 | 2 7/16 | LER55 | LER37 | 22313; 1313 |
| SAF315 | 160 | 13 3/4 | 3 7/8 | 1 5/16 | 4 | 1 19/32 | 5 7/8 | 5 7/8 | 7 13/16 | 11 5/8 | 10 3/8 | 2 2 1/8 | 3/4 | 5/8 | 3 7/16 | 2 13/16 | LER79 | LER46 | 22315; 1315 |
| SAF316 | 170 | 14 1/4 | 3 7/8 | 1 5/16 | 4 1/4 | 1 11/16 | 6 1/8 | 6 1/2 | 8 1/4 | 12 5/8 | 10 5/8 | 2 2 1/8 | 3/4 | 5/8 | 3 5/8 | 3 | LER84 | LER60 | 22316; 1316 |
| SAF317 | 180 | 15 1/4 | 4 3/8 | 1 3/4 | 4 1/2 | 1 3/4 | 6 1/2 | 6 5/8 | 8 3/4 | 13 1/8 | 11 5/8 | 2 3/8 | 7/8 | 3/4 | 3 15/16 | 3 3/16 | LER109 | LER188 | 22317; 1317 |
| SAF318 | 190 | 15 1/2 | 4 3/8 | 2 | 4 3/4 | 1 7/8 | 6 5/8 | 6 3/4 | 9 3/16 | 13 1/2 | 12 | 2 1/4 | 3/4 | 4 1/8 | 3 3/8 | LER112 | LER191 | 22318; 1318 | |
| SAF320 | 215 | 16 1/2 | 4 3/4 | 2 1/8 | 5 1/4 | 2 1/32 | 701/8 | 7 3/8 | 10 1/4 | 14 1/2 | 13 1/4 | 2 3/4 | 3/4 | 4 1/2 | 3 13/16 | LER118 | LER106 | 22320 | |
| SAF322 | 240 | 18 3/8 | 5 1/8 | 2 3/8 | 6 | 2 13/32 | 7 3/4 | 8 | 11 1/2 | 16 | 14 5/8 | 3 1/4 | 7/8 | 4 7/8 | 4 3/16 | LER121 | LER113 | 22322 | |
| SAF324 | 260 | 21 1/4 | 6 1/4 | 2 1/2 | 6 5/16 | 2 3/8 | 8 1/8 | 8 3/8 | 12 1/2 | 18 1/4 | 17 | 3 3/4 | 1 | 5 5/16 | 4 9/16 | LER127 | LER119 | 22324 | |
| SAF326 | 280 | 22 | 6 1/4 | 2 5/8 | 6 11/16 | 2 7/16 | 8 1/2 | 8 3/4 | 13 5/16 | 19 1/4 | 17 3/8 | 3 3/4 | 1 | 5 7/8 | 4 15/16 | LER136 | LER122 | 22326 | |
| SAF328 | 300 | 24 3/4 | 6 3/4 | 2 3/4 | 7 1/16 | 2 9/16 | 9 1/4 | 9 1/2 | 14 3/16 | 21 5/8 | 19 3/8 | 4 1/4 | 1 | 6 1/4 | 5 5/16 | LER144 | LER127 | 22328 | |
| SAF330 | 320 | 26 3/4 | 7 1/8 | 3 | 7 1/2 | 2 5/8 | 9 5/8 | 9 7/8 | 14 7/8 | 23 5/8 | 20 7/8 | 4 5/8 | 1 | 6 5/8 | 5 3/4 | LER151 | LER134 | 22330 | |
| SAF332 | 340 | 28 | 7 1/2 | 3 1/8 | 7 7/8 | 2 11/16 | 10 1/2 | 10 3/4 | 15 11/16 | 24 3/8 | 21 5/8 | 4 1/2 | 1 1/4 | 7 | 6 1/16 | LER156 | LER142 | 22332 | |
| SAF334 | 360 | 29 1/2 | 8 | 3 3/8 | 8 1/4 | 2 3/4 | 11 | 11 1/4 | 16 1/2 | 25 | 22 1/2 | 5 | 1 1/4 | 7 7/16 | 6 7/16 | LER161 | LER148 | 22334 | |
| SAF336 | 380 | 31 1/4 | 8 1/4 | 3 1/2 | 8 7/8 | 3 3/8 | 11 1/8 | 11 3/8 | 17 3/4 | 26 5/8 | 24 | 5 1/4 | 1 1/4 | 7 13/16 | 6 7/8 | LER165 | LER154 | 22336 | |
| SAF338 | 400 | 32 3/4 | 8 3/4 | 3 3/4 | 9 1/2 | 3 3/8 | 11 3/4 | 12 | 18 5/8 | 27 7/8 | 24 3/4 | 5 1/4 | 1 1/2 | 8 3/8 | 7 1/4 | LER171 | LER160 | 22338 | |
| SAF340 | 420 | 34 1/4 | 9 | 4 | 9 7/8 | 3 3/4 | 11 7/8 | 12 1/16 | 20 | 29 1/2 | 26 1/4 | 5 1/2 | 1 1/2 | 8 3/4 | 7 5/8 | LER175 | LER164 | 22340 | |
Findbearing.com supplies high quality SAF300 split housing.
Note:
– SAF320 and above sizes are supplied with eye bolt.
