SAF200 bearing housing catalogue list

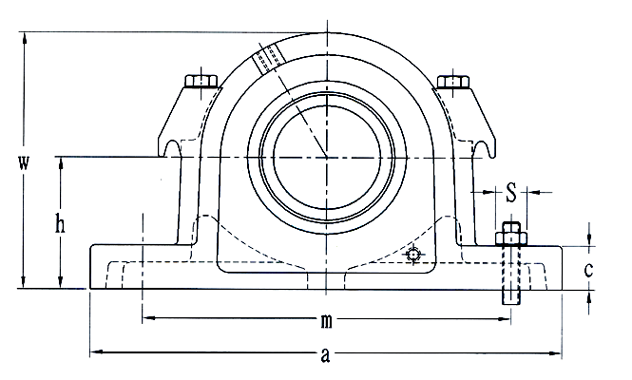

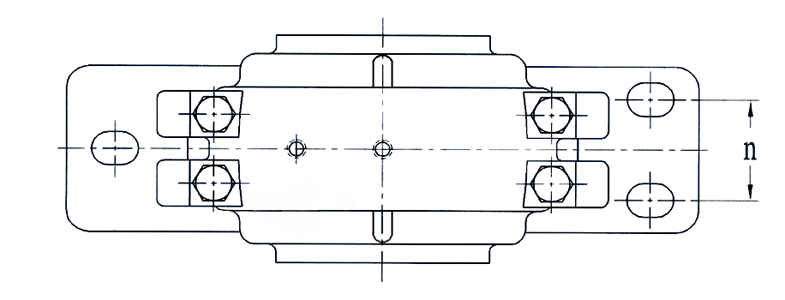

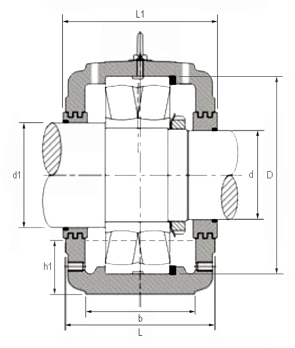

| Dimension | s | Shaft Dia. | TS ring | ||||||||||||||||
| SPEC.1 | D | a | b | c | h | h1 | L | L1 | w | m(max) | m(min) | n | MS1 | MS2 | d1 | d | d1 | d | Bearing No. |
| SAF216 | 140 | 13 | 3 1/2 | 1 3/16 | 3 1/2 | 1 1/4 | 5 1/4 | 5 3/8 | 6 7/8 | 11 | 9 5/8 | 2 1/8 | 3/4 | 5/8 | 3 5/8 | 3 | LER82 | LER54 | 222216; 1216; 2216 |
| SAF217 | 150 | 13 | 3 1/2 | 1 1/4 | 3 3/4 | 1 3/8 | 5 1/4 | 5 3/8 | 7 5/16 | 11 | 9 7/8 | 2 1/8 | 3/4 | 5/8 | 3 15/16 | 3 3/16 | LER89 | LER63 | 222217; 1217; 2217 |
| SAF218 | 160 | 13 3/4 | 3 7/8 | 1 5/16 | 4 | 1 1/2 | 5 7/8 | 6 1/4 | 7 3/4 | 11 5/8 | 10 3/8 | 2 1/8 | 3/4 | 5/8 | 4 1/8 | 3 3/8 | LER96 | LER72 | 222218; 1218; 2218 |
| SAF220 | 180 | 15 1/4 | 4 3/8 | 1 3/4 | 4 1/2 | 1 21/32 | 5 13/16 | 6 | 8 3/8 | 13 1/8 | 11 5/8 | 2 3/8 | 7/8 | 3/4 | 4 1/2 | 3 13/16 | LER118 | LER106 | 22220; 1220 |
| SAF222 | 200 | 16 1/2 | 4 3/4 | 2 | 4 15/16 | 1 25/32 | 6 7/16 | 6 1/2 | 9 5/8 | 14 1/2 | 12 5/8 | 2 3/4 | 3/4 | 4 7/8 | 4 3/16 | LER121 | LER113 | 22222; 1222 | |
| SAF224 | 215 | 16 1/2 | 4 3/4 | 2 1/8 | 5 1/4 | 1 27/32 | 7 1/8 | 7 3/8 | 10 1/4 | 14 1/2 | 13 1/4 | 2 3/4 | 3/4 | 5 5/16 | 4 9/16 | LER127 | LER119 | 22224 | |
| SAF226 | 230 | 18 3/8 | 5 1/8 | 2 3/8 | 6 | 2 11/32 | 7 3/4 | 8 | 11 1/2 | 16 | 14 5/8 | 3 1/4 | 7/8 | 5 7/8 | 4 15/16 | LER136 | LER122 | 22226 | |
| SAF228 | 250 | 20 1/8 | 5 7/8 | 2 3/8 | 6 | 2 1/32 | 7 3/8 | 7 5/8 | 11 3/4 | 17 1/8 | 16 | 3 3/8 | 1 | 6 1/4 | 5 5/16 | LER144 | LER127 | 22228 | |
| SAF230 | 270 | 21 1/4 | 6 1/4 | 2 1/2 | 6 5/16 | 2 | 8 1/8 | 8 3/8 | 12 1/2 | 18 1/4 | 17 | 3 3/4 | 1 | 6 5/8 | 5 3/4 | LER151 | LER134 | 22230 | |
| SAF232 | 290 | 22 | 6 1/4 | 2 5/8 | 6 11/16 | 2 1/16 | 8 1/2 | 8 3/4 | 13 5/16 | 19 1/4 | 17 3/8 | 3 3/4 | 1 | 7 | 6 1/16 | LER156 | LER142 | 22232 | |
| SAF234 | 310 | 24 3/4 | 6 3/4 | 2 3/4 | 7 1/16 | 2 5/32 | 9 1/4 | 9 5/8 | 14 3/16 | 21 5/8 | 19 3/8 | 4 1/4 | 1 | 7 7/16 | 6 7/16 | LER161 | LER148 | 22234 | |
| SAF236 | 320 | 26 3/4 | 7 1/8 | 3 | 7 1/2 | 2 3/8 | 9 5/8 | 10 | 14 7/8 | 23 5/8 | 20 7/8 | 4 5/8 | 1 | 7 13/16 | 6 7/8 | LER165 | LER154 | 22236 | |
| SAF238 | 340 | 28 | 7 1/2 | 3 1/8 | 7 7/8 | 2 7/16 | 10 1/2 | 10 3/4 | 15 11/16 | 24 3/8 | 21 5/8 | 4 1/2 | 1 1/4 | 8 3/8 | 7 1/4 | LER171 | LER160 | 22238 | |
| SAF240 | 360 | 29 1/2 | 8 | 3 3/8 | 8 1/4 | 2 15/32 | 11 | 11 1/3 | 16 1/2 | 25 | 22 1/2 | 5 | 1 1/4 | 8 3/4 | 7 5/8 | LER175 | LER164 | 22240 | |
| SAF244 | 400 | 32 3/4 | 8 3/4 | 3 3/4 | 9 1/2 | 3 1/8 | 11 3/4 | 12 | 18 5/8 | 27 7/8 | 24 3/4 | 5 1/4 | 1 1/2 | 9 9/18 | 8 5/16 | LER179 | LER170 | 22244 | |
Findbearing.com supplies high quality SAF200 split housing.
Note:
– Details of the appropriate bearing, associated adapter sleeve and the locating ring are presented in subpages. Please click to enter each detail type.
– SAF224 and above sizes are supplied with eye bolt.
