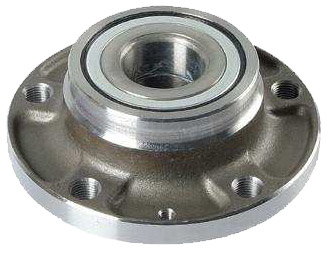

TGB40189S04 hub unit catalogue page.

 |
|
Dimensions
| d |
30 |
mm |
| F |
120 |
mm |
| B |
52 |
mm |
| E1 |
58 |
mm |
| E2 |
59 |
mm |
| M |
53 |
mm |
| G |
98 |
mm |
| I |
54.5 |
mm |
| H |
15.5 |
mm |
| J |
14.5 |
mm |
|
Request for a price quotation, please enter Reference code.[TGB40189S04-Q ]
Ask for drawing/sample or other details, please enter Reference code.[TGB40189S04-Q ]
Note: The document/information will be forwarded to your email directly within 16 work hours.
