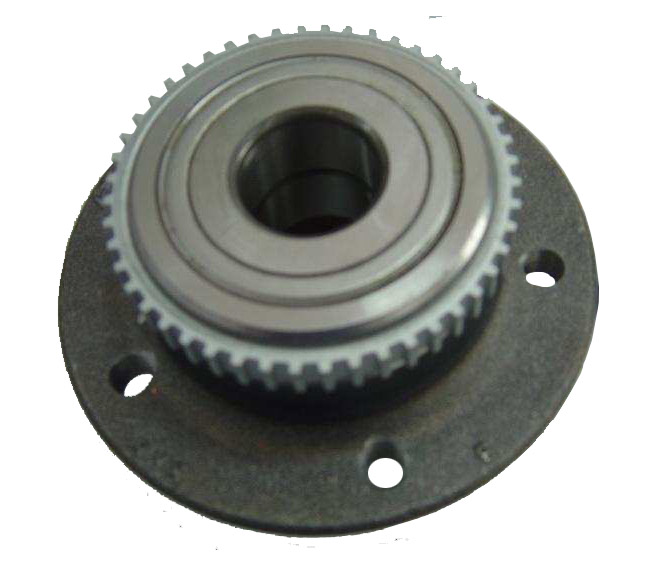

77431795 hub unit catalogue page.

 |
|
Dimensions
| d |
30 |
mm |
| F |
135.5 |
mm |
| B |
42 |
mm |
| E1 |
65 |
mm |
| E2 |
68 |
mm |
| M |
59 |
mm |
| G |
108 |
mm |
| K |
78 |
mm |
| I |
52 |
mm |
| H |
19 |
mm |
| J |
13.5 |
mm |
|
Request for a price quotation, please enter Reference code.[77431795-Q ]
Ask for drawing/sample or other details, please enter Reference code.[77431795-Q ]
Note: The document/information will be forwarded to your email directly within 16 work hours.
